Maytag CWG3100AAB - 24"Gas Single Oven Datasheet

www.dexpress.com
This Data Sheet Includes Information On
Maytag
• Product Model Number (s):
24" Single Gas Wall Oven with Broiler:
CWG3100AAB and CWG3100AAE
• Dimensions (Actual Size)
Minimum cabinet width:
Minimum cutout location from floor :
Minimum cabinet depth:
Distance from face of cabinet to
outer edge of open doors(door swing):
Distance from face of cabinet to
front of closed door handle:
Overall unit width:
Overall unit height:
Penetration into cabinet:
Distance from opening floor to centerline of
gas and electrical: 2"
Distance (left) from opening centerline to
centerline of gas:
Distance (right) from opening centerline
to centerline of electrical: 5"
Oven overlap distances when using
cutout dimensions listed above:
Top overlap:
Bottom overlap:
Right side overlap:
Left side overlap: 15/16"
• Additional Information
• Fits in standard 24" cabinet.
• Secure oven to cabinet through holes provided in trim.
(6 screws shipped with unit)
• Complete floor in oven opening is recommended to
prevent unusual drafts.
• Electrical requirements: 120 volts 60 Hz protected by
a 15 amp fuse or compatible circuit breaker. Minimum
wire size is 14 gauge. Copper wire only. Unit is
supplied with a 40" long power cord having a 3-prong
grounding pug which exits from the cooktop in the
middle of the right. A grounded and polarized 3-prong
receptacle should be made available. Individual branch
circuit serving the cooktop is recommended.
See page 2 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2002.
• NEVER reuse Data Sheets. Data Sheets are subject to change without
notice. Dimension Express is a FREE service bureau and is updated daily,
it makes far more sense to spend the time necessary to request new Data
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
DIMENSION EXPRESS
•
•
24"
Cutout width: 22"
Cutout height: 38"
14"
24"
20 3/8"
1 5/8"
23 7/8"
39 1/4"
22 5/8"
4"
1 1/4"
0"
15/16"
•
169
Cabinet Opening
(not to scale)
Provide hole in this
area for connecting
to 1/2" dia. pipe fitting
2"
22 5/8"
1 5/8"
• Call Dimension Express if you have any questions at (775) 833-3633 •
• Always refer to a current Code at a Glance or manufacturer directory •
• Data Sheet codes change on the first of odd numbered months at 12:01am •
Fax on Demand (775) 833-3600
24"
22"
120V grounded
outlet. Outlet
must be flush.
5"
L C
4"

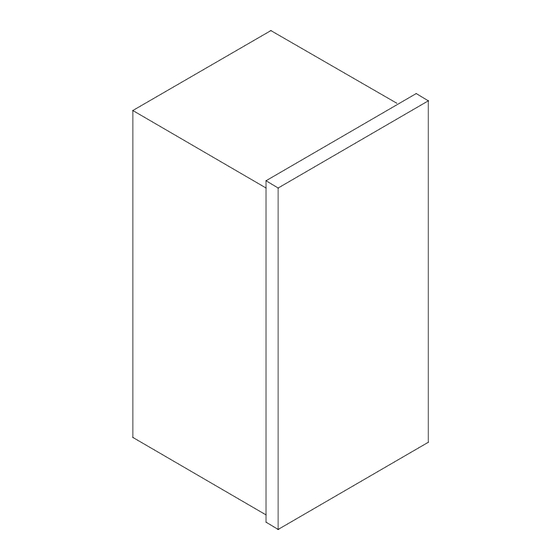

Overall Dimensions
(not to scale)
39 1/4"
23 7/8"
BN352 • A169B149 • • 032603 • 95653 • 59368
24"
38"
14"
