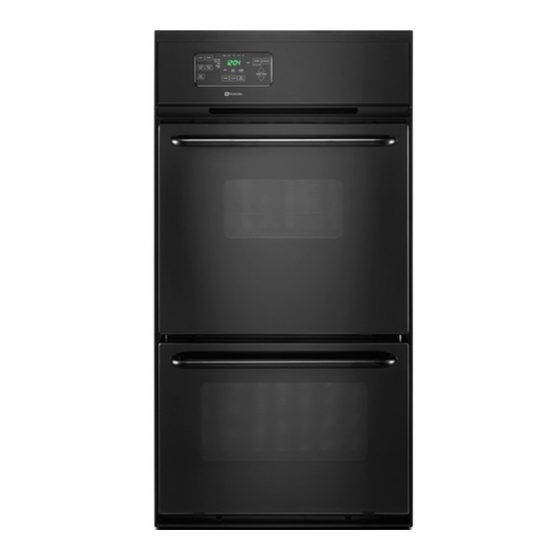

Maytag CWG3600AA Product Dimensions

24" (61 cm) gas single and double built-in oven
Hide thumbs

Advertisement

PRODUCT MODEL SERIES
CWG3600AA

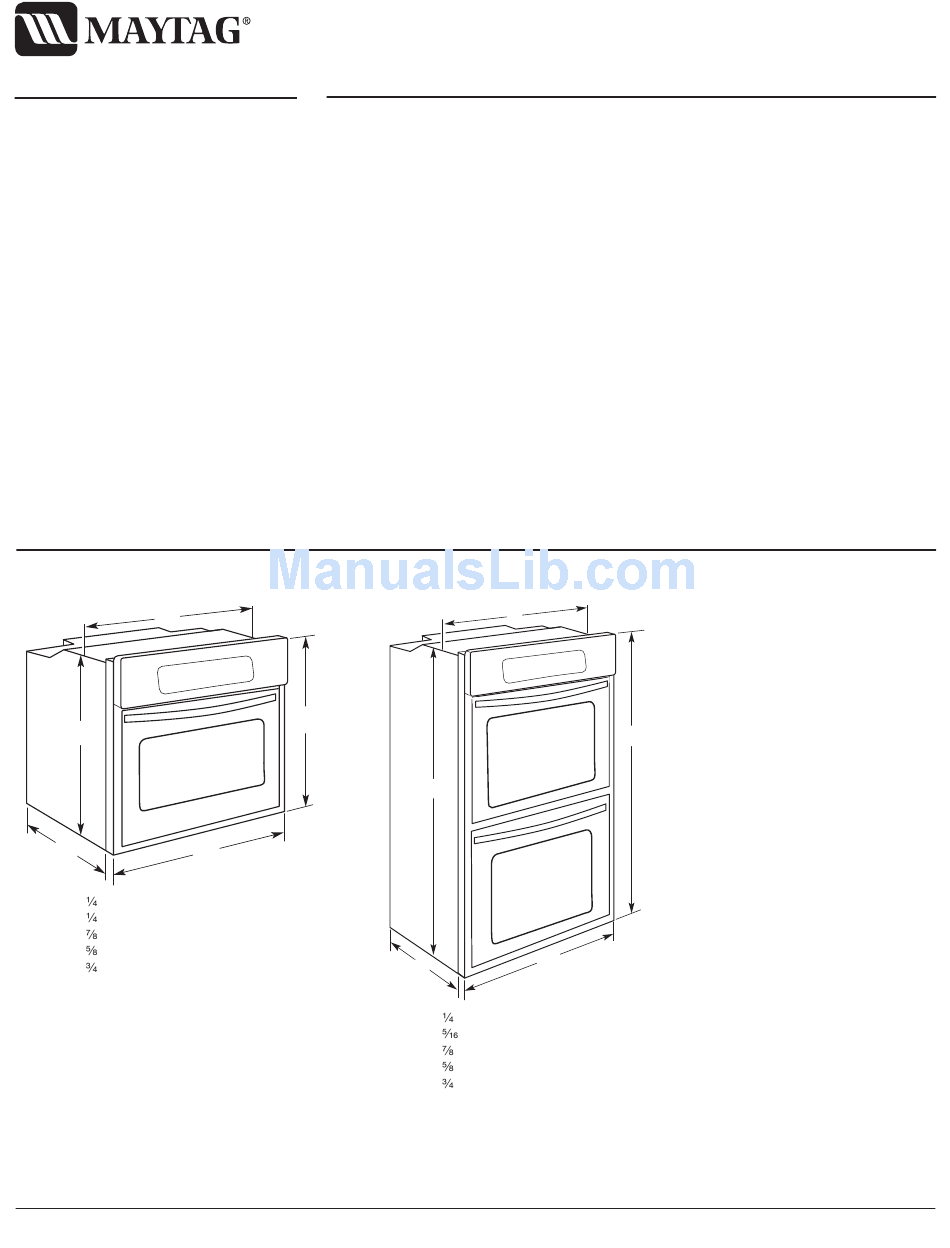

PRODUCT DIMENSIONS
Single Oven
A
E
D
A. 22 " (56.8 cm) max. recessed width
B. 39 " (99.7 cm) max. overall height
C. 23 " (60.6 cm) overall width
D. 22 " (57.5 cm) max. recessed depth
E. 37 " (95.9 cm) recessed height
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
24" (61 CM) GAS SINGLE AND DOUBLE BUILT-IN OVEN
REQUIREMENTS
Electrical: A 120-volt, 60-Hz, AC-only, 15-amp
fused, electrical circuit is required. A time-delay
fuse or circuit breaker is also recommended. It is
recommended that a separate circuit serving only
this oven be provided.
Electronic ignition systems operate within wide
voltage limits, but proper grounding and polarity
are necessary. Check that the outlet provides
120-volt power and is correctly grounded.
The wiring diagram is located in the upper
control compartment in a clear plastic bag.
Gas: This oven is factory set for use with
Natural gas. The model/serial rating plate located
behind the broiler drawer on the right-hand side
oven front frame has information on the types of
gas that can be used. If the types of gas listed do
not include the type of gas available, check with
the local gas supplier.
Gas Supply Line: Provide a gas supply line of
3/4" (1.9 cm) rigid pipe to the oven location. A
smaller size pipe on longer runs may result in
insufficient gas supply. Pipe-joint compounds
B
C
Double Oven
A
E
C
D
A. 22 " (56.8 cm) max. recessed width
B. 46
" (117.6 cm) max. overall height
C. 23 " (60.6 cm) overall width
D. 22 " (57.5 cm) max. recessed depth
E. 44 " (113.4 cm) recessed height
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
that resist the action of LP gas must be used. Do
not use TEFLON®† tape. With LP gas, piping or
tubing size can be 1/2" (1.3 cm) minimum.
Usually, LP gas suppliers determine the size and
materials used in the system.
Flexible metal appliance connector: If
local codes permit, a new CSA design-certified, 4
to 5 ft (122 to 152.4 cm) long, 1/2" (1.3 cm) or
3/4" (1.9 cm) I.D., flexible metal appliance
connector may be used for connecting oven to
the gas supply line.
A 1/2" (1.3 cm) male pipe thread is needed for
connection to the female pipe threads of the inlet
to the appliance pressure regulator.
Must include a shutoff valve: The supply
line must be equipped with a manual shutoff
valve. This valve should be located in the same
room but external to the oven. It should be in a
location that allows ease of opening and closing.
Do not block access to shutoff valve. The valve is
for turning on or shutting off gas to the oven.
†®TEFLON is a registered trademark of E.I. Du Pont De
Nemours and Company.
B
Page 1 of 2
Ref. W10203509
12-02-08
