Summary of Contents for BOXLIGHT Broad View

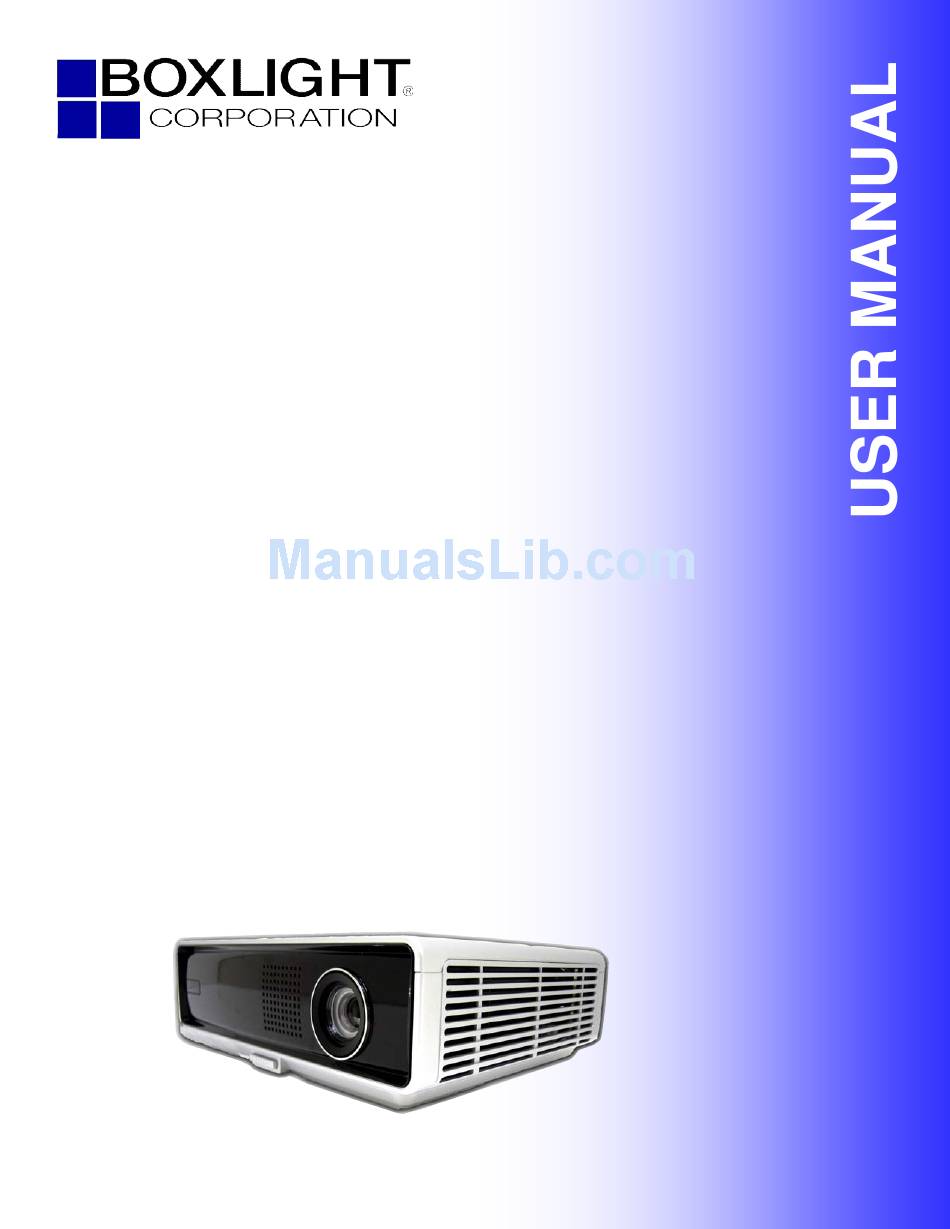

- Page 1 19462 Powder Hill Place Poulsbo, WA 98370 800.762.5757 360.779.7901 www.boxlight.com Broad View...
- Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright January, 2006 Disclaimer The information in this document is subject to change without notice.
- Page 3 ® — ’ ® — ’ ® — ’ Important Safety Information Congratulations on purchasing the DLP® projector! Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.
- Page 4 Power Safety Only use the supplied power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. Remove the batteries from the remote control when storing or not in use for a prolonged period. Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly.
- Page 5 ® — ’ ® — ’ ® — ’ Main Features • Lightweight unit, easy to pack away and transport • Compatible with all major video standards including NTSC, PAL, and SECAM • A high brightness rating allows for presentations in daylight or in lit rooms •...
-
Page 6: Table Of Contents
Table of contents GETTING STARTED ................................1 ................................1 ACKING HECKLIST ............................... 2 IEWS OF ROJECTOR ARTS Front-right View ................................2 Top view—On-screen Display (OSD) buttons and LEDs ....................3 Rear view ..................................4 Bottom view..................................5 ..............................6 EMOTE ONTROL ARTS .......................... - Page 7 ® — ’ ® — ’ ® — ’ ................................ 39 IMING ABLE ..............................41 ROJECTOR IMENSIONS REGULATORY COMPLIANCE ............................. 42 FCC W .................................. 42 ARNING .................................... 42 ANADA ..............................42 AFETY ERTIFICATIONS EN 55022 W ................................. 42 ARNING — vi —...
-
Page 8: Getting Started
ETTING TARTED Packing Checklist Carefully unpack the projector and check that the following items are included: DLP® PROJECTOR EMOTE CONTROL WITH TWO BATTERIES OWER CORD CABLE VIDEO CABLE UDIO CABLE OMPUTER CABLE -RCA (DVI-DB15) MINI JACK CD-ROM (T ’ S MANUAL UICK START GUIDE ARRYING CASE Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. -
Page 9: Views Of Projector Parts

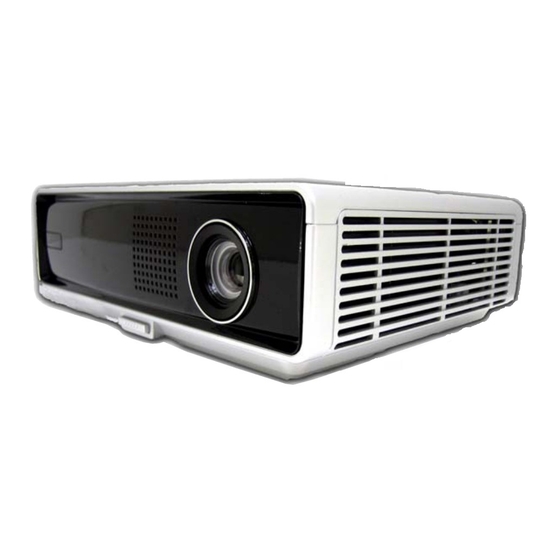

® — ’ ® — ’ ® — ’ Views of Projector Parts Front-right View ABEL ESCRIPTION EE PAGE Front IR receiver Receiver for IR signal from remote control Height-adjuster button Push to release height adjuster Height adjuster Adjusts level of projector Lens Adjust focus/zoom on top opening Focus... -
Page 10: Top View-On-Screen Display (Osd) Buttons And Leds
– ’ – ’ – ’ Top view—On-screen Display (OSD) buttons and LEDs KEYS TONE READY AUTO SOURCE M ENU POWER POWER KEYS TONE ABEL ESCRIPTION EE PAGE Source/ Detects the input device Left cursor Navigates and changes settings in the OSD Menu Opens and exits the OSD Keystone/... -
Page 11: Rear View
® — ’ ® — ’ ® — ’ Rear view ABEL ESCRIPTION EE PAGE Power Connect the supplied power cord DVI-I Connect the computer cable (supplied) from a computer Video Connect a composite video cable from a video device S-video Connect the S-video cable (supplied) from a video device Audio-in... -
Page 12: Bottom View
– ’ – ’ – ’ Bottom view ABEL ESCRIPTION EE PAGE Ceiling support Contact your dealer for information on mounting the projector on a ceiling. holes Projection lamp Remove when changing lamp cover Caution: For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 6 mm (1/4 inch). -
Page 13: Remote Control Parts
® — ’ ® — ’ ® — ’ Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens. - Page 14 – ’ – ’ – ’ ABEL ESCRIPTION EE PAGE Up arrow when connected through USB to a PC Right Right arrow when connected through USB to a PC Down Down arrow when connected through USB to a PC Page Down Page down when connected through USB to a PC Up cursor Navigates and changes settings in the OSD...
-
Page 15: Remote Control Operating Range
® — ’ ® — ’ ® — ’ Note: The remote control can only interface with a computer when connected to the computer through a USB cable connection. The computer cable connects a computer to the projector for display purposes only. -
Page 16: Setup And Operation
ETUP AND PERATION Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the supplied batteries taking note of the polarity (+/-) as shown here. Replace the cover. Caution: 1. -
Page 17: Connecting Input Devices
® — ’ ® — ’ ® — ’ Connecting Input Devices A PC or notebook computer as well as video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. -
Page 18: Starting And Shutting Down The Projector
– ’ – ’ – ’ Starting and Shutting down the Projector Connect the power cord to the projector. Connect the other end to a wall outlet. The POWER and READY LEDs on the projector turn on. Turn on the connected devices. Ensure the Ready LED is on a steady (not flashing) orange and then press the Power button to turn on the projector. -
Page 19: Setting An Access Password (Security Lock)
® — ’ ® — ’ ® — ’ Setting an Access Password (Security Lock) You can use the four cursor (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See “Navigating the OSD”... -
Page 20: Adjusting The Projector Level
– ’ – ’ – ’ Adjusting the Projector Level Take note of the following when setting up the projector: • The projector table or stand should be level and sturdy. • Position the projector so that it is perpendicular to the screen. •... -
Page 21: Adjusting The Zoom, Focus And Keystone
® — ’ ® — ’ ® — ’ Adjusting the Zoom, Focus and Keystone Use the Image-focus control (on the projector only) to sharpen the projected image Use the Image-zoom control (on the projector only) to resize the projected image and screen size Use the Keystone buttons (on the projector or the... -
Page 22: On-Screen Display (Osd) Menu Settings
(OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. -
Page 23: Setting The Osd Language
® — ’ ® — ’ ® — ’ Setting the OSD Language You may want to reference the OSD on your projector while reading this section. Set the OSD language to your preference before continuing. (The default language is English.) 1. -
Page 24: Main Menu
– ’ – ’ – ’ Main Menu Press the Menu button to open the OSD menu. Press the cursor button to move to the Main menu. Press the cursor button to move up and down in the Main menu. Press to change values for settings, and then press Enter or to confirm the new setting. -
Page 25: Main Menu Functions Available For Connected Source
® — ’ ® — ’ ® — ’ ESCRIPTION EFAULT Reset Resets all Main settings to default values — Main Menu Functions Available for Connected Source Function Component Video Composite Video S-video Brightness Contrast Sharpness Color Temp Color Saturation Color Tint Gamma Color Space... -
Page 26: Setup Menu
– ’ – ’ – ’ Setup Menu Press the Menu button to open the OSD menu. Press the cursor button to move to the Setup menu. Press the cursor button to move up and down in the Setup menu. Press to change values for settings, and then press Enter or to confirm the new setting. -
Page 27: Advance Feature
® — ’ ® — ’ ® — ’ Function Component Video Composite Video S-video Advance Feature Reset O = available to video source Advance Feature Press the Menu button to open the OSD menu. Press to move to the Setup menu. Press move to the Advance Feature menu and then press Enter or . - Page 28 – ’ – ’ – ’ ESCRIPTION EFAULT Security Lock Press the cursor button to enable or disable Security Lock. When you — enable Security Lock a Register Password dialog box appears: You can only use the cursor buttons in the password fields. Press the cursor buttons in any order and confirm to set the password.
-
Page 29: User Color
® — ’ ® — ’ ® — ’ User Color Press the Menu button to open the OSD menu. Press to move to the Setup menu. Press move to the Advance Feature menu and then press Enter or . Press to move to the User Color menu and then press Enter or . -
Page 30: Config Menu
– ’ – ’ – ’ Config Menu Press the Menu button to open the Main menu. Press the cursor button to move to the Config menu. Press the cursor button to move up and down in the Config menu. Press to change values for settings, and then press Enter or to confirm the new setting. -
Page 31: Utility Menu
® — ’ ® — ’ ® — ’ Utility Menu Press the Menu button to open the Main menu. Press the cursor button to move to the Utility menu. Press the cursor button to move up and down in the Utility menu. Press to change values for settings, and then press Enter or to confirm the new setting. -
Page 32: Utility Menu Functions Available For Connected Source
– ’ – ’ – ’ ESCRIPTION EFAULT Noise Reduction Press the cursor button to reduce noise for sources of Video , S-Video , 480i and 576i Reset Resets Video Type, Video AGC, Projection, and Noise — Reduction to default values Utility Menu Functions Available for Connected Source Function Component Video... -
Page 33: Language Menu
® — ’ ® — ’ ® — ’ Language Menu Press the Menu button to open the Main menu. Press the cursor button to move to the Language menu. Press the cursor button to move up and down in the Language menu. Press Enter or to confirm the new setting. -
Page 34: Status Menu
– ’ – ’ – ’ Status Menu Press the Menu button to open the Main menu. Press the cursor button to move to the Status menu. Press the cursor button to move up and down in the Status menu. ESCRIPTION EFAULT Video... -
Page 35: Maintenance And Security
AINTENANCE AND ECURITY Replacing the Projection Lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Important: 1. The lamp contains a certain amount of mercury and should be disposed of according to local ordinance regulations. - Page 36 – ’ – ’ – ’ Remove the two screws from the lamp module (A). Lift the module handle up (B). Pull firmly on the module handle to remove the lamp module. Reverse steps 1 to 5 to install the new lamp module. –...
-
Page 37: Resetting The Lamp
® — ’ ® — ’ ® — ’ Resetting the Lamp After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following: Press the Menu button to open the Main menu. Press the cursor button to move to the Status menu. -
Page 38: Cleaning The Lens
– ’ – ’ – ’ Cleaning the Lens You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens. 1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.) 2. -
Page 39: Troubleshooting
ROUBLESHOOTING Common problems and solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. -
Page 40: Led Error Messages
– ’ – ’ – ’ LED Error Messages TATUS ESCRIPTION NUMBER OF FLASHES Ready Flashing Lamp not ready—do not press the power button T1 sensor error / Ballast Fan error / Lamp off(Option) Burner Fan error Ballast UART error / Lamp Fan error Power Fan error Power Environment Task Created Fail... -
Page 41: Lamp Problems
® — ’ ® — ’ ® — ’ 2. To ensure the problem is not caused by a connected PC’s video card, connect to another computer. Problem: The image is flat with no contrast Adjust the Contrast setting on the Main menu of the OSD. Problem: The color of the projected image does not match the source image. -
Page 42: Having The Projector Serviced
– ’ – ’ – ’ Having the Projector Serviced If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. -
Page 43: Specifications
PECIFICATIONS Specifications Display type TI DMD 0.65”, 720P-WXGAx1, LVDS DLP® with DDP 3020 ASIC controller Resolution WXGA 1280 x 768 native Color 16.7 Million (30-bits/pixel) Bandwidth Up to 170 MHz Weight 2.0 kg (4.4 lbs.) Projection distance 1.5 to 7 meters (59 to 276 inches) Projection screen size 0.8 to 4.39 meters (31.51 to 172.73 inches) Brightness uniformity... -
Page 44: Input/Output Connectors
– ’ – ’ – ’ Audio speaker 1W mono speaker Input/output connectors DVI-I Video Composite video (RCAx1) S-video (Mini-DIN) Audio-in Mini-jack Audio-out Mini-jack Security Kensington slot – 37 –... -
Page 45: Projection Distance V.s. Projection Size
® — ’ ® — ’ ® — ’ Projection Distance V.S. Projection Size L Projection Distance 0.65” WXGA Max. Screen Size Min. Screen Size Projection Width Height Width Height Diagonal Diagonal Distance L 1.00 m 0.63 m 0.55 m 0.31 m 0.53 m 0.47 m... -
Page 46: Timing Mode Table
– ’ – ’ – ’ Timing Mode Table The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector. Frequency H. Frequency V. Signal Resolution Video Digital Analog (KHz) (Hz) NTSC 15.734 60.0 Ο... - Page 47 ® — ’ ® — ’ ® — ’ 1280 x 768 47.4 ○ ○ 1600 x1200 75.0 ○ ○ Apple Macintosh 640 x 480 35.0 66.7 Ο Ο 832 x 624 49.7 74.5 Ο Ο 1024 x 768 60.2 74.9 Ο...
-
Page 48: P Rojector D Imensions
– ’ – ’ – ’ Projector Dimensions 25.9cm (10.2 inches) – 41 –... -
Page 49: Fcc W Arning
EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
