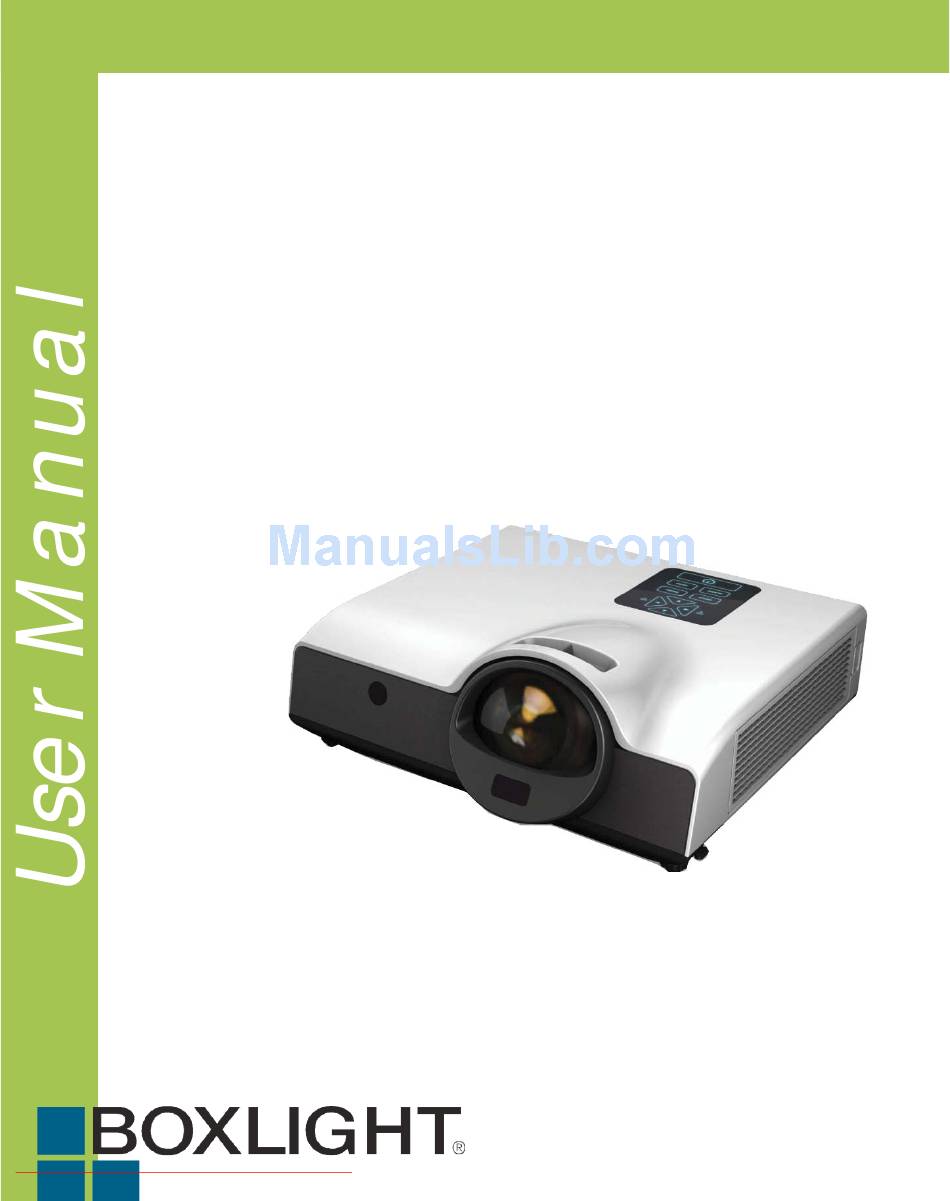

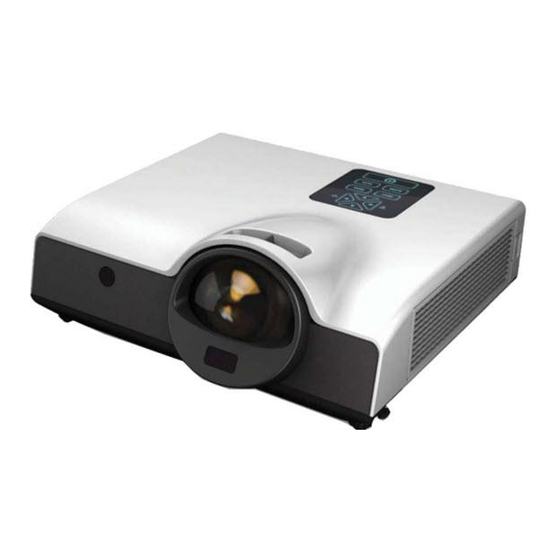

- Page 1 BL WX25NU / X25NU Series 151 NE State Hwy 300, Ste A Belfair, WA 98528 360.464.2119 Downloaded From projector-manual.com Boxlight Manuals www.boxlight.com...
-
Page 2: Contents
Board and User) 9. Built-in 8W speaker 10. Logo capture 11. Image freeze function 12. Digital zoom adjustment The content of this manual is subject to change without previous notice. All rights reserved. Issue of edition 1002.05_01 Downloaded From projector-manual.com Boxlight Manuals... -
Page 3: Table Of Contents
Picture Menu (PC Mode) ..................24 Audio Menu (PC Mode) ..................25 Setting Menu (PC Mode) ..................26 MENU (Video Mode) ....................27 Picture Menu (Video Mode) ..................27 Audio Menu (Video Mode) ..................28 Setting Menu (Video Mode) ..................29 Downloaded From projector-manual.com Boxlight Manuals... -
Page 4: Contents
Air Filter / Replacing the Air Filter ................ 53 Lamp / Replacing New Lamp ................. 54 Other Care / Cleaning the Lens ................56 Troubleshooting .......................57 Indicator ........................57 Error For Machine Defects ..................58 List of Supported Monitor Displays ............... 60 Downloaded From projector-manual.com Boxlight Manuals... -
Page 5: Contents Of Your Box
If any items missing, contact your dealer. 1. Projector 2. Quick Start Guide 3. Owner’s Manual CD 4.Remote control LASER INDICATOR POWER INPUT MENU LASER MUTE MOUSE-L MOUSE-R AUTO BLANK 4. Power cord 5. Computer cable USB Cable (Optional) Downloaded From projector-manual.com Boxlight Manuals... -
Page 6: Safety Instructions
NO SIDEWARD - Do not use this projector if there is no image or sound, or if the sound is distorted. - Do not place this projector in a container containing liquid. Downloaded From projector-manual.com Boxlight Manuals... -
Page 7: Safety Labels
Safety Labels Safety labels are used on or within the projector to alert you to items or areas requiring your attention. WARNING LABEL EMI LABEL LAMP DOOR WARNING LABEL Downloaded From projector-manual.com Boxlight Manuals... -
Page 8: Part Names
Attach when not using to protect the lens from becoming dirty or damaged Focus ring Use the focus ring to focus the projector image. Rotate the focus ring until the image is clear. Lamp door The lamp unit is inside Outlet ventilation Downloaded From projector-manual.com Boxlight Manuals... -
Page 9: Power Indicator
Blank the projected image. The time of LAMP INDICATOR 1 15 Blank mode can be set in 15 minutes, 30 minutes or 60 minutes. The projector will BIndicate a status in the projector. shut down automatically after passing each set time. Downloaded From projector-manual.com Boxlight Manuals... -
Page 10: Rear
Security System. MicroSaver is a registered RCA type corresponds to video input. trademark of Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc. Please see page 37 Network Control Application for details. Downloaded From projector-manual.com Boxlight Manuals... -
Page 11: Setting Up
92.5 29.7 100.0 12.2 106.2 33.9 113.0 13.7 120.0 38.2 126.0 15.2 94.3 126.0 40.0 Distance(cm) Image size(inch) Offset (cm) When installed against a wall, leave about 20cm (7.9in.) between the projector and the wall. Downloaded From projector-manual.com Boxlight Manuals... -
Page 12: Power On / Off
The MAINS plug or an appliance coupler shall remain readily operable. CAUTION Do not turn off the AC power for 60 seconds after the lamp is turned on. Doing so could cause premature lamp failure. Downloaded From projector-manual.com Boxlight Manuals... -
Page 13: Setting Up The Projector
The projector supports the following four different projection methods. 1. Front projection 3. Rear ceiling projection 2. Rear projection 4. Front ceiling projection Special installation is required in order to suspend the projector from the ceiling. Please ask your dealer for details. Downloaded From projector-manual.com Boxlight Manuals... -
Page 14: Ceiling Mounted Installation Guide
MAX M4x8 mm For Mounting. Security Anchor The product is equipped with security anchor and PIN LOCK functions to help prevent unauthorized removal projector. WARNING ►Do not grasp the security anchor to carry projector, since it is not designed for it. ► T he security anchor is not for comprehensive theft prevention measures. It is intended to be used as supplemental theft prevention measure. Downloaded From projector-manual.com Boxlight Manuals... -
Page 15: Adjusting The Projector's Elevation
Use the keystone correction function to correct this distortion. After making sure that the front adjustable feet are locked, put the projector gently atop. Downloaded From projector-manual.com Boxlight Manuals... -
Page 16: How To Connect
Connect the computer cable from the computer to the projector's RGB IN or DVI-I IN. If needed, connect the MONITOR OUT to a monitor to view input from RGB IN or DVI-I IN. Tighten the screw on all connectors. Downloaded From projector-manual.com Boxlight Manuals... - Page 17 / off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the laptop. Press Fn and the labeledfunction key simultaneously. Refer to your laptop’s documentation to discover your laptop’s key combination. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 18: Remote Control
►Do not drop the remote control. ► I f the remote control will not be used for an extended period, remove the batteries. ► D o not expose the remote control to water or moisture. This could result in malfunction. ► R eplace the battery when remote control operation becomes sluggish or unresponsive. ► D o not place the remote control close to the cooling fan of the projector. ► D o not use batteries of different types at the same time. ► D o not mix a new battery with used one. Make sure the plus and terminals are correctly aligned when loading batteries. ► D ispose of batteries in accordance with environmental laws. ► D o not disassemble the remote control. If the remote control needs service, please contact your dealer. ► T he batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Downloaded From projector-manual.com Boxlight Manuals... - Page 19 MOUSE-L / MOUSE-R The function is like mouse of desktop/ notebook. Remote control’s mouse functions only will work if the USB cable is connected (see page 15 for instructions) Downloaded From projector-manual.com Boxlight Manuals...
-
Page 20: Remote Control (Optional)
7. Do not disassemble the remote control. If the remote control needs service. Please bring it to the service station. 8. The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Downloaded From projector-manual.com Boxlight Manuals... - Page 21 Computer 1 ← S-Video ← Composite Video ← Mouse Select an item or adjust value in the On- Screen Menu. Zoom in / Zoom out Zoom in or zoom out. Mute Mute audio. Laser pointer Use laser pointer from remote control. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 22: Menu Operation
Up / Down / Right / Left button LASER INDICATOR POWER INPUT Power Laser MENU LASER MUTE Menu MOUSE-L MOUSE-R AUTO BLANK Menu button Downloaded From projector-manual.com Boxlight Manuals... -
Page 23: Menu (Pc Mode)
GREEN BOARD DISPLAY MODE Adjust the color settings to make the projected image on WHITE BOARD a (green, white, black) board more visible. BLACK BOARD User Red 000/100 USER User Green 000/100 User Blue 000/100 Downloaded From projector-manual.com Boxlight Manuals... -
Page 24: Audio Menu (Pc Mode)
1. U se the ▲ /▼ buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description VOLUME 00/40 Adjust the volume. MUTE OFF/ON Mute the volume OFF / ON. Downloaded From projector-manual.com Boxlight Manuals... -
Page 25: Setting Menu (Pc Mode)
Set all of the above setting automatically. AUTO SEARCH OFF/ON Search signal source manually or automatically. KEYPAD OFF/ON Turn the Beep of Keypad OFF / ON. BEEP *DVI doesn't support H POSITION, V POSITION, PHASE, FREQUENCY and AUTO SYNC. Downloaded From projector-manual.com Boxlight Manuals... -
Page 26: Menu (Video Mode)
GREEN BOARD DISPLAY MODE Adjust the color settings to make the projected image on WHITE BOARD a (green, white, black) board more visible. BLACK BOARD User Red 000/100 USER User Green 000/100 User Blue 000/100 Downloaded From projector-manual.com Boxlight Manuals... -
Page 27: Audio Menu (Video Mode)
Audio Menu Step: 1. U se the ▲ /▼ buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description VOLUME 00/40 Adjust the volume. MUTE OFF/ON Mute the volume OFF / ON. Downloaded From projector-manual.com Boxlight Manuals... -
Page 28: Setting Menu (Video Mode)
Automatically Correct keystone distortion in image. KEYSTONE V -70/+70 Correct vertical keystone distortion in image manually. AUTO SEARCH OFF/ON Search signal source manually or automatically. KEYPAD OFF/ON Turn the Beep of Keypad OFF / ON. BEEP Downloaded From projector-manual.com Boxlight Manuals... -
Page 29: Menu
S-Video Video SELECT SOURCE EXECUTE The search is started from the current port. Then when an input is found, the projector will stop searching and display the image. LOGO SETTING EXECUTE Customize the start-up logo. Downloaded From projector-manual.com Boxlight Manuals... - Page 30 Start to capture the image.(PC mode only) CAPTURE BLACK BACKGROUND BLUE Set background color. WHITE Display the captured image in original size and put in the ORIGINAL LOGO SIZE center of the screen. FULL Expend the image to full screen. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 31: Logo Capture
Image U se 4 direction buttons to adjust the position of the frame. P ress “MENU” to start capturing and display a dialog. Logo Capture In Progress. NOTE ►To capture an image is available only in computer mode. ►The area that can be captured is 512 x 384 dots. Downloaded From projector-manual.com Boxlight Manuals... -
Page 32: Presentation Menu
NORMAL / LAMP MODE Switch lamp mode between normal or ECO mode. ECONOMIC LAMP Show lamp use time. RESET LAMP After changing a new lamp, execute this function to reset EXECUTE TIMER the lamp timer. Downloaded From projector-manual.com Boxlight Manuals... -
Page 33: Reset Lamp Timer
To reset the lamp time, select the RESET using the ► button. NOTE ► T he replacement warning message is set to appear after about 2000 hours of lamp use in order to maintain the initial brightness. When replacement message appears, replace the lamp with a new one as soon as possible, even if the lamp is still workable. Downloaded From projector-manual.com Boxlight Manuals... -
Page 34: Security Menu
(1) To change the PIN lock protection state, you must enter the PIN code first. (2) Please enter: 0000 for first-time use. (3) To avoid unnecessary trouble, if you activate the [PIN Lock Protection], it is highly recommended that you write down the PIN code and store it in a safe place. Downloaded From projector-manual.com Boxlight Manuals... - Page 35 NOTE : This function is available only in video / S-Video source. If purchasing LAN control module, "LAN MODULE" will LAN MODULE be shown in "Security" Menu. Select ON/OFF to turn on/off LAN control feature. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 36: Auto Filter Alert
MENU Auto Filter Alert Auto Filter Alert is in SECURITY category to show the air filter use time and alert user to change filter. Pressing ► cursor button will display a dialog. When the operating time reaches the set time, a warning message will appear on the screen to remind user of filter cleaning / replacing. Filter Replace... Filter has been used for more than 500 hours. NOTE ► Please reset the Filter time only when you replace the filter. Downloaded From projector-manual.com Boxlight Manuals... -
Page 37: Pin Key In Operation
30 seconds. If you have no idea about the PIN, please contact your dealer for help. Downloaded From projector-manual.com Boxlight Manuals... -
Page 38: Network Control Software Application
(1) Projector should already be powered on. (2) Projector is connected to network. (3) LED light of the projector network port shows normal. (Green light on, Orange twinkle) * Stand-by mode indictor: Green LED (Power) on the projector’s control panel flashes. Downloaded From projector-manual.com Boxlight Manuals... -
Page 39: Before Use
(4) Make sure the computer and projector can connect to network. Network Control software needs to arrange in TCP/IP network communication and the network cable. Open Network Control Software C lick Network control software icon. M onitor window will show as Graph 1. <Graph 1> Downloaded From projector-manual.com Boxlight Manuals... -
Page 40: Before To Use Network Control Software
(2-3) The LAN module ON/OFF item in SECURITY menu of OSD should be setting ON. (2-4) Make sure the computer and projector can connect to network. Network Control software needs to arrange in TCP/IP network communication and the network cable. NOTE: IE8 browser & 1024x768 viewing resolution is recommended. Downloaded From projector-manual.com Boxlight Manuals... - Page 41 (2) Please wait for the PC server to release IP address to the projector. (3) Enter "Given IP address (For example http://192.168.1.176/)" into the address bar of the web browser and press “Enter” key or click “Go” button. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 42: Item Setting Description
Show and set up Schedule, including Weekly Schedule and Specific Day. Schedule If the Administrative & User password is enabled, select your User Name and enter password to login. ADMINISTRATOR MODE adminstrator name: admin default password: 0000 USER MODE user name: user default password: 1234 Downloaded From projector-manual.com Boxlight Manuals... - Page 43 Show date set on current projector. Time Show time set on current projector. MAC Address Show current MAC Address. * When system status shows "Inactive", it could either mean the projector is "Stand By Mode". Downloaded From projector-manual.com Boxlight Manuals...
- Page 44 Freeze the current image on the screen. Resize 4:3,16:9, 1:1, 16:10 Reset Reset all menu function to their factory default values. Presentation Projection Select Front/Ceiling/Rear/Celing and Rear Lamp Mode Switch lamp mode between normal or ECO mode. Downloaded From projector-manual.com Boxlight Manuals...
- Page 45 Enter administrative password.(Max length: 15 characters) Confirm Password Re-enter administrative password. Password:USER User Turn ON/OFF user password function. User mode only can read the conditions on web. New Password Enter user password.(Max length: 15 characters) Confirm Password Re-enter user password. Downloaded From projector-manual.com Boxlight Manuals...
- Page 46 The projector internal is over heated. Lamp fail The lamp does not light up. Lamp Time Alert Lamp has reached its life time. Suggest changing the lamp. Lamp Cover Opened Lamp Cover does not close well. Filter has reached its life time. Suggest cleaning the filter. Filter Time Alert Downloaded From projector-manual.com Boxlight Manuals...
- Page 47 ( Please be sure the setting period between power-on time and off time is greater than 5 minutes.) 3. Enter Input Source and select input source. 4. After completing setting, press ADD to confirm. 5. To cancel items, select the item and press "Cancel" button. Downloaded From projector-manual.com Boxlight Manuals...
- Page 48 Before Use Activate Network Control Software Execute the Network Control Software. M onitor window below appears. <Graph 1> Downloaded From projector-manual.com Boxlight Manuals...
-
Page 49: Projector Auto Search
2. If there is no DHCP server available on the LAN. The LAN module default IP address should be 169.254.1.1. Please modify the PC/Laptop IP address setting to make the PC/Laptop IP address located on the same segment as 169.254.xxx.xxx and try again. Downloaded From projector-manual.com Boxlight Manuals... - Page 50 <Graph 4-1> Monitor window P rojector Auto Search can rank group names or display names by clicking the monitor window title (Group Name) or (Projector Name). This will help you easily to understand projectors status. <Graph 4-2> Downloaded From projector-manual.com Boxlight Manuals...
- Page 51 (Data single capture) in the tool bar or click button (Start Auto Scan) running in this program to monitor the projector. NOTE When pressing "About " button for help, you will see icons explained as in the chart. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 52: Modify The Projector Setting
IP Address Show the IP Address Mask Show the Mask Gateway Show the Gateway Show up the MAC code (The default value can not be modified) Capture IP address from network sensor DHCP automatically. < Table 1 > : Setting Windows Downloaded From projector-manual.com Boxlight Manuals... -
Page 53: Registering And Configuring The Projector
Registering And Configuring The Projector Delete S elect the registered projector in monitor window. Click mouse right key and select " Delete " to erase the registered projector data. < Graph 6 > : Register Table. Downloaded From projector-manual.com Boxlight Manuals... -
Page 54: Projector Setting
S elect the registered projector in monitor window. Click mouse right key and select "projector setting" to modify the registered projector data. After finishing the setting, you can save by clicking button or cancel by clicking button. < Graph 7 > : Register table. < Graph 8 > :Setting table. Downloaded From projector-manual.com Boxlight Manuals... - Page 55 Registering And Configuring The Projector Projector Setting Click button (system setting) to modify system alert setting. < Graph 9 > <Graph 10> Downloaded From projector-manual.com Boxlight Manuals...
-
Page 56: System Setting / Monitor / Default Setting / Auto Detect Optimal Setting
< Table 3 > Auto Detect Optimal Setting Projector Number (Sets) Timer Interval (Minutes) 1~25 1/3/5/10 * The maximum quantity of 26~50 3/5/10 projector monitored is 255. 51~100 5/10 101~255 10< < Table 4 > Downloaded From projector-manual.com Boxlight Manuals... -
Page 57: Link
S elect the registered projector in monitor window. Click mouse right key and select " Link " to show up the control panel table and the projector connected status. < Graph 12 > : The control panel table Downloaded From projector-manual.com Boxlight Manuals... -
Page 58: Control Panel Window Introduction
DVI-I RGB 1 Change Input Source F unction Key Icon Name Icon Name Freeze Down Blank Left Keystone Correction + Right Keystone Correction - Menu Increase Brightness Auto Sync Decrease Brightness Mute Higher Contrast Downloaded From projector-manual.com Boxlight Manuals... -
Page 59: Function Key / Projector Status
Control Panel Window Introduction Function Key Icon Name Lower Contrast Zoom In Zoom Out Volume Up Volume Down Projector Status Icon Name System Status Input Source Status Lamp Timer Air Filter Timer Downloaded From projector-manual.com Boxlight Manuals... -
Page 60: Network Control Window Introduction
Save Project File Save the registered projector in this project. System Setting Setting the projector system reminder message. About Icon content description. Exit Exit the Network software. Register projector Register projector’s information. Exit Cancel registered information. Downloaded From projector-manual.com Boxlight Manuals... -
Page 61: Maintenance Of Projector
Maintenance of Projector Air Filter When a warning message appears to remind you to clean the air filter, please replace a new one as soon as possible. Please check and clean the air filter periodically. Replacing the Air Filter When the use time reaches the filter counter time, the projector will display a message that indicates to replace a new filter. If there is no spare air filter available, please contact your dealer. New one Turn off the projector, and unplug the power cord. Allow the projector to sufficiently cool down. Remove the filter cover from the right side of projector. Pull out the air filter. Install a new air filter. Put the filter cover on. Reset filter timer after cleaning or changing air filter. (P.35) Downloaded From projector-manual.com Boxlight Manuals... -
Page 62: Lamp / Replacing New Lamp
2. Loosen 2 screws of the lamp holder. Take the handle on the top of the lamp, pull out the lamp straight off the projector. 3. Insert new lamp, lock the lamp door firmly with 2 screws. 4. Put the lamp door on. 5. Please reset the lamp timer after replacing lamp. (P.34) Downloaded From projector-manual.com Boxlight Manuals... - Page 63 1.The Lamp is optional part. Contact the dealer for replacement lamp. 2. The lamp becomes very hot when in use. Turn the power off and disconnect the power cord. 3.Wait 1 Hour before replacing the lamp. 4. Do not use old lamp part. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 64: Other Care / Cleaning The Lens
- Before maintenance, make sure the power cable is unplugged, allow the projector to cool sufficiently. The high temperature state of the projector could cause a burn in and/ or malfunction to the projector. -Never try to maintain the inside of the projector by yourself Downloaded From projector-manual.com Boxlight Manuals... -
Page 65: Troubleshooting
2. Check the cleanliness of the air filter. The lamp does not light. Come Blinking In Blinking In Lamp fail back to " stand by mode ", and Green (Slow) (Slow) press the power button. Downloaded From projector-manual.com Boxlight Manuals... -
Page 66: Error For Machine Defects
The lamp is near the end of its service life. & contrast Replace with a new lamp. The projection lens is not focused. Adjust the focus using the focus ring. Video is blurred The lens is dirty or misty. Clean the lens. Downloaded From projector-manual.com Boxlight Manuals... - Page 67 Press the MUTE button. No battery. Before using the remote control, please check the battery of remote Remote control is control. not working. Remote signal is obstructed. Remove the obstacle between projector and remote control. Downloaded From projector-manual.com Boxlight Manuals...
-
Page 68: List Of Supported Monitor Displays
WSXGA+ 1680x1050 1280x1024/640x480 832x624 1024x768 1152x870 Component (Y,Pb,Pr) Signal Refresh Rate (Hz) Resolution (dots) SDTV(480i) 720x480 SDTV(480p) 720x480 HDTV(720p) 1280x720 HDTV(1080i) 1920x1080 Composite / S-Video Signal Refresh Rate (Hz) Resolution (dots) TV(NTSC) 720x480 TV(PAL,SECAM) 720x576 Downloaded From projector-manual.com Boxlight Manuals... - Page 69 У а а Deutsch ไทย RGB 1 RGB 2 Select Source DVI-I Y,Pb,Pr Video S-Video Logo Mode Logo Capture Logo Setting Background Logo Size *DVI doesn’t support H / V POSITION, PHASE, FREQUENCY, AUTO SYNC function. Downloaded From projector-manual.com Boxlight Manuals...
- Page 70 ADVANCED Resize 16:9 English Italiano Polski Português Language Р Español Dutch Svenska Français У а а Deutsch ไทย RGB 1 Select Source RGB 2 DVI-I Y,Pb,Pr Video S-Video Logo Mode Background Logo Setting Logo Size Downloaded From projector-manual.com Boxlight Manuals...
- Page 71 Appendix Appearance Downloaded From projector-manual.com Boxlight Manuals...
