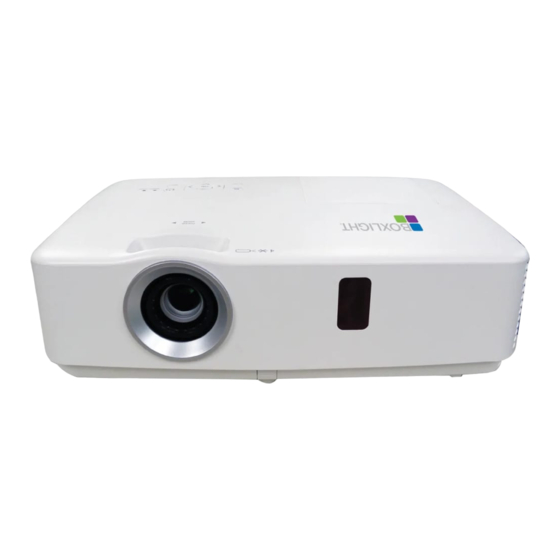

Cambridge X33N | WX36N

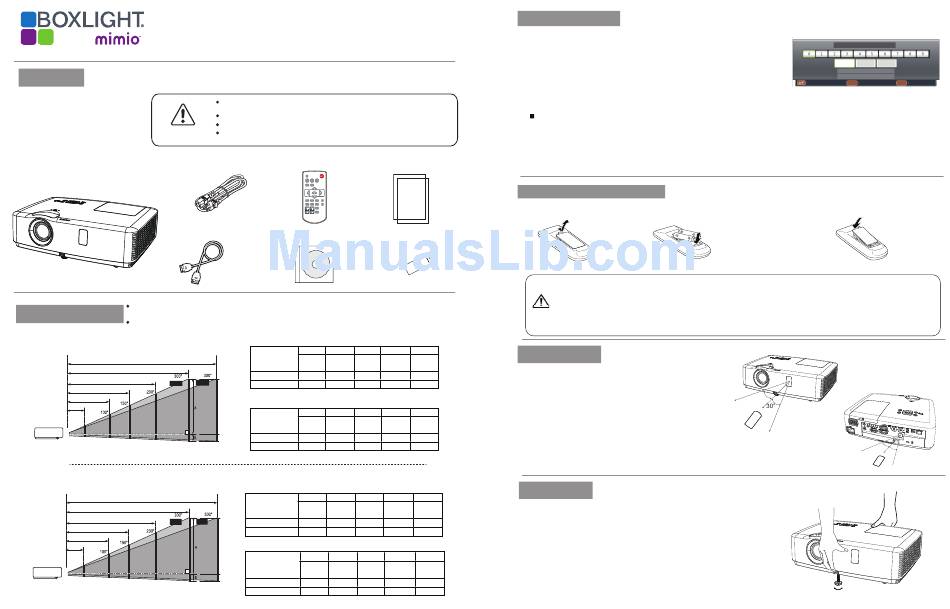

QuickStart Guide
Accessories
Please make sure that following items
are in luded in the box, along with the
main. If any items missing, contact
your deale .
WARNING
AC Power cord
Projector
HDMI cable
The brightness in a room has a great influence on picture quality. It is recommended to limit the ambient lighting in
Positioning the projector
order to get the best image.
All measurements are approximate and may vary from the actual sizes.
XGA
10.937m(11.918m) (Diagonal:Inch)
9.099m(9.915m)
6.058m(6.602m)
Max.
4.537m(4.945m)
3.017m(3.288m)
0.888m(0.969m)
30"
WXGA
11.595m(11.918m) (Diagonal:Inch)
9.647m(9.915m)
6.432m(6.602m)
Max.
4.811m(4.945m)
3.199m(3.288m)
0.942m(0.969m)
30"
Brfore using, read the " Quick Start Guide " and the owner's manual to ensure
correct usage through understanding.
After reading, store them in a safe place for future reference.
Do not look into the lens while the projector's power is turned on.
Do not put something close the lens when power on the projector, it may damage
the projector or may cause fire hazard.
Remote control with batteries Quick start guide
INPUT
VGA VIDEO HDMI
AUTO MENU
KEYSTONE IMAGE FREEZE PATTERN
SCREEN LAMP MUTE INFO.
BLANK
+ +
D.ZOOM VOLUME TIMER
- -
User's Manual (CD)
WiFi Dongle(Optional)
4:3
Screen size 30" 100" 150"
(WxH)mm
610x457 2032x1524 3048x2286 4064x3048 6096x4572
4:3 aspect ratio
Maximum 0.9m 3.0m 4.5m
Min. Minimum 1.1m 3.6m 5.5m
16:9
Screen size 30" 100" 150"
(WxH)mm
664x374 2214x1245 3321x1868 4428x2491 6641x3736
16:9 aspect ratio
(Center)
Maximum 1.0m 3.3m 5.0m
Welcome
Minimum
1.2m 4.0m 6.0m
16:10
Screen size 30" 100" 150"
(WxH)mm
646x404 2154x1346 3231x2019 4308x2692 6462x4039
16:10 aspect ratio
Min. Maximum 0.9m 3.2m 4.8m
Minimum 1.1m 3.8m 5.8m
16:9
Screen size 30" 100" 150"
(WxH)mm
664x374 2214x1245 3321x1868 4428x2491 6641x3736
(Center)
16:9 aspect ratio
Maximum 1.0m 3.3m 5.0m
Minimum
1.2m 4.0m 6.0m

Turn on the projector

1.Complete peripheral connections (with a computer, VCR,etc.) before
turning on theprojector.
2.Connect the projector's AC power cord into the AC outlet. The POWER
indicator turns red.
3.Press the POWER button on the top control or on the remote control. The
POWER indicator becomes green and the cooling fans start to work. The
preparation display appears on the screen.
4.If the projector is locked with a PIN code, a PIN code input dialog box
appears. Enter the PIN code as instructed below.
Enter a PIN code
Press the OK button, press  button to select a number and press the OK button to enter it to the PIN code
box, then number changes to "*", automatically move the cursor to next box.
If you fixed an incorrect number, press MENU button to reset it again.
Repeat the steps to complete entering a threedigit number. After entering the three-digit number, automatically
move the cursor to "Set", press the OK button then you can start to operate the projector.
If you entered an incorrect "PIN code", the number (***) turn red. PIN code will be reset within one
second automatically, Enter the correct PIN code all over again.

Install remote control batteries

① Open the battery cover.
To ensure safe operation, please observe the following precautions:
● Use two (2) AAA or LR3 type alkaline batteries.
● Always replace batteries in sets.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid matter.
● Do not expose the remote control to moisture or heat.
● Do not drop the remote control.
200" 300"

Operating range

Point the remote control toward the remote control receivers
6.1m 9.1m
on the projector (front and back) when pressing any button.
7.3m 10.9m
Welcome
The maximum operating range for the remote control is
200" 300"
about 5 meters and 60 degrees.
6.6m 9.9m
7.9m 11.9m

Adjustable foot

200" 300"
The projector can be adjusted up to 40 mm (10 degree) with the
adjustable foot. Rotate the adjustable foot to lift the projector to
6.4m 9.6m
a certain height. During lifting, rotate the footclockwise.
7.7m 11.6m
To lower or retract the adjustable foot, rotate the foot counterclockwise.
Keystone distortion of projected images can be corrected by auto
200" 300"
settings, remote control operation or menu operation.
6.6m 9.9m
7.9m 11.9m
Move
Move the cursor to "Set", and press "OK".
移动
② Install new batteries.
③ Put the cover back.
Two AAA batteries
For correct polarity
(+ and –), be sure
battery terminals
are in contact
with pins in the
compartment.
● If the battery has leaked in the remote control, carefully wipe the case clean
and install new batteries.
● Risk of explosion if two batteries are replaced by an incorrect type.
● Dispose of used batteries according to the instructions on the battery or local
regulations or guides.
30°
5m
Adjustable foot
PIN Code
*
Set
Cancel
Select Back
OK Esc
30°
30°
5m
