- Page 1 Operation Manual AN Series Binoculars 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...
-
Page 3: Table Of Contents
Table of Contents 1. BRIEF DESCRIPTION..........1 2. SPECIFICATIONS ..........3 Shared specifications...........3 Differences between the models ......4 3. DESIGN AND APPEARANCE.......5 Optical design .............5 Reticle ..............6 4. BODY ASSEMBLY ..........8 5. DELIVERY SET ............10 6. OPERATION INSTRUCTIONS......11 Interpupillary distance adjustment ....11 Focusing the binoculars ........11 Measuring horizontal angle using the reticle ..12 Measuring vertical angle using the reticle ..13... -
Page 4: Brief Description

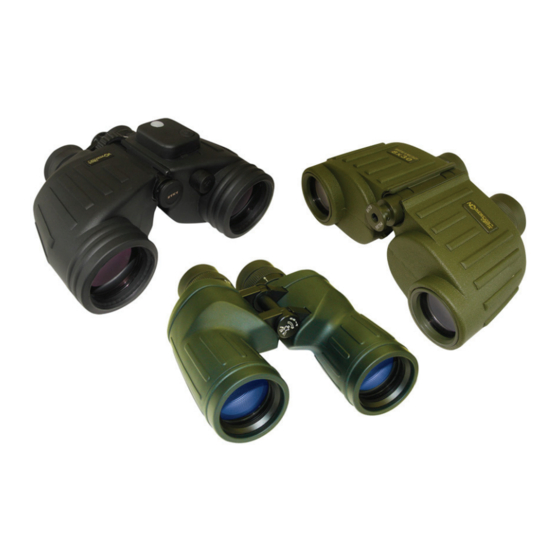

1. BRIEF DESCRIPTION The AN series of daytime binoculars includes AN 8x30, AN 7x50MC, AN 7x50M22, AN 10x50M22. Though the binoculars differ in optical characteristics and some features, they all share a similar optical and mechanical design. Unless explicitly mentioned this manual refers to all models. - Page 5 The binoculars feature foldable rubber eye cups and long eye relief to provide for comfort viewing with glasses or mask. Though many binoculars feature fold down eye cups, only the ones featuring a long eye relief offer a truly full view while wearing glasses. The AN 7x50MC has a built-in compass illuminated either by ambient light or by an internal light source powerd with two tablet batteries.
-
Page 6: Specifications
2. SPECIFICATIONS 2.1 Shared specifications Prisms BAK4 Coating Brightness index 50.4 Interpupillary adjustment distance 56-74 mm M22 Reticle Operating temperature range –40°C … +70°C All binoculars are waterproof and shockproof (will withstand a drop test from 1.8m). -
Page 7: Differences Between The Models
2.2 Differences between the models 7x50M2 10x50M2 8x30 7x50MC Magnification Objective 30 mm 50 mm 50 mm 50 mm lens diameter 3 m – Focus 4 m – inf. 5 m – inf. 6 m – inf. inf. Field of view 8°... -
Page 8: Design And Appearance
3. DESIGN AND APPEARANCE 3.1 Optical design Optical design of the binoculars is presented on Fig. 1. 1 – objective lens 2 – erective prisms 3 – reticle lens 4 – eyepiece AN 7x50MC contains an additional compass projector that brings light to illuminate the compass scale. Fig. -
Page 9: Reticle
The light from the object or target you are looking at enters the binoculars through the objective lens system (1, Fig. 1). Due to the objective lens, the image at this point is turned upside down. However, as the image passes through the prism system, (known as the erective prisms) (2, Fig. - Page 10 Reticle may have an addition scale composed of two lines (B, Fig.2). Fig. 2...
-
Page 11: Body Assembly
4. BODY ASSEMBLY AN 7x50MC is shown as an example. Though all binoculars have similar design, only MC model has a built-in illuminated compass. See next page for details. - Page 12 Fig. 3 1 – Eyepiece with built-in reticle 2 – Binoculars body and focus adjustment ring 3 – Tripod socket under a 4 – Objective lens with a screwed in protective cup protective cap on 5 – Interpupillary distance 6 – Battery compartment adjustment scale cover 7 –...
-
Page 13: Delivery Set
5. DELIVERY SET Q-ty Notes Binoculars Carrying strap Lens cleaning cloth Soft case with carrying strap AN 7x50M22 and Eyepiece cup AN 10x50M22 only AN 7x50M22 and AN 10x50M22 only, Tripod adapter for other models tripod adapter is optional Manual... -
Page 14: Operation Instructions
6. OPERATION INSTRUCTIONS 6.1 Interpupillary distance adjustment Prior to use you may like to adjust the binoculars to the distance between your eyes (interpupillary distance). Holding the binoculars in both hands rotate its halves until you see one round image. Note: The image may not be clear at this step. -
Page 15: Measuring Horizontal Angle Using The Reticle
the image by rotating eyepiece adjustment ring of the left eyepiece. Repeat the procedure for the other eye. Note: You may like to remember your dioptre settings to set them every time you use the binoculars. 6.3 Measuring horizontal angle using the reticle An M22 reticle built into these binoculars enables measuring height, distance and size of a target, as well as angle between two close targets. -
Page 16: Measuring Vertical Angle Using The Reticle
Fig. 4. When the angle between two targets is larger than the angle measuring range (100 mils), it can be measured in several steps. The horizontal angle of cruiser shown in Fig. 5, is 130 mils (60+70=130). 6.4 Measuring vertical angle using the reticle Fig. - Page 17 Vertical angle measurement is similar to horizontal angle measuring. When height of the target is smaller than the reticle scale, its height can be obtained in one measurement. The height of the beacon, shown in Fig. 6, is 65 mils. For targets taller than the reticle scale, perform measurement in steps in the same way as it is described for the horizontal angle measurement.
-
Page 18: Using The Reticle To Calculate Distance
6.5 Using the reticle to calculate distance To determine the distance to the target use the formula: D = H/K, where D – distance to target in km, H – estimated height of the target in m, K – vertical angle of the target in mil. First, estimate the height (or width) of the target, then measure target’s horizontal (vertical) angle and calculate the distance. - Page 19 Fig. 7 Place the lower edge of the target at the horizontal line on the reticle. The reading of the scale at the point where target’s 2 m level touches the scale is the distance in meters. Assuming that vehicle on the Fig. 7 is 2 m high; the distance to it is 550m.
-
Page 20: Calculating Target's Size Using Angle Readings
6.7 Calculating target's size using angle readings To calculate height and width user will need to estimate the distance to the target and measure its horizontal and vertical angles. Then using the formula for distance measurement one can calculate target’s height: H=DxK, where K is vertical angle in mils, D is distance in meters and... -
Page 21: Compass (Mc Model Only)
6.8 Compass (MC model only) The AN 7x50MC model has a built-in analogue compass, which is visible via the eyepiece (A, Fig.2). This scale can be illuminated via a projector window (8, Fig.3). If natural illumination is not sufficient pressing the illuminator button (7, Fig.3) will lightup the scale from inside. -
Page 22: Storage And Maintenance
7. STORAGE AND MAINTENANCE The binoculars are precision optical instruments that should be carefully handled and properly maintained to keep them in a good working order. Clean the lenses after each use with special optical cloth. Never wipe the lenses with fingers; grease may damage the optics coating. -
Page 23: Warranty
8. WARRANTY NEWCON warrants this product against defects in material and workmanship for one year from the date of the original purchase. Longer warranty is available, subject to the terms of the specific sales contract. Should your Newcon product prove to be defective during this period, please deliver the product securely packaged in its original container or an equivalent, along with the proof of the original purchase date, to your Newcon Dealer. - Page 24 If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of $15.00 to cover handling and return shipping.
-
Page 25: Customer Support
9. CUSTOMER SUPPORT Should you experience any difficulties with your NEWCON OPTIK product, consult the enclosed manual. If the problem remains unresolved, contact our customer support department at (416) 663-6963 or toll free at 1- 877-368-6666. Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time. -
Page 26: Quality Certificate
QUALITY CERTIFICATE The binoculars serial number_______________________ complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector: __________________________________ Quality Assurance Seal... - Page 28 NEWCON OPTIK Printed in Canada...
