- Page 1 Operation Manual AN 25-125x80 Giant Zoom Binoculars 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...
-
Page 3: Table Of Contents
Table of Contents 1. BRIEF DESCRIPTION ........... 1 2. SPECIFICATION ............ 2 3. AN 25-125x80 Assembly ........3 4. DELIVERY SET ............. 4 5. OPERATION INSTRUCTIONS ......5 Interpupillary distance adjustment ......... 5 Focusing the binoculars ..........5 Tripod Mounting ............5 6. -
Page 4: Brief Description

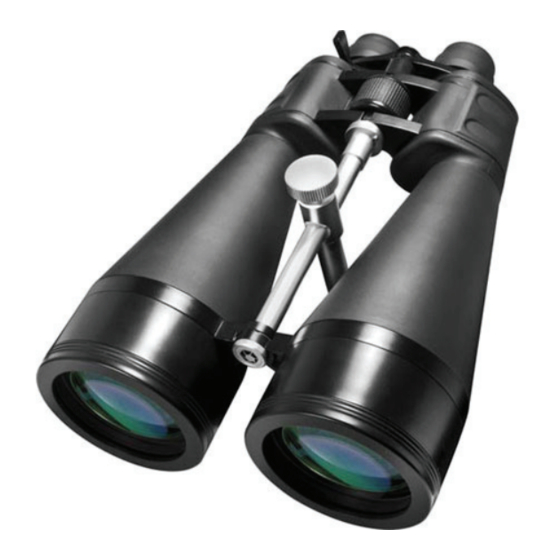

1. BRIEF DESCRIPTION AN 25-125x80 Giant Zoom daytime binoculars Top quality waterproof, observation binoculars with center focusing, designed for medium-to-long-range terrestrial and astronomical observations. Robust design incorporating an all-metal body construction. Features BAK-4 prisms and a fully roadband multi- coated optical system. The high-resolution optical system features high- transmission lens and prism coatings allowing a massive light transmission, producing a flat field and bright... -
Page 5: Specification
2. SPECIFICATION Magnification 25-125X Objective lens diameter, mm Field of View, @ 1000 yd Field of View, @ 1000 m Prisms BAK 4 Coating Focus 25 m - inf Eye Relief, mm Exit Pupil, mm Twilight factor 45 (25x), 95 (125x) 10.9 (25x), 0.5 Brightness (125x) -
Page 6: An 25-125X80 Assembly
3. AN 25-125x80 Assembly 1 – Interpupillary distance adjustment 2 – Diopter focus 3 – Tripod Mount 4 – Zoom Lever 5 – Focusing knob... -
Page 7: Delivery Set
4. DELIVERY SET Q-ty Notes Binoculars Objective lens cover Tripod Mount Carrying Case Manual Tripod Optional... -
Page 8: Operation Instructions
5. OPERATION INSTRUCTIONS Interpupillary distance adjustment To adjust interpupillary (IP) distance, push barrels in and down or pull barrels out and up until distance is comfortable. Note: The image may not be clear at this step. You will focus it in the next step. Focusing the binoculars To focus binoculars, close right eye and turn the right diopter focus until image becomes focused. -
Page 9: Storage & Maintenance
6. STORAGE & MAINTENANCE The binoculars are precision optical instruments that should be carefully handled and properly maintained to keep them in a good working order. Clean the lenses after each use with special optical cloth. Never wipe the lenses with fingers; grease may damage the optics coating. -
Page 10: Warranty
7. WARRANTY NEWCON warrants this product against defects in material and workmanship for one year from the date of the original purchase. Longer warranty is available, subject to the terms of the specific sales contract. Should your product prove to be defective during this period, please deliver the product securely packaged in its original container or an equivalent, along with the proof of the original purchase date. -
Page 11: Customer Support
If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of $25.00 to cover handling and return shipping. 8. CUSTOMER SUPPORT Should you experience any difficulties with your NEWCON OPTIK product, consult the enclosed manual. - Page 12 Tel: (416) 663-6963 Fax: (416) 663-9065 Email: newconsales@newcon-optik.com Web: www.newcon-optik.com Defective products should be shipped to: From the USA only: 2498 Superior Ave. Cleveland, OH 44114 USA From all other countries: 105 Sparks Ave., Toronto, ON M2H 2S5, CANADA...
-
Page 13: Quality Certificate
9. QUALITY CERTIFICATE AN 25-125x80 Complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector: __________________________________ Quality Assurance Seal... - Page 16 NEWCON OPTIK Printed in Canada...
