IOGear GUWAVKIT3 Quick Start Manual

Wireless 1080p computer to hdtv kit

Advertisement

Quick Links

Quick Start
Guide
Wireless 1080p Computer to HDTV Kit
PART NO. Q1173

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUWAVKIT3 and is the answer not in the manual?

Questions and answers

Summary of Contents for IOGear GUWAVKIT3

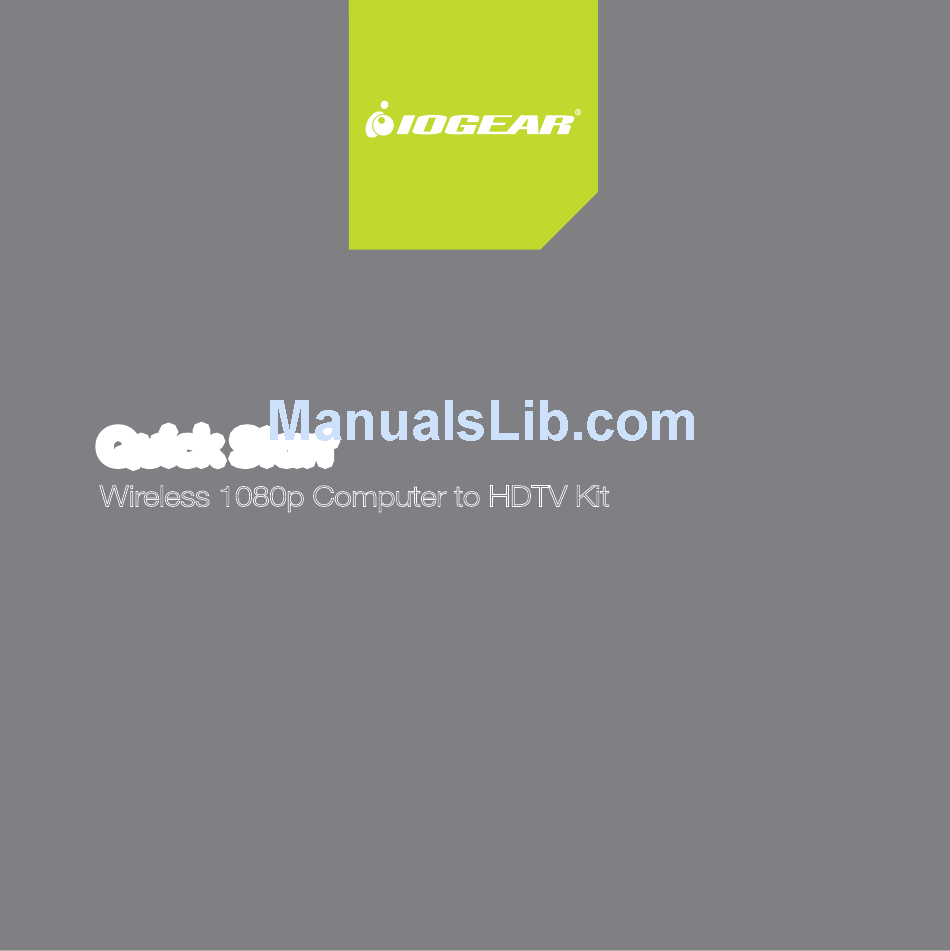

  • Page 1: Quick Start Guide

    Quick Start Guide Wireless 1080p Computer to HDTV Kit PART NO. Q1173...
  • Page 2: Package Contents

    Package Contents Start Here! 1 x Wireless A / V Receiver (device adapter + A / V base) 1 x Wireless USB Transmitter (for computer) 1 x Power Adapter 1 x HDMI Cable 1 x Quick Start Guide 1 x Warranty/Registration Card 1 x Installation CD Requirements •...
  • Page 3: Software Installation

    Software Installation 1. Insert the CD-ROM and follow the instructions to install the driver software. 2. A new Wireless USB icon will appear in the system tray after the installation. 3. Restart your system for the configuration changes made to fully take effect. system tray...
  • Page 4: Transmitter Installation

    Transmitter Installation 1. Plug the Wireless USB Transmitter to a USB 2.0 port on your computer (the tray icon will change from Gray to Red 2. Please keep the Transmitter in upright position only.
  • Page 5: Receiver Installation

    Receiver Installation 1. Depending on your installation application, slide the shutter to show the USB port. 2. Insert the Device Adapter. 3. Keep Device Adapter in upright position only. Tabletop Wall Mounting...
  • Page 6: Cords And Cables

    Cords and Cables 1. Connect the A / V Base using the HDMI cable or a combination of VGA and audio (3.5mm) cables (sold separately). 2. Slide in the prong changer to the AC adapter first. Connect the power cable to the Black port.
  • Page 7 Configuration 1. Keep your Wireless Transmitter & Receiver at Max 30 ft. within line-of-sight. 2. Now you should be able to watch the same content as your laptop’s screen on your HDTV - Mirror mode is set as default. 3. In Mirror Mode, the screen resolution is chosen automatically for both the laptop and the HDTV.
  • Page 8: Troubleshooting

    Troubleshooting General Troubleshooting Minor issues can generally be resolved by checking the following: • Make sure that the TV was set on the correct “Input” source, such “HDMI 1” • Detach and reattach the transmitter from your computer’s USB port, wait for the connection to re-establish (may take a few seconds) •...
  • Page 9 Troubleshooting Video Playback Under the display icon in the tray • If available it is recommended to use “Optimize for Video” • Use “Extended Mode”, and lower the extended screen resolution to 720p (1280 x 720) Online Video streaming: Windows XP •...
  • Page 10: Federal Communications Commission (Fcc) Statement

    Limited Warranty WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Use the live chat at www.iogear.com to try Warranty Information and solve any issues you may be having This product carries a 1 Year Limited with the product Warranty.
  • Page 11 A / V Base Mounting Template For your convenience, you may use this drill template for easy marking of hole positions for mounting the A / V base. Please make sure the chosen screws / fixtures are suitable for use in the wall to which they are to be attached.
  • Page 12 About Us About Us IOGEAR offers connectivity solutions that are innovative, fun, and stylish, helping people enjoy daily life using our high technology products. GREEN IOGEAR is an environmentally conscious company that emphasizes the importance of conserving natural resources. The use of our technology solutions helps reduce electronic waste.

This manual is also suitable for:

Guwavkit2Q1173
