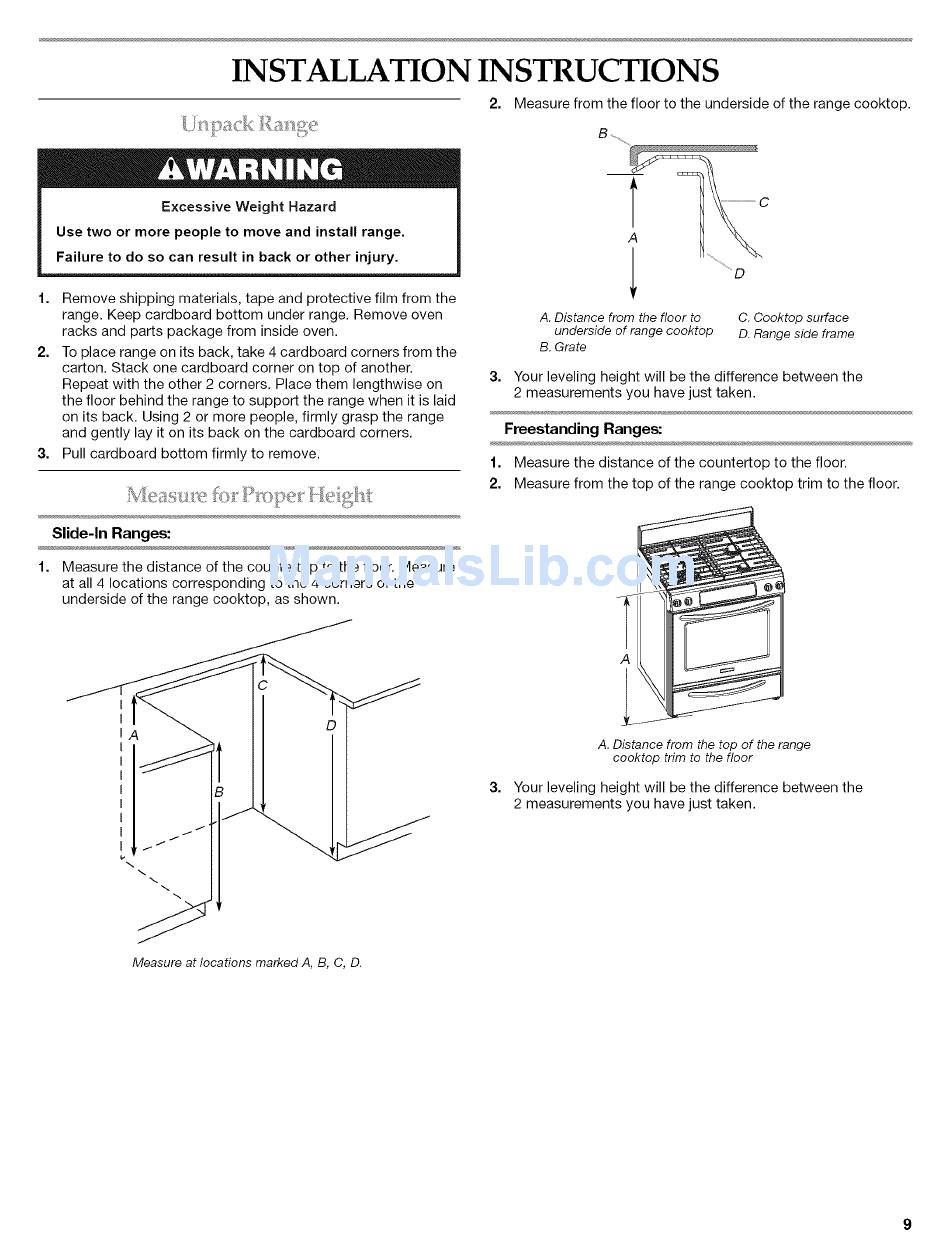

INSTALLATION INSTRUCTIONS
2. Measure from the floor to the underside of the range cooktop.
Excessive Weight Hazard
Use two or more people to move and install range.
Failure to do so can result in back or other injury.
1. Remove shipping materials, tape and protective film from the
range. Keep cardboard bottom under range. Remove oven
racks and parts package from inside oven.
2. To place range on its back, take 4 cardboard corners from the
carton. Stack one cardboard corner on top of another.
Repeat with the other 2 corners. Place them lengthwise on
the floor behind the range to support the range when it is laid
on its back. Using 2 or more people, firmly grasp the range
and gently lay it on its back on the cardboard corners.
3. Pull cardboard bottom firmly to remove.
Slide-In
Ranges:
1. Measure the distance of the countertop to the floor. Measure
at all 4 locations corresponding
to the 4 corners of the
underside of the range cooktop, as shown.
A. Distance from the floor to
C. Cooktop surface
underside of range cooktop
D. Range side frame
B. Grate
3. Your leveling height will be the difference between the
2 measurements you have just taken.
Freestanding
Ranges:
1. Measure the distance of the countertop
to the floor.
2. Measure from the top of the range cooktop trim to the floor.
A
3=
A. Distance from the top of the range
cooktop
trim to the floor
Your leveling height will be the difference between the
2 measurements you have just taken.
Measure at locations marked A, B, C, D.
