Summary of Contents for RTI T2+

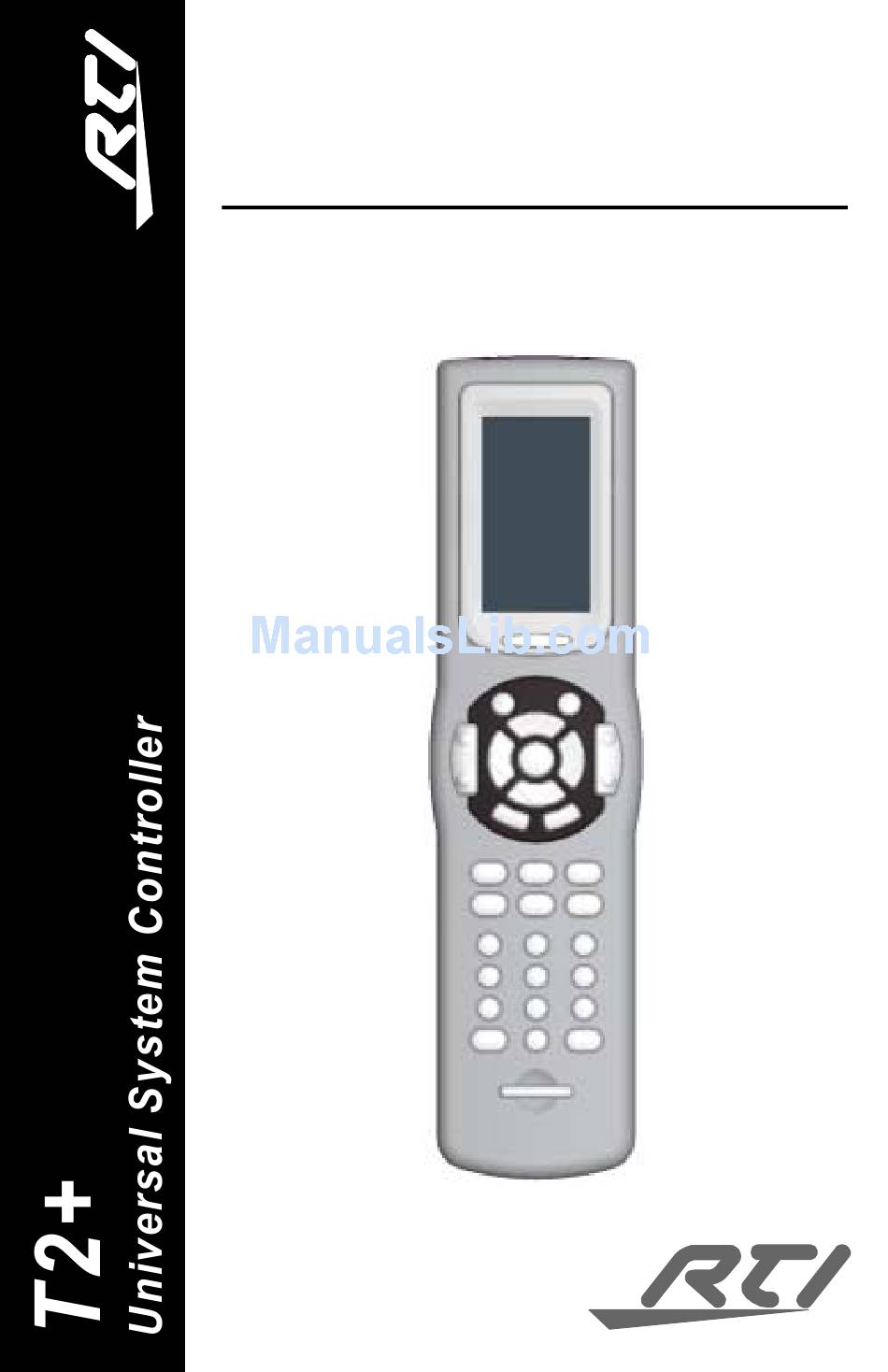

- Page 1 Operation Guide v1.0...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,...
-
Page 3: Battery Disposal
T2+ Universal System Controller BATTERY DISPOSAL For environmental reasons, your T2+ universal system controller uses “environmentally sound” Lithium-ion rechargeable batteries. These batteries do not contain any poisonous heavy metals that can damage the Li-ion environment. In the interest of recycling, please do not dispose of these batteries in the household waste at the end of their useful life. -
Page 4: Limited Warranty
Servicing. Do not attempt any service beyond that described in the operating guide. Refer all other service needs to qualified service personnel. Damage Requiring Service. The unit should be serviced by qualified service personnel when: The power supply cord or the plug has been damaged. Objects have fallen or liquid has been spilled into the unit. -
Page 5: Disclaimer
Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. T2+, It’s Under Control, TheaterTouch, and the RTI logo are trademarks of Remote Technologies Incorporated. -
Page 6: Table Of Contents
Contents Federal Communications Commission Notice----------------------- i Battery Disposal ------------------------------------------------------------ ii Safety Suggestions -------------------------------------------------------- ii Limited Warranty----------------------------------------------------------- iii Disclaimer ------------------------------------------------------------------- iv Contents ----------------------------------------------------------------------- v Chapter 1. Welcome-------------------------------------------------------- 1 Compatibility Note --------------------------------------------------------- 1 Unpacking and Inspection ----------------------------------------------- 2 Product Contents ---------------------------------------------------------- 2 Software Requirements -------------------------------------------------- 2 Chapter 2. - Page 7 Display is Dim, Blank or Unreadable -------------------------------- 15 USB Communication Problems --------------------------------------- 15 IR Code Problems-------------------------------------------------------- 15 Chapter 5. Service and Support--------------------------------------- 17 Updates and New Products-------------------------------------------- 17 Contacting Remote Technologies Incorporated------------------- 17 RTI Technical Support -------------------------------------------------- 17 Specifications--------------------------------------------------------------- 19...
-
Page 8: Chapter 1. Welcome
The T2+ is capable of both infrared and radio frequency output. Optional RF receivers are available for transmission through walls and cabinets. The RF receivers connect to an RTI control system for the ultimate in control reliability and flexibility. RTI control systems provide many advanced features such as IR routing, local macro execution, power sensing, and RS-232 control. -
Page 9: Unpacking And Inspection
T2+ Universal System Controller UNPACKING AND INSPECTION After unpacking your new T2+ universal system controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the T2+ and packing materials for signs of damage. -
Page 10: Chapter 2. Introduction
Chapter 2. Introduction FEATURES The T2+ provides superior quality and reliability as well as these specific features: A replacement for all of the remote controls in a home theater. The T2+ can reproduce all of the commands of almost any other infrared remote control. A programmable graphic display. -
Page 11: Important Notes
T2+ Universal System Controller A built in motion sensor can automatically turn the unit on when it is picked up. A USB port for communication with the TheaterTouch Designer programming software. Non-volatile flash memory. The T2+ will not lose any programmed data when the battery is removed. -
Page 12: Cleaning
Introduction CLEANING Occasional cleaning may be required, depending on use. It is recommended that you create a “Clean” button somewhere on the Home page of the T2+. This button should link to a page that does not contain commands or macros that could be inadvertently executed while cleaning the unit. -
Page 13: Getting Started
T2+ Universal System Controller If the T2+ battery capacity is reduced to approximately one hour of remaining run-time, a low battery icon will appear in the upper left corner of the display: The docking station LED illuminates to indicate a charge in progress. -
Page 14: Remote Reference
Introduction REMOTE REFERENCE IR Transmission Window Touchscreen Display Home Page Button Lithium-ion Battery Pack Keypad Buttons Programming Port Backlight Button Docking Station Contacts Back Front... -
Page 15: Docking Station Reference
T2+ Universal System Controller DOCKING STATION REFERENCE Front Charge Contacts Charge LED 1-3/8 in. (35mm) Back Wall Mount Power Jack Holes Wire Guide... -
Page 16: Chapter 3. Operation
Chapter 3. Operation THE TOUCHSCREEN DISPLAY The T2+ touchscreen display is organized as a series of pages and frames. A page consists of one to twelve frames, and only one frame is displayed on the screen at a time. Normally each frame on a page contains objects (buttons, text, graphics, etc.) that are related in some way. -
Page 17: The Control Panel Page
T2+ Universal System Controller By default, pressing the button at any time will return you HOME to this page. It is possible, however, to program the Home button to behave differently if desired. THE CONTROL PANEL PAGE The Control Panel page can be displayed by pressing and holding the backlight button continuously for 3 seconds. -
Page 18: Beeper
Operation BEEPER This button displays a window that allows you to turn the audible beep on or off. The beeper provides feedback that a button was pressed. Press the button in the window to close. TIME OUT This button displays a window that allows you to adjust the amount of time the unit stays awake after the last button press. -
Page 19: Tilt Switch
T2+ Universal System Controller TILT SWITCH This button displays a window that allows you to adjust the settings for the built-in tilt switch. The tilt switch is a motion detector that turns the remote on when activated. On means the tilt switch is active and will wake up the T2+ when it is moved. - Page 20 Operation Now enter a new four-digit passcode. You will be prompted to enter the new four-digit passcode again for confirmation. When new code is entered successfully, the “Code Changed” window will pop up to let you know you have changed the passcode.
-
Page 21: Clear All
A PC running Windows 98SE or higher with a USB port is ® required. The required USB cable is included with the RTI IR-PRO dealer kit. Note: The T2+ will not operate normally while connected to a PC’s USB port. Make sure you disconnect it from the PC to navigate pages or transmit commands. -
Page 22: Chapter 4. Troubleshooting
Windows. Make sure you are using the programming cable that was supplied by RTI and that both ends are connected securely. Make sure the PC detects the presence of the T2+. If it doesn’t, unplug the USB cable, wait for about ten seconds, and plug it in again. - Page 23 T2+ Universal System Controller If you are still having problems, try adjusting the IR code “Minimum Repeats” value TheaterTouch Designer programming software. If the IR code is executed inside a macro which contains multiple IR codes, try inserting a small time delay before the problem code. If there already is a delay, try increasing it.
-
Page 24: Chapter 5. Service And Support
RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. - Page 25 For Technical Support or assistance with your RTI product, contact RTI at: (952) 253-3137 support@rticorp.com www.rticorp.com/support For questions regarding Service or Repair of your RTI product, contact RTI at: (952) 253-3136 service@rticorp.com www.rticorp.com/service Please do not return products to RTI without return authorization.
-
Page 26: Specifications
Specifications Power 3.6 VDC, 1050 mAH Li-Ion Battery Pack Power Management Automatic On/Off (tilt switch) Infrared Control Range 30 Feet (9.1m) @ 60 Degrees Infrared Frequency Range 15kHz – 460kHz Radio Frequency Control Range Up to 100 Feet (30.5m) (with optional receivers) Radio Frequency Carrier 433MHz Operating Temperature... - Page 27 T2+ Universal System Controller Nominal Run Time on Full Charge 5 hours continuous use (10 - 15 days average use) Standby Time on Full Charge 30 Days Battery Charge Time 3-4 Hours Total System Memory 256K Bytes Flash (non-volatile) Device Capability Total number of devices limited only by memory Macro Capability...
- Page 28 ® It’s Under Control R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d 18681 Lake Drive East...
