Summary of Contents for RTI T2-B

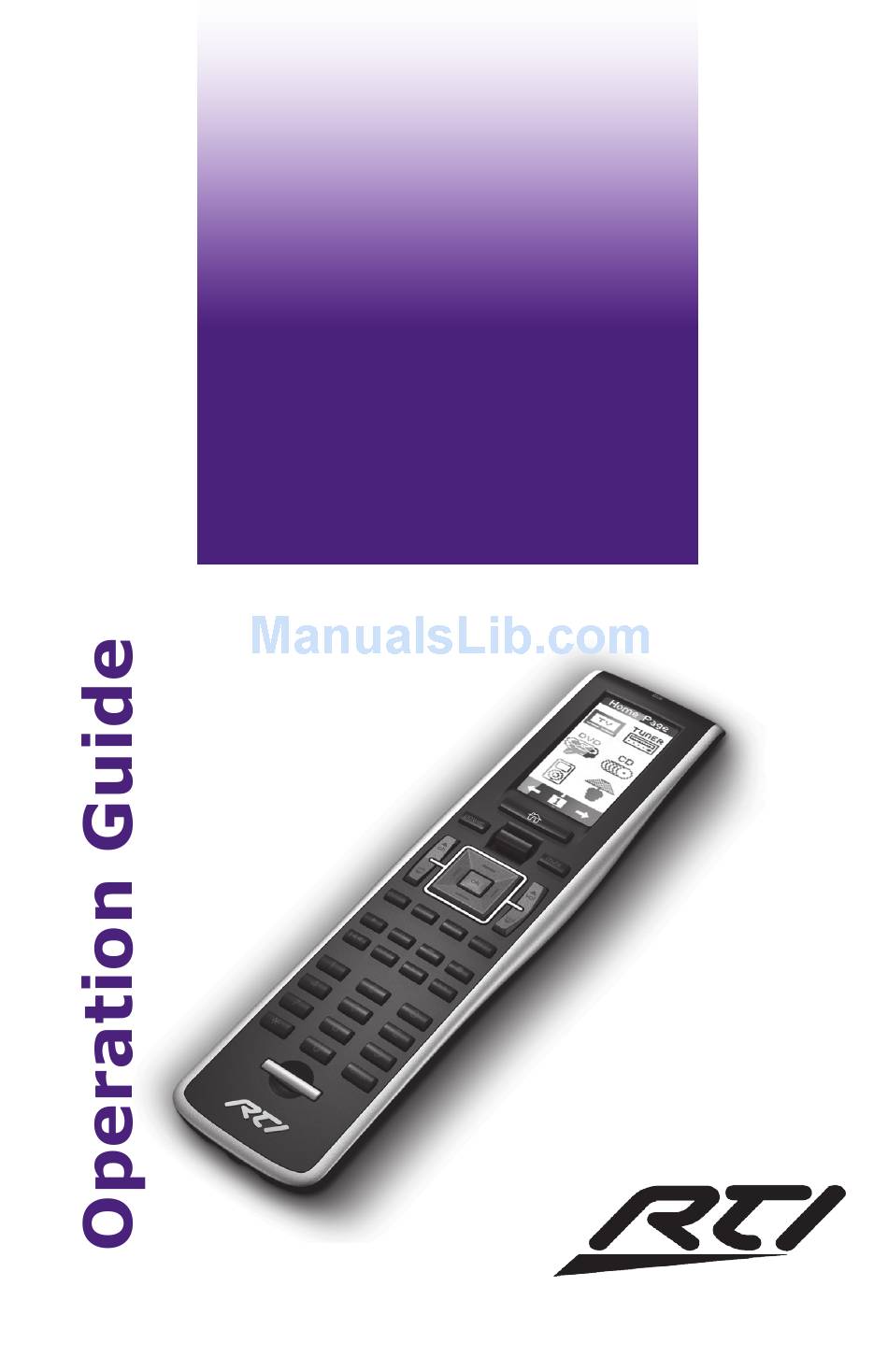

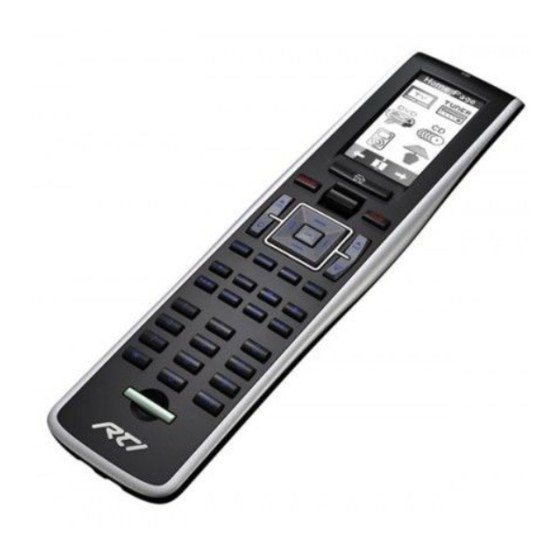

  • Page 1 It’s Under Control It’s Under Control ® ® T2-B Universal System Controller 70-20035-8 V.0...
  • Page 2 T2-B Universal System Controller Copyright © 2008 Remote Technologies Incorporated All rights reserved.
  • Page 3: Federal Communications Commission Notice

    This device must accept any interference received including interference that may cause undesired operation. MMURTI1000 IC (Canada): 3166-RTI1000 117 612 914 DECLARATION OF CONFORMITY (DOC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration...
  • Page 4: Battery Disposal

    T2-B Universal System Controller BATTERY DISPOSAL For environmental reasons, your T2-B Universal System Controller uses “environmentally sound” Lithium-ion rechargeable batteries. These batteries do not contain any poisonous heavy metals that can damage the environment. Li-ion In the interest of recycling, please do not dispose of these batteries in the household waste at the end of their useful life.
  • Page 5 It’s Under Control ® WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.
  • Page 6: Limited Warranty And Disclaimer

    Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. T2-B, Integration Designer, and the RTI logo are registered trademarks of Remote Technologies Incorporated.
  • Page 7: Table Of Contents

    Getting Started ............3 Remote Reference ...........  Docking Station Reference ........ Chapter 3 - Operation ..........17 Programming the T2-B ..........7 The Touchscreen Display .......... 7 The Main Menu ............7 The Control Panel Page ..........8 Adjust Contrast ...........
  • Page 8 T2-B Universal System Controller...
  • Page 9: Chapter 1 - Welcome

    CHAPTER 1 | WELCOME Thank you for purchasing the T2-B Universal System Controller. The T2-B combines the power and flexibility of a graphic LCD touchscreen with an ergonomic design that permits effortless one-handed operation. This design overcomes the need for a compromise between form and function.
  • Page 10: Unpacking And Inspection

    CHAPTER 1 | WELCOME UNPACKING AND INSPECTION After unpacking your new T2-B Universal System Controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the T2-B and packing materials for signs of damage.
  • Page 11: Chapter 2 - Introduction

    Do not use sharp objects on the touchscreen. It is designed to operate with a touch of your finger. Do not let the T2-B get wet. It should not be handled with wet hands or placed in an area where it could get wet.
  • Page 12: Battery And Docking Station

     – 2 months before shutting down. At that point the battery must be recharged. The T2-B Docking Station can be placed on a flat surface such as a shelf or table, or it can be mounted to a wall using the mounting holes on the back of the unit.
  • Page 13: Getting Started

    Next, turn the unit on by sliding the power switch into the “ON” position (toward the battery). The T2-B is turned-on by touching any area of the display or any keypad button. If the tilt sensor is enabled, picking up the unit will also turn it on.
  • Page 14: Remote Reference

    T2-B Universal System Controller CHAPTER 2 | INTRODUCTION REMOTE REFERENCE FRONT IR TRANSMISSION WINDOW LIGHT SENSOR TOUCHSCREEN HOME PAGE DISPLAY BUTTON FRAME SCROLL BUTTONS 3-WAY ROCKER SWITCH KEYPAD BUTTONS BACKLIGHT BUTTON...
  • Page 15 It’s Under Control ® BACK AUDIO SPEAKER LITHIUM-ION BATTERY PACK PROGRAMMING PORT POWER SWITCH DOCKING STATION CONTACTS...
  • Page 16: Docking Station Reference

    T2-B Universal System Controller CHAPTER 2 | INTRODUCTION DOCKING STATION REFERENCE CHARGE CONTACTS CHARGE LED BACK 2-/2 in. (3 mm) WALL MOUNT HOLES WIRE GUIDE POWER JACK...
  • Page 17: Chapter 3 - Operation

    A PC running Windows® 2000 or higher with a USB port is required. The required USB cable is included with the RTI IR-PRO dealer kit. THE TOUCHSCREEN DISPLAY The touchscreen display is organized as a series of pages and frames.
  • Page 18: The Control Panel Page

    T2-B Universal System Controller CHAPTER 3 | OPERATION THE CONTROL PANEL PAGE The Control Panel page can be displayed by pressing and holding the backlight key for at least 3 seconds. You can also access the Control Panel page by assigning a “Control Panel”...
  • Page 19: Beeper

    It’s Under Control ® BEEPER This button displays a window that allows you to turn the audible beep On or Off. The beeper provides feedback that a button was pressed. Press the OK button in the window to close. TIME OUT This button displays a window that allows you to adjust the amount of time the unit stays awake after the last button press.
  • Page 20: Light Sensor

    This button displays a window that allows you to adjust the backlight brightness for the T2-B. If the light sensor is disabled, there is only one backlight level to adjust. Press the left arrow or right arrow buttons in the window to adjust.
  • Page 21: Change Passcode

    It’s Under Control ® CHANGE PASSCODE This button displays a window that allows you to set the passcode that is used to limit access to the Clear All function on the control panel page, as well as the Button Lockout function that is available on all buttons. When you press the Change Passcode button, the screen will prompt you to enter the old passcode using the hard keys, then press the Enter key on the keypad.
  • Page 22: Clear All

    T2-B Universal System Controller CHAPTER 3 | OPERATION CLEAR ALL This button displays a window that will allow you to erase the current program in the remote. When the button is pressed, you will be prompted to enter the current passcode. If the proper code is entered, the entire program in the remote will be erased.
  • Page 23: Chapter 4 - Specifications

    It’s Under Control ® CHAPTER 4 | SPECIFICATIONS Power 3. VDC, 200 mAh Lithium-Ion Battery Pack Power Management Automatic On/Off (tilt switch) Infrared Control 30 feet (9. meters) @ 0 degrees Range Infrared Frequency 5 kHz - 0 khz Transmission Range Radio Frequency Up to 00 feet (30.5 meters) Control Range...
  • Page 24 T2-B Universal System Controller...
  • Page 25: Chapter 5 - Troubleshooting

    USB COMMUNICATIONS PROBLEMS Verify that your PC is running Windows® 2000 or higher. Verify that the T2-B USB driver was installed the first time the T2-B was connected to your PC. Verify that the T2-B is present in the Device Manager within the Windows®...
  • Page 26 T2-B Universal System Controller...
  • Page 27: Chapter 6 - Service And Support

    Fax (952) 253-33 info@rticorp.com RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail.
  • Page 28 SERVICE AND SUPPORT Shipment of T2-B for Service RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination.
  • Page 29: Index

    Safety Suggestions ................  Service and Support ..............27 Contacting RTI ................. 27 RTI Technical Support ............... 27 Shipment of T2-B for Service ............28 Software Requirements ..............9 Specifications ................23 Touchscreen Displays ..............7 Adjust Contrast ............... 8 Backlight Level .................
  • Page 30 T2-B Universal System Controller It’s Under Control ® Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 Fax: 952-523-3131 www.rticorp.com © 2008 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
