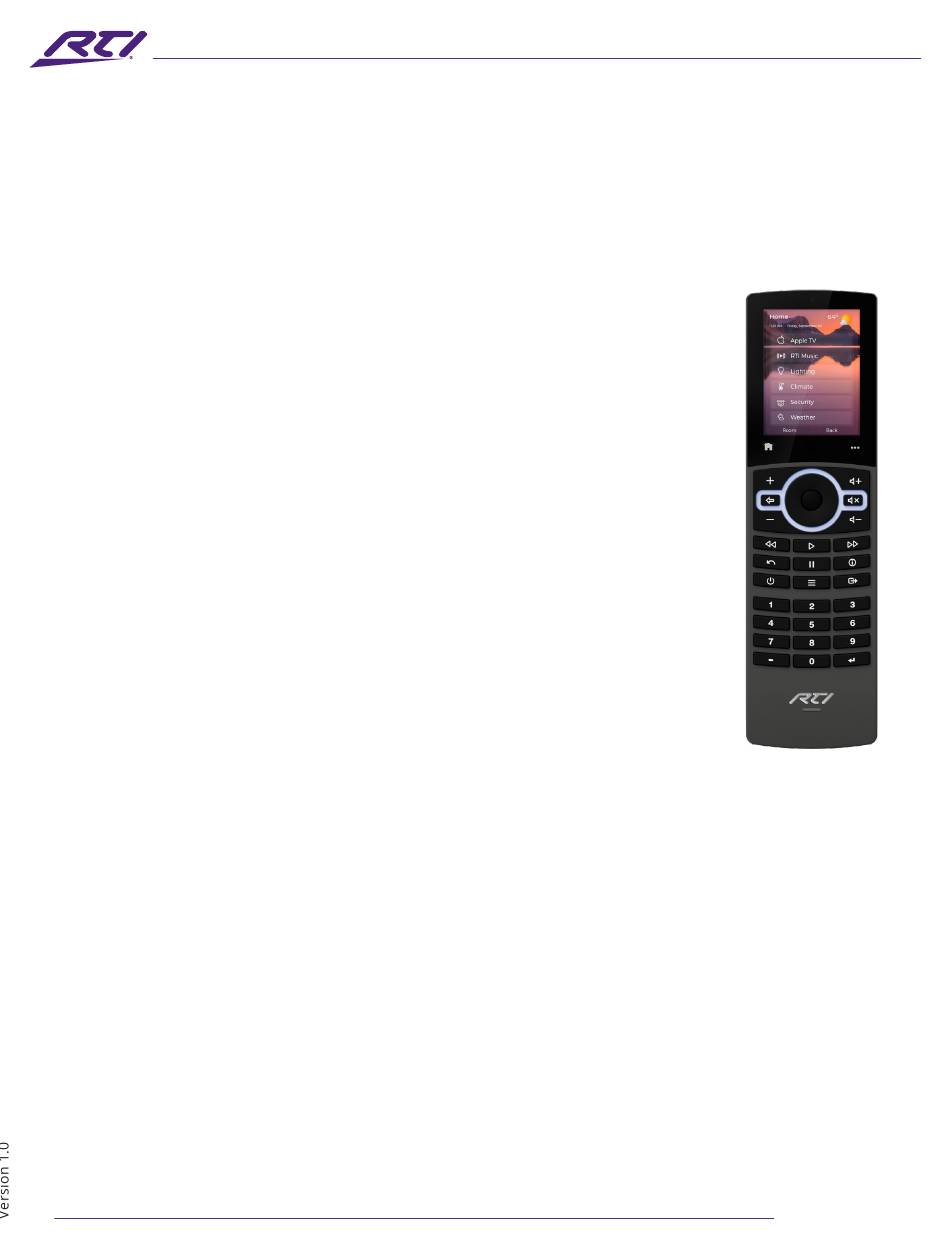

2.8" Intelligent Surface Remote Control

Featuring an edge-to-edge glass with capacitive touchscreen set within a

premium aluminum frame, the ISR-2 blends art and engineering to deliver the

ultimate media control experience.

The vibrant 2.8" touchscreen display pairs with a numeric keypad and soft-touch

buttons, a thoughtful balance ensuring seamless control for any media system.

The intuitive 5-way thumbpad, full transport controls, and carefully selected soft-

touch buttons offer real-time haptic feedback, making every command precise

and responsive.

The ISR-2 features advanced Wi-Fi technology for instant and reliable network

connectivity. Plus, its built-in accelerometer activates the remote as soon as it's

picked up, ensuring it's always ready for action without any delay. The ambient

light sensor automatically adjusts the display brightness to match the room's

lighting conditions for optimal visibility.

The ISR-2 intelligently hibernates when not in use, delivering up to 6-7 days of

battery life between charges with typical use. Plus, the included charging base

ensures the remote is always ready when you need it.

Key Features

• Flush-mount, 2.8" capacitive LCD touchscreen (240x320).

• Thin, sleek design with superb ergonomics.

• Integrated 802.11b/g/n wireless Ethernet enables viewing MJPEG

video, wireless program updates, enhanced two-way control and

more.

• Accelerometer provides "instant-on" control.

• Thirty-two assignable/programmable keypad buttons for

commonly used functions.

• Two individually illuminated programmable capacitive buttons on

the touchscreen.

• Cursor button allows simple scrolling list navigation.

• System includes a Lithium-Polymer battery and charging base.

• Extremely wide IR transmitting frequency range.

ISR-2

Reference Guide

INTELLIGENT SURFACES, ISR-2

Product Contents

• ISR-2 Remote Control

• ISR-SB Base Station

• International Power Supply Kit

(5V, 2A)
