Related Manuals for RTI RP-6
Summary of Contents for RTI RP-6

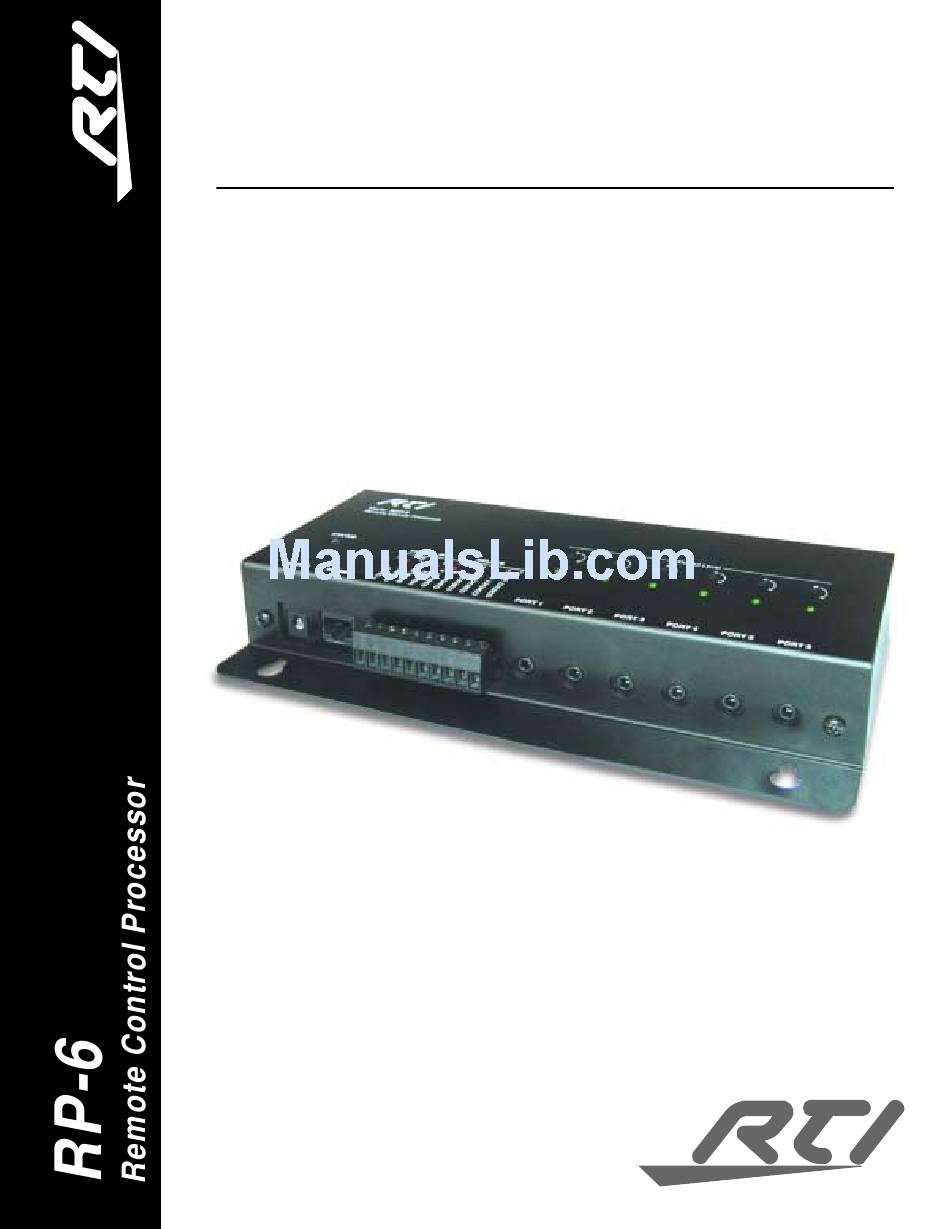

- Page 1 RP-6 Operation & Installation Guide v1.0...
- Page 2 RP-6 Remote Control Processor FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Safety Suggestions
SAFETY SUGGESTIONS Read Instructions. Read all safety and operating instructions before operating the unit. Retain Instructions. Keep the safety and operating instructions for future reference. Heed Warnings. Adhere to all warnings on the unit and in the operating instructions. Follow Instructions. Follow operating instructions and instructions for use. Heat. -
Page 4: Limited Warranty And Disclaimer
Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. RP-6, It’s Under Control, TheaterTouch, and the RTI logo are registered trademarks of Remote Technologies Incorporated. -
Page 5: Table Of Contents
The Expansion Port ........................12 CHAPTER 5. TROUBLESHOOTING ................13 RP-6 Does Not Function Properly....................13 Power Sensor Modules are Not Functioning ................13 RP-6 USB Programming Port Does Not Work ................13 CHAPTER 6. SERVICE AND SUPPORT..............15 Contacting RTI ..........................15 RTI Technical Support ........................15 Shipment of RP-6 for Service .....................16... - Page 6 RP-6 Remote Control Processor...
-
Page 7: Chapter 1. Welcome
RTI’s remote control interface products. It is also possible to trigger the stored commands by using third-party remote controls. The RP-6 is flexible enough to be the perfect control system in a small room with just a few connected devices, or in a much larger system with dozens of devices integrated into an affordable, easy to use system. -
Page 8: Product Contents
Four (4) Rubber feet UNPACKING AND INSPECTION After unpacking your new RP-6 Remote Control Processor, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the RP-6 and packing materials for signs of damage. Report any damage to the carrier immediately. -
Page 9: Chapter 2. Introduction
Chapter 2. Introduction Chapter 2. Introduction FEATURES The RP-6 provides superior quality and reliability as well as these specific features: • Six multi-purpose output ports. • Variable IR output power on all ports. • Output ports support the optional RTI Modules (Power Sensing Modules, RS-232 Communication Modules, etc.). -
Page 10: Reference
RS-485 Expansion Port Six (6) Multi-Purpose Output Ports Removable Header for Connection to IR Receivers, IR Keypads, RTI RF Receivers, & Contact Closures. RP-6 CONNECTION OPTIONS The following diagram shows just some of the common connection scenarios. There is a... - Page 11 Chapter 2. Introduction Model RP-6 Remote Control Processor IR Output Level STATUS RELAYS POWER EXPANSION PORT 1 PORT 2 PORT 3 PORT 4 PORT 5 PORT 6 RP-6 Power Supply Each IR output can drive up to four emitters directly.
-
Page 12: Removable Header Terminal Description
+12VDC, GROUND, SIGNAL IN, OR HIGH OUT terminals. Input connection for system trigger codes. This should be connected to a RTI RF receiver SIGNAL IN or industry standard IR repeater system. The signal voltage can be from 3VDC – 12VDC. -
Page 13: Chapter 3. Installation
Chapter 3. Installation Chapter 3. Installation INSTALLATION LOCATION For best results install the RP-6 at least three (3) feet away from video monitors and other sources of strong electro-magnetic energy. IRF-6 Model RP-6 Remote Control Processor IR Outp ut Level... -
Page 14: Mounting
RP-6 Remote Control Processor MOUNTING The RP-6 can be mounted on either a shelf or a wall (see Appendix A for mounting hole details). Since the IR output ports can drive up to 1000 feet of wire, and the optional Power Sensor and Communication Modules can be extended, the RP-6 does not need to be mounted near the equipment being controlled. -
Page 15: Connecting Rf Receivers
If the RP-6 sees an incoming system trigger code with a matching zone ID, it will execute the command or macro associated with that code. The RP-6 can be programmed to either block or pass miscellaneous IR data through it’s output ports. - Page 16 RP-6 Remote Control Processor...
-
Page 17: Chapter 4. Operation
Chapter 4. Operation ADJUSTING IR OUTPUT GAIN The IR output gain can be separately adjusted for each of the six output ports. The RP-6 is shipped with the IR gain set to the optimum level for most equipment, and it should only need to be adjusted if the attached equipment is not responding reliably. -
Page 18: Setting The Zone Code
RP-6 Remote Control Processor SETTING THE ZONE CODE If the RP-6 is installed in close proximity to others, the system Zone Code can be changed in the TheaterTouch™ Designer software. This allows up to 256 separate control systems to operate in the same general area such as multi dwelling units or homes with more than one media system. -
Page 19: Chapter 5. Troubleshooting
RTI technical support. RP-6 DOES NOT FUNCTION PROPERLY Verify that the USB cable is removed from either the RP-6 or the PC. The RP-6 will not function normally while there is an active USB connection with a PC. Verify the RP-6 is receiving a signal from an attached IR or RF receiver. The Signal In LED should flash when a signal is present. - Page 20 RP-6 Remote Control Processor...
-
Page 21: Chapter 6. Service And Support
Fax (952) 253-3131 info@rticorp.com RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. -
Page 22: Shipment Of Rp-6 For Service
Please do not return products to RTI without return authorization. SHIPMENT OF RP-6 FOR SERVICE RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination. -
Page 23: Chapter 7. Specifications
Six (6) Multi-Purpose ports One (1) High Power IR port Multi-Purpose Output Ports: Custom 3.5mm 4-conductor jacks are designed for RTI Modules as well as industry standard IR emitters. IR Output Drive: 100mA maximum (per port, adjustable) 200mA maximum (high IR output port) - Page 24 RP-6 Remote Control Processor...
-
Page 25: Appendix A. Mounting Hole Pattern
Appendix A. Mounting Hole Pattern Appendix A. Mounting Hole Pattern 4-3/8 in (111 mm) - Page 26 RP-6 Remote Control Processor...
-
Page 27: Index
Safety suggestions, iii Signal In, Terminal description, 6 —G— Specifications, 17 Ground, Terminal description, 6 —T— —H— Technical Support. See Contacting RTI High Out. See IR Troubleshooting, 13 High Out, Terminal description, 6 —U— —I— Unpacking, 2 Impotant notes, 1 Installation, 7 —W—... - Page 30 ® It’s Under Control R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d 18681 Lake Drive East...
