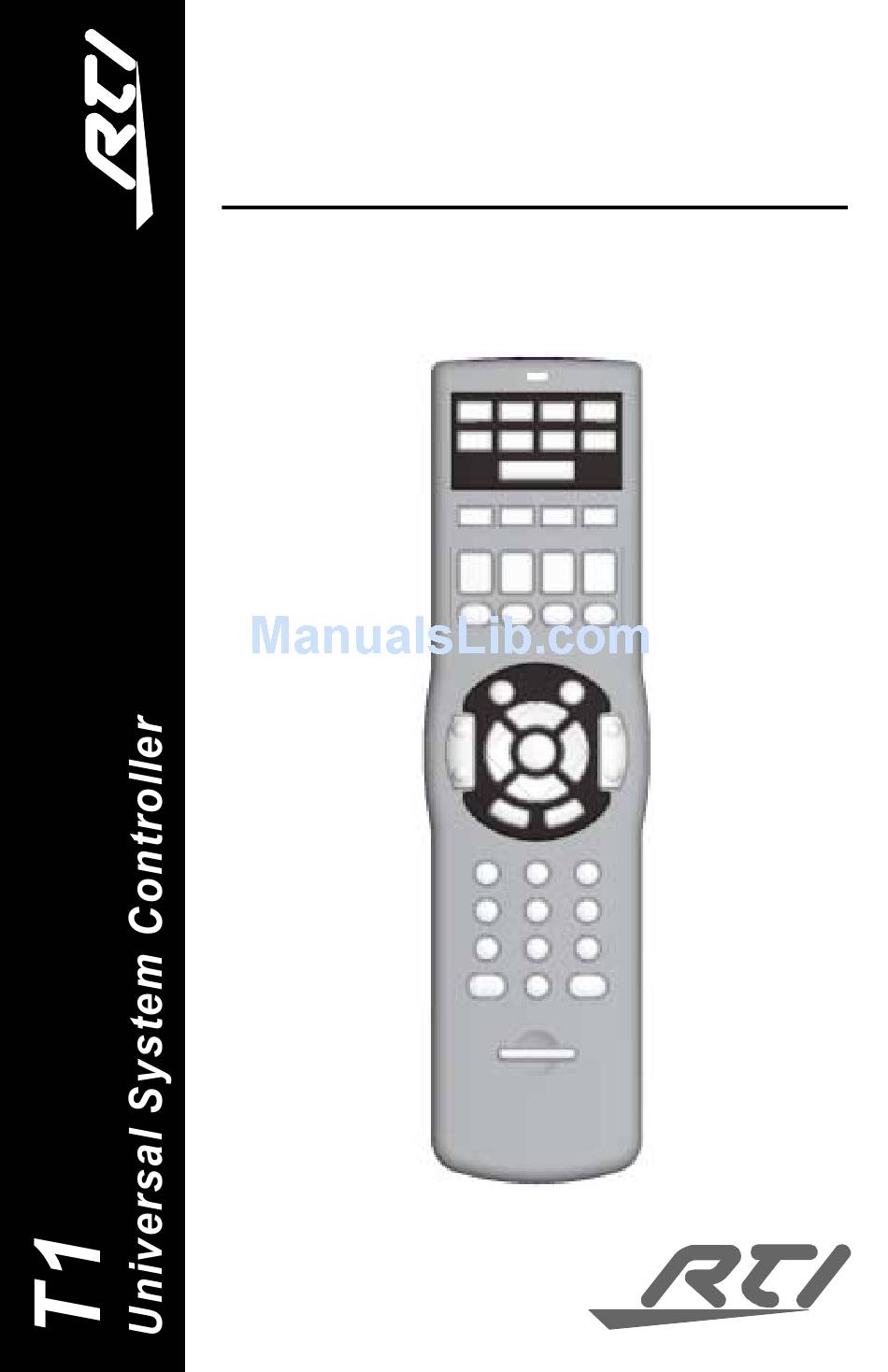

- Page 1 Operation Guide v1.0...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,...
-
Page 3: Battery Disposal
T1 Universal System Controller BATTERY DISPOSAL For environmental reasons, your T1 universal system controller uses “environmentally sound” Lithium-ion rechargeable batteries. These batteries do not contain any poisonous heavy metals that can damage the Li-ion environment. In the interest of recycling, please do not dispose of these batteries in the household waste at the end of their useful life. -
Page 4: Limited Warranty
Servicing. Do not attempt any service beyond that described in the operating guide. Refer all other service needs to qualified service personnel. Damage Requiring Service. The unit should be serviced by qualified service personnel when: • The power supply cord or the plug has been damaged. •... -
Page 5: Disclaimer
Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. T1, It’s Under Control, TheaterTouch, and the RTI logo are trademarks of Remote Technologies Incorporated. -
Page 6: Table Of Contents
Important Notes ------------------------------------------------------------4 Cleaning ----------------------------------------------------------------------4 Battery and Docking Station ---------------------------------------------5 Getting Started --------------------------------------------------------------5 Remote Reference ----------------------------------------------------------7 Docking Station Reference -----------------------------------------------7 Docking Station Reference -----------------------------------------------8 Chapter 3. Operation------------------------------------------------------- 9 The Source Buttons---------------------------------------------------------9 Using The Keycap Labels-------------------------------------------------9 Programming The T1 ---------------------------------------------------- 10... - Page 7 T1 Universal System Controller Chapter 4. Troubleshooting -------------------------------------------- 11 USB Communication Problems --------------------------------------- 11 IR Code Problems -------------------------------------------------------- 11 Chapter 5. Service and Support--------------------------------------- 13 Updates and New Products-------------------------------------------- 13 Contacting Remote Technologies Incorporated ------------------- 13 RTI Technical Support -------------------------------------------------- 13...
-
Page 8: Chapter 1. Welcome

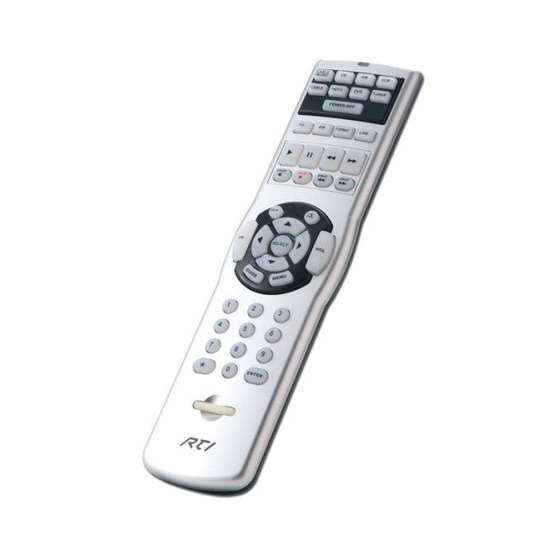

RTI’s T2+ controller, but replaces the touchpanel display with 21 additional keypad buttons. The T1 takes complete control of the home theater, replacing all other remotes. It features eight source buttons and four general purpose buttons with interchangeable keycaps. In addition to the 12 keycap buttons, 34 backlit keypad buttons allow easy access to frequently used functions. -
Page 9: Unpacking And Inspection
T1 Universal System Controller UNPACKING AND INSPECTION After unpacking your new T1 universal system controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the T1 and packing materials for signs of damage. -
Page 10: Chapter 2. Introduction
Chapter 2. Introduction FEATURES The T1 provides superior quality and reliability as well as these specific features: A replacement for all of the remote controls in a home theater. The T1 can reproduce all of the commands of almost any other infrared remote control. -
Page 11: Important Notes
The T1 should be placed in an area where it is around normal room temperature (between 60°F to 90°F). Do not let the T1 get wet. It should not be handled with wet hands or placed in an area where it could get wet. -
Page 12: Battery And Docking Station
Since the T1 can safely be charged after each use, a docking station is included for convenience. If left out of the docking station, the T1 will remain in sleep mode for 1 – 2 months before shutting down. At that point the battery must be recharged. - Page 13 T1 Universal System Controller The T1 is powered-up by touching any area of the display or any keypad button. If the tilt sensor is enabled, picking up the unit will also turn it on.
-
Page 14: Remote Reference
Introduction REMOTE REFERENCE IR Transmission Window Source (8) Keycap Buttons General Purpose (4) Keycap Buttons Lithium-ion Battery Pack Pre-defined Keypad Buttons Programming Port Backlight Button Docking Station Contacts Back Front... -
Page 15: Docking Station Reference
T1 Universal System Controller DOCKING STATION REFERENCE Front Charge Contacts Charge LED 1-3/8 in. (35mm) Back Wall Mount Power Jack Holes Wire Guide... -
Page 16: Chapter 3. Operation
Chapter 3. Operation THE SOURCE BUTTONS The eight source buttons at the top of the T1 keypad have a special function, so they behave differently from the other buttons. These buttons are used to select the active source “page”. Whenever a source button is selected, all of the other buttons on the keypad will switch to the programming associated with that page. -
Page 17: Programming The T1
The required USB cable is included with the RTI IR-PRO dealer kit. Note: The T1 will not operate normally while connected to a PC’s USB port. Make sure you disconnect it from the PC to navigate pages or transmit commands. In addition, the T1 will not be able to sync with a PC’s USB port while it is... -
Page 18: Chapter 4. Troubleshooting
Make sure you are using the programming cable that was supplied by RTI and that both ends are connected securely. Make sure the PC detects the presence of the T1. If it doesn’t, unplug the USB cable, wait for about ten seconds, and plug it in again. - Page 19 T1 Universal System Controller...
-
Page 20: Chapter 5. Service And Support
RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. - Page 21 For Technical Support or assistance with your RTI product, contact RTI at: (952) 253-3137 support@rticorp.com www.rticorp.com/support For questions regarding Service or Repair of your RTI product, contact RTI at: (952) 253-3136 service@rticorp.com www.rticorp.com/service Please do not return products to RTI without return authorization.
-
Page 22: Specifications
Specifications Power 3.6 VDC, 1050 mAH Li-Ion Battery Pack Power Management Automatic On/Off (tilt switch) Infrared Control Range 30 Feet (9.1m) @ 60 Degrees Infrared Frequency Range 15kHz – 460kHz Radio Frequency Control Range Up to 100 Feet (30.5m) (with optional receivers) Radio Frequency Carrier 433MHz Operating Temperature... - Page 23 T1 Universal System Controller Macro Capability Up to 64 steps per macro Total number of macros limited only by memory Macros allowed on every button Communications USB programming port Dimensions Length: 9.3 in. (235mm) Width: 2.5 in. (64mm) Height: 1.1 in. (28mm)
- Page 24 ® It’s Under Control R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d 18681 Lake Drive East...
