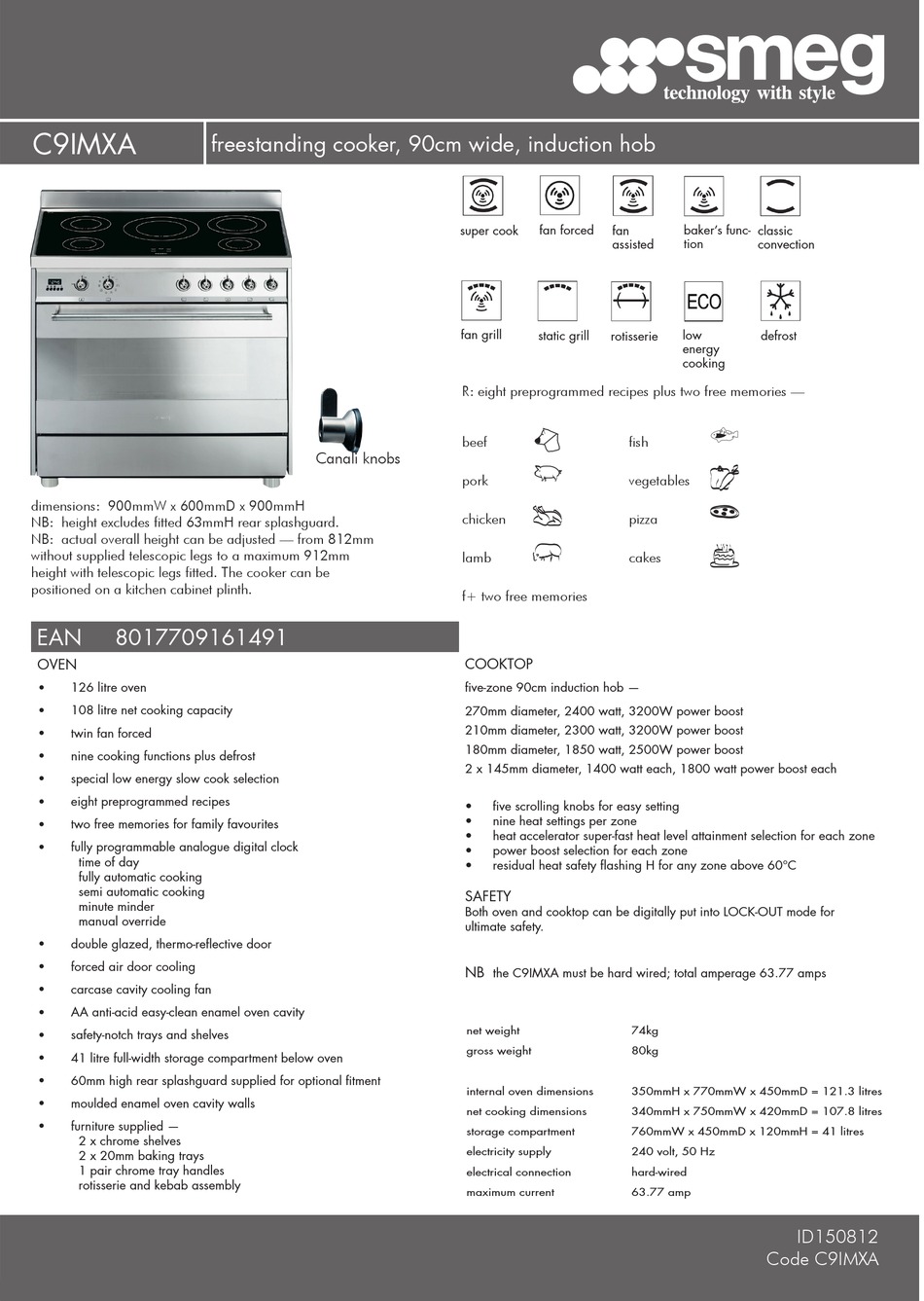

Smeg C9IMXA Specifications
Smeg C9IMXA Specifications

Smeg C9IMXA Specifications

Freestanding cooker, 90cm wide, induction hob
Hide thumbs Also See for C9IMXA:

Advertisement

Quick Links

C9IMXA
dimensions: 900mmW x 600mmD x 900mmH
NB: height excludes fitted 63mmH rear splashguard.
NB: actual overall height can be adjusted — from 812mm
without supplied telescopic legs to a maximum 912mm
height with telescopic legs fitted. The cooker can be
positioned on a kitchen cabinet plinth.
EAN
8017709161491
OVEN
126 litre oven
108 litre net cooking capacity
twin fan forced
nine cooking functions plus defrost
special low energy slow cook selection
eight preprogrammed recipes
two free memories for family favourites
fully programmable analogue digital clock
time of day
fully automatic cooking
semi automatic cooking
minute minder
manual override
double glazed, thermo-reflective door
forced air door cooling
carcase cavity cooling fan
AA anti-acid easy-clean enamel oven cavity
safety-notch trays and shelves
41 litre full-width storage compartment below oven
60mm high rear splashguard supplied for optional fitment
moulded enamel oven cavity walls
furniture supplied —
2 x chrome shelves
2 x 20mm baking trays
1 pair chrome tray handles
rotisserie and kebab assembly
freestanding cooker, 90cm wide, induction hob
Canali knobs
super cook
fan forced
fan
assisted
fan grill
static grill
rotisserie
R: eight preprogrammed recipes plus two free memories —
beef
fish
pork
vegetables
chicken
pizza
lamb
cakes
f+ two free memories
COOKTOP
five-zone 90cm induction hob —
270mm diameter, 2400 watt, 3200W power boost
210mm diameter, 2300 watt, 3200W power boost
180mm diameter, 1850 watt, 2500W power boost
2 x 145mm diameter, 1400 watt each, 1800 watt power boost each
five scrolling knobs for easy setting
nine heat settings per zone
heat accelerator super-fast heat level attainment selection for each zone
power boost selection for each zone
residual heat safety flashing H for any zone above 60°C
SAFETY
Both oven and cooktop can be digitally put into LOCK-OUT mode for
ultimate safety.
NB
the C9IMXA must be hard wired; total amperage 63.77 amps
net weight
74kg
gross weight
80kg
internal oven dimensions
350mmH x 770mmW x 450mmD = 121.3 litres
net cooking dimensions
340mmH x 750mmW x 420mmD = 107.8 litres
storage compartment
760mmW x 450mmD x 120mmH = 41 litres
electricity supply
240 volt, 50 Hz
electrical connection
hard-wired
maximum current
63.77 amp
baker's func-
classic
tion
convection
low
defrost
energy
cooking
ID150812
Code C9IMXA
