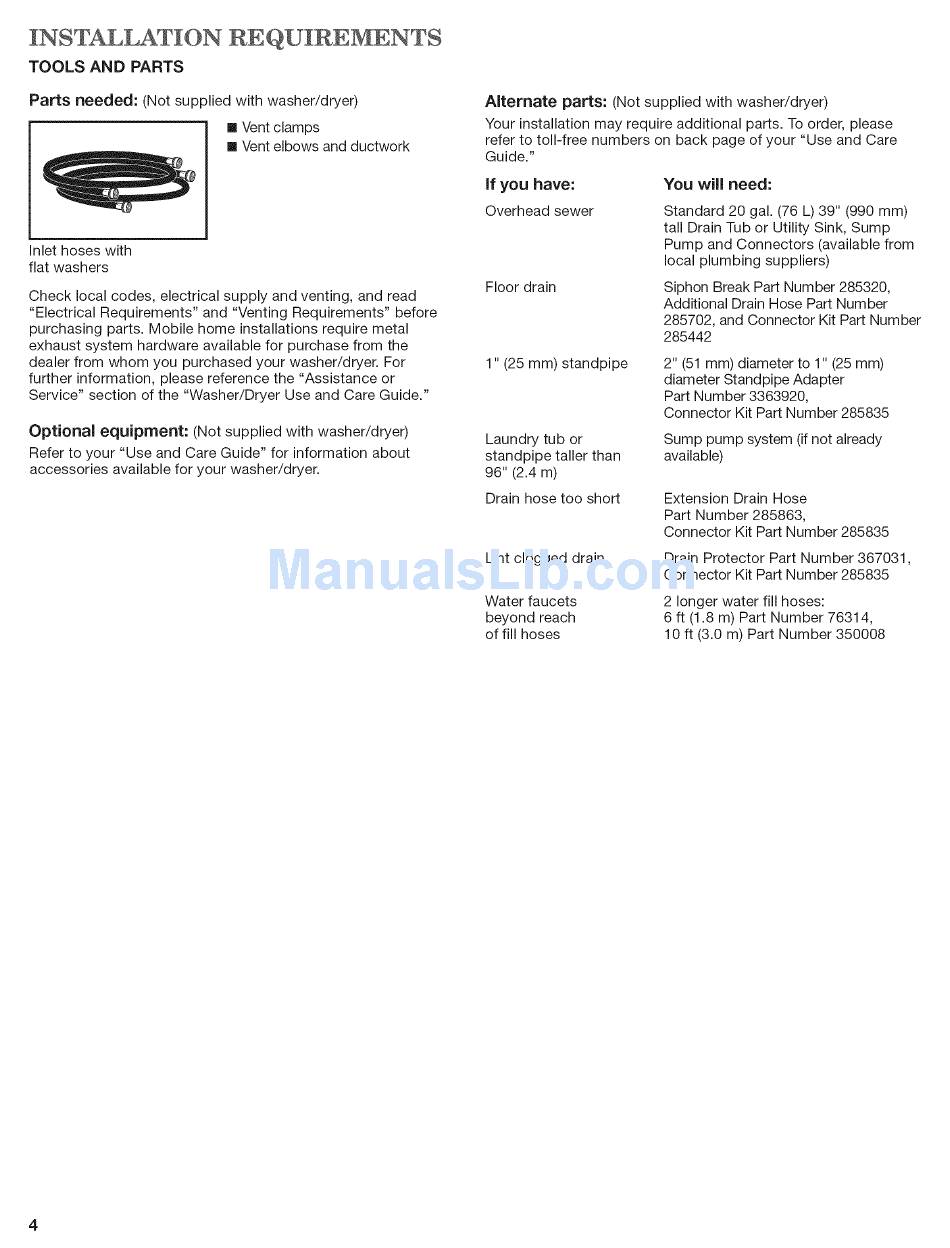

INSTALLATION
REQUIREMENWS
TOOLS
AND
PARTS
Parts needed:
(Not supplied with washer/dryer)
[] Vent clamps
[] Vent elbows and ductwork
Inlet hoses with
flat washers
Check local codes, electrical supply and venting, and read
"Electrical Requirements"
and "Venting Requirements"
before
purchasing parts. Mobile home installations require metal
exhaust system hardware available for purchase from the
dealer from whom you purchased your washer/dryer.
For
further information, please reference the "Assistance
or
Service" section of the "Washer/Dryer
Use and Care Guide."
Optional
equipment:
(Not supplied with washer/dryer)
Refer to your "Use and Care Guide" for information
about
accessories
available for your washer/dryer.
Alternate
parts:
(Not supplied with washer/dryer)
Your installation may require additional parts. To order, please
refer to toll-free numbers on back page of your "Use and Care
Guide."
If you have:
Overhead sewer
Floor drain
You will need:
Standard 20 gal. (76 L) 39" (990 mm)
tall Drain Tub or Utility Sink, Sump
Pump and Connectors (available from
local plumbing suppliers)
Siphon Break Part Number 285320,
Additional Drain Hose Part Number
285702, and Connector Kit Part Number
285442
1" (25 mm) standpipe
2" (51 mm) diameter to 1" (25 mm)
diameter Standpipe Adapter
Part Number 3363920,
Connector Kit Part Number 285835
Laundry tub or
standpipe taller than
96" (2.4 m)
Drain hose too short
Sump pump system (if not already
available)
Extension Drain Hose
Part Number 285863,
Connector Kit Part Number 285835
Lint clogged drain
Drain Protector Part Number 367031,
Connector Kit Part Number 285835
Water faucets
beyond reach
of fill hoses
2 longer water fill hoses:
6 ft (1.8 m) Part Number 76314,
10 ft (3.0 m) Part Number 350008
4
