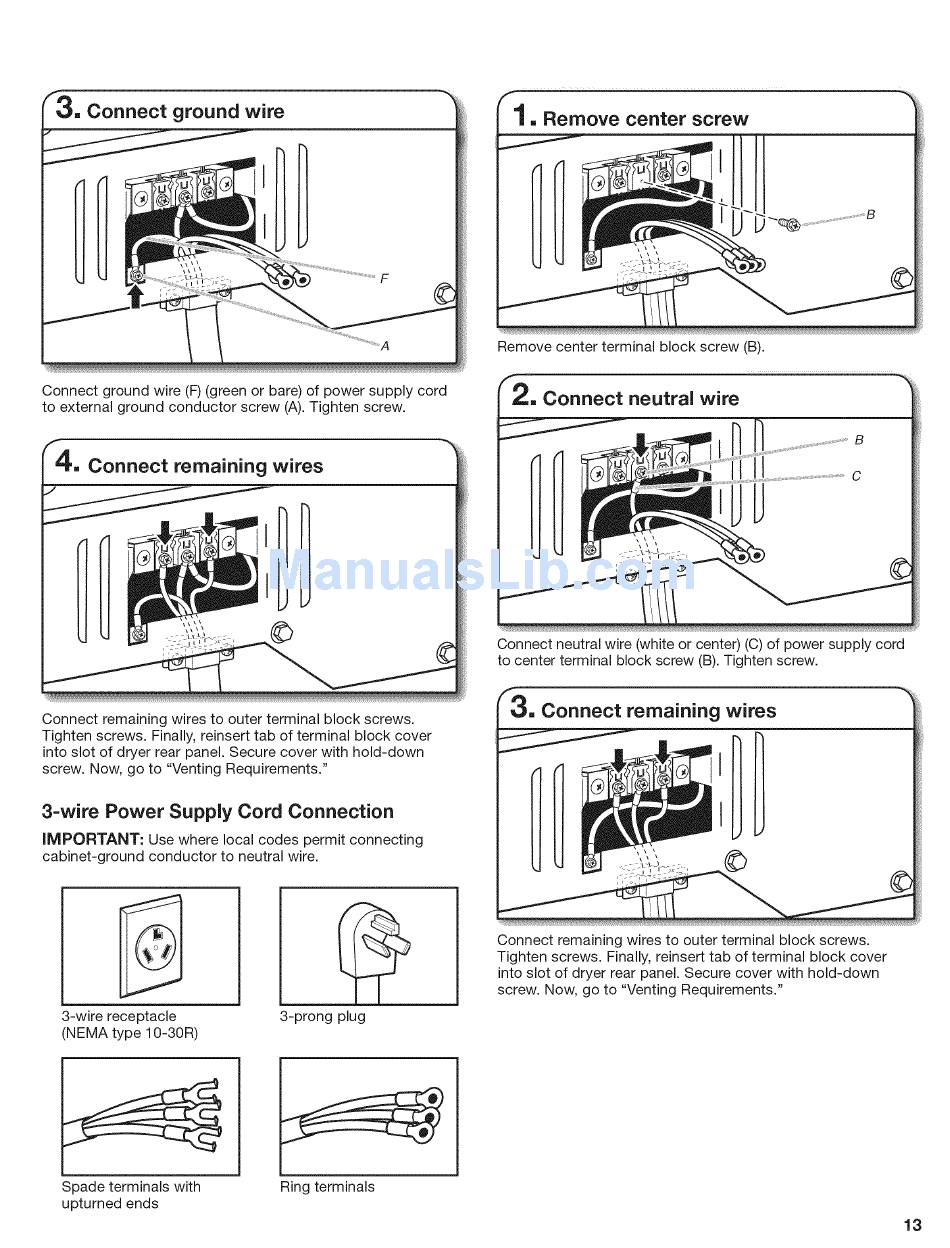

Whirlpool MET3800XW0 Installation Instructions Manual page 13

A
Connect ground wire (F) (green or bare) of power supply cord
to external ground conductor screw (A). Tighten screw.
Remove center terminal block screw (B).
B
C
Connect neutral wire (white or center) (C) of power supply cord
to center terminal block screw (B). Tighten screw.
Connect remaining wires to outer terminal block screws.
Tighten screws. Finally, reinsert tab of terminal block cover
into slot of dryer rear panel. Secure cover with hold-down
screw. Now, go to "Venting Requirements."
3-wire Power Supply Cord Connection
iMPORTANT: Use where local codes permit connecting
cabinet-ground conductor to neutral wire.
3-wire receptacle
(NEMA type 10-30R)
3-prong plug
Connect remaining wires to outer terminal block screws.
Tighten screws. Finally, reinsert tab of terminal block cover
into slot of dryer rear panel. Secure cover with hold-down
screw. Now, go to "Venting Requirements."
Spade terminals with
upturned ends
Ring terminals
13
