QuickSpecs
Overview

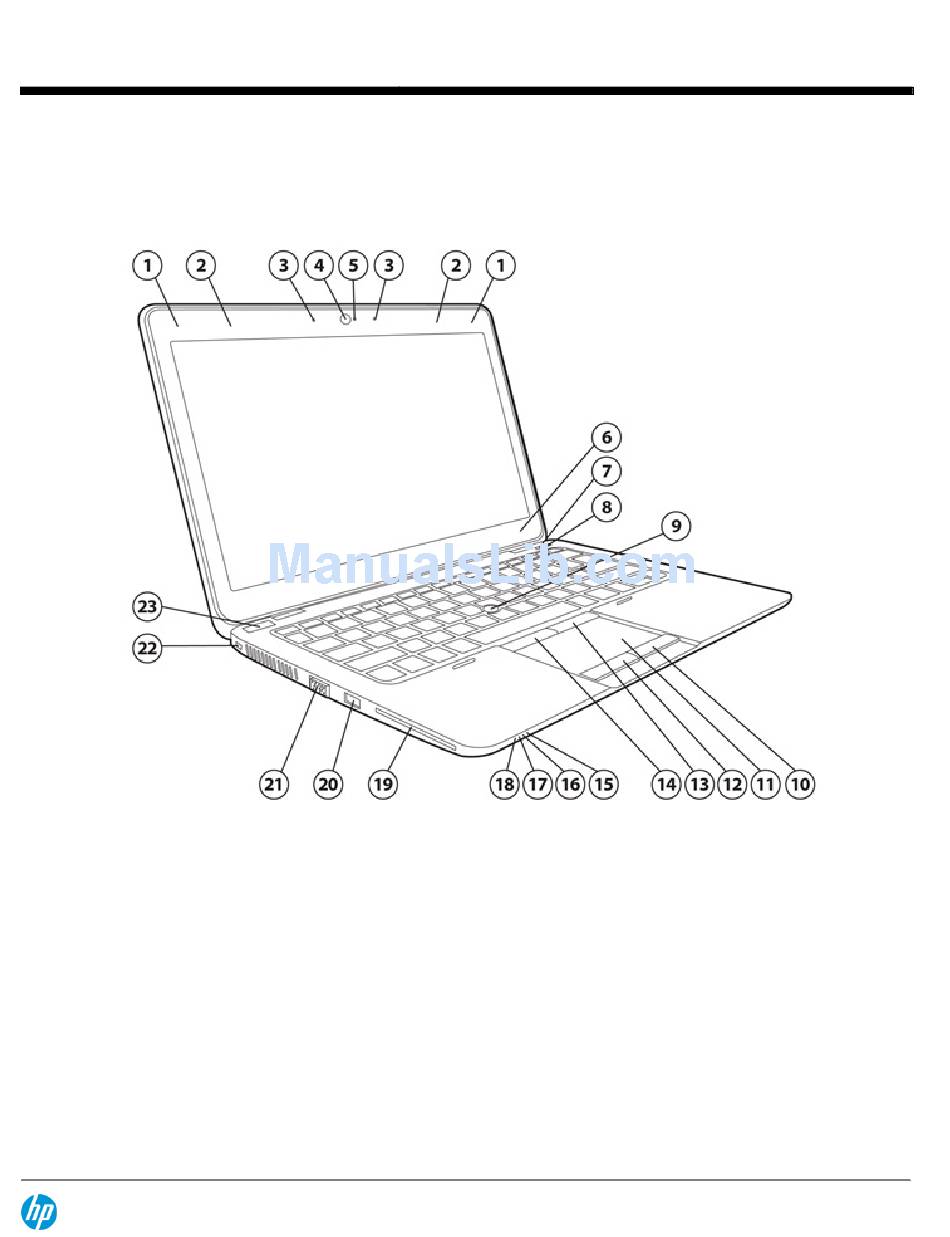

HP EliteBook 820 Notebook PC
1.
WLAN antennas (2)
2.
WWAN antennas (2)
3.
Internal microphones (2)
4.
Webcam (select models only)
5.
Webcam light (select models only)
6.
Internal display switch
7.
Wireless button
8.
Volume mute button
9.
Pointstick
10. Right TouchPad button
11. TouchPad zone
12. Left TouchPad button
Front/Left
DA - 14687 Worldwide — Version 11 — March 4, 2014
HP EliteBook 820 G1 Notebook PC
HP EliteBook 840 G1 Notebook PC
HP EliteBook 850 G1 Notebook PC
13. Right pointing stick button
14. Left pointing stick button
15. Hard drive light
16. AC adapter/Battery light
17. Power light
18. Wireless light
19. Smart card reader
20. USB 3.0 charging port
21. External VGA monitor port
22. Security cable slot
23. Power button
Page 1
