Vertical mounting

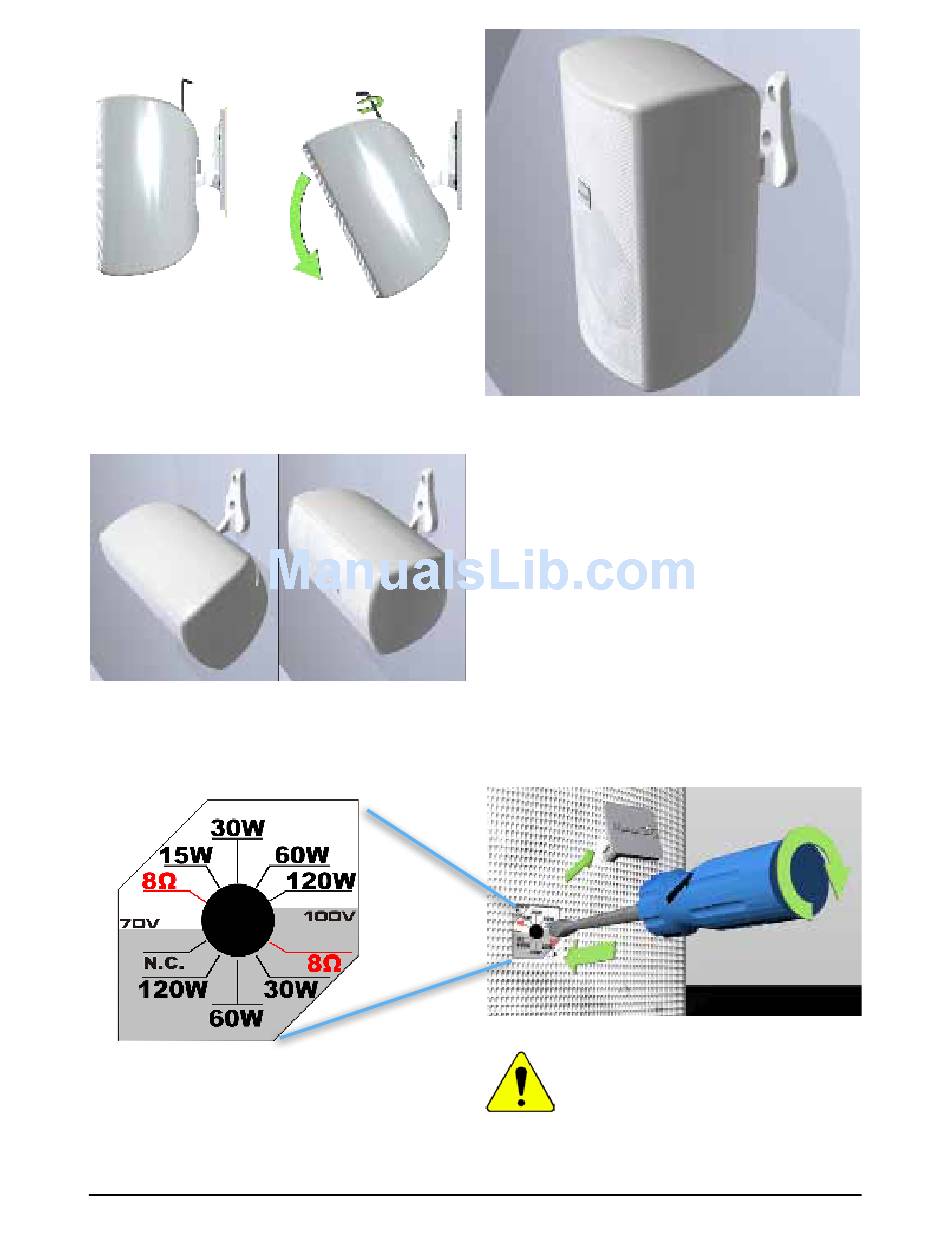

5. Adjust the cabinet position by rotating and
tilting as desired. Then firmly tighten the
locking screw with the provided hex wrench.
Horizontal mounting
Note: This enlarged label shows the
70-volt/100-volt and 8-ohm power tap
settings for the DS8. With 100-volt
distribution, do not use the N.C. setting.
Community Distributed Design Series
Surface Mount Loudspeakers
6. Using a small slot-blade screwdriver (like
the one provided) you can pry the logo plate
out a few millimeters, then rotate it 90° and
press it back in place so it reads correctly for
horizontal or vertical mounting.
7. Once you have connected the wiring (next
page), you can also remove the logo plate for
access to the recessed tap-adjustment screw
which you can use to set the power level for
the individual loudspeaker as shown below.
Note: The tap switch can only be
adjusted using a flat-blade screw-
driver such as the one provided with
the loudspeaker.
Installation and Operation Manual Page 8
