Infin-A-Ball™ Mounting System
Community's Infin-A-Ball™ (IAB) mount-
ing system allows low-profile mounting and
precise aiming over a broad tilt–swivel range.
The IAB ball-mount receptacle is factory pre-
attached to a recess in the cabinet, and after
placing the loudspeaker onto the IAB bracket,
you need only to twist the included hex
wrench to lock any position. The IAB bracket
has factory-installed internal wiring with an
internal 4-terminal Euroblock connector in
its base (for neat loop-through connections)
and a 2-pin male Euroblock plug near the
ball end for connection to the cabinet. An
IP56 wiring cover is also pre-installed, pro-
viding snap-on weather-resistant protection.

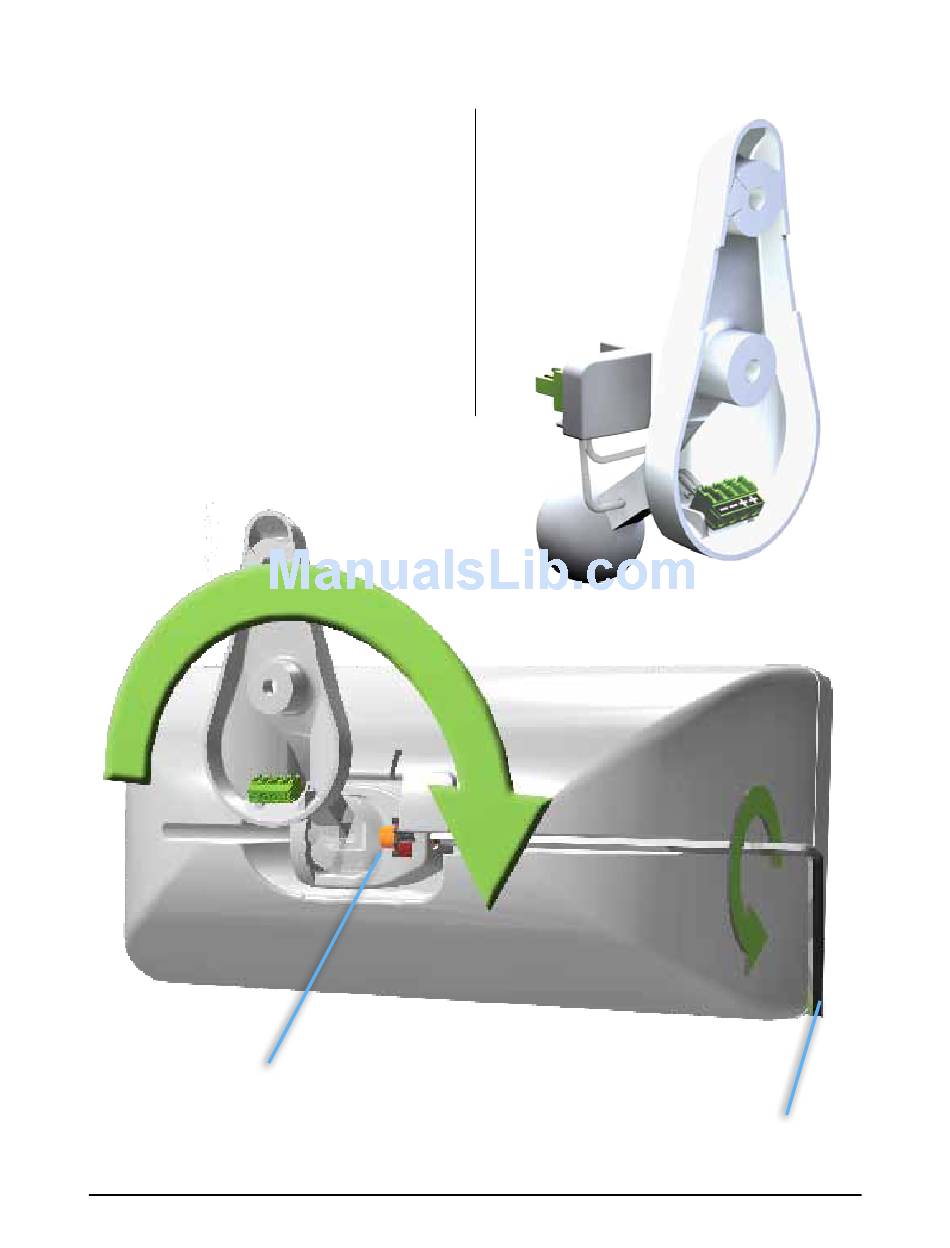

Actual clamping screw
pressed against ball end
of IAB bracket.
Community Distributed Design Series
Surface Mount Loudspeakers
Loosen clamp using provided hex wrench,
rotate loudspeaker cabinet to desired
position, then tighten clamp to lock
Installation and Operation Manual
Page 6
