QuickSpecs
Overview

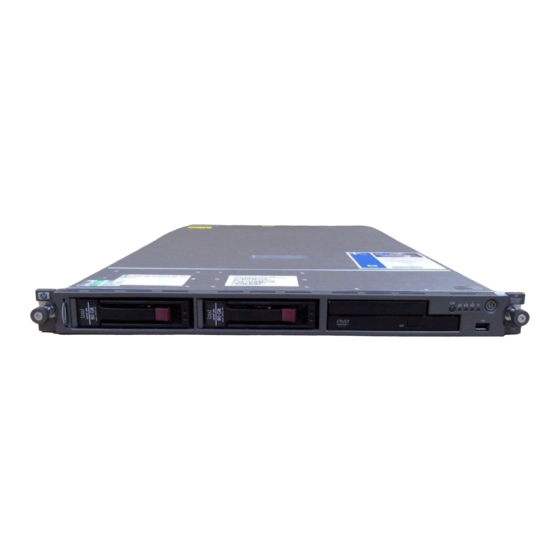

1. Support for up to two Hot Plug SATA or SAS hard drives
2. Optional 1.44MB Diskette Drive Assembly Option Kit
3. CD-ROM/DVD-ROM/DVD-RW Drive Assembly Option Kit
(optional)
4. Front LED Indicators
What's New
What's New
What's New
What's New
New Option: Dual Core Intel Pentium-D 950 processor (3.4GHz, 2 x 2MB Cache, 800MHz Front Side Bus)
At a Glance
At a Glance
At a Glance
At a Glance
The HP ProLiant DL320 G4 Server delivers Enterprise level features and performance at an entry level price. The Intel Dual Core
processors and DDR2 Memory support put the finishing touches on this ultra-dense 1U solution for the savvy Enterprise and SMB
customer.
The performance features of the ProLiant DL320 G4 include up to 8GB of PC2-4200 DDR2 memory and the new Intel Pentium D
900 series processors with 4 Megabytes of Level 2 cache. The ProLiant DL320 G4 also features iLO 2, the Next generation Lights-
Out management delivering server remote control for any occasion. Dual PCI Express slots provide the ultimate in I/O serial
performance and investment protection, while the optional PCI-X full length riser provides customers with legacy support. In addition
to dual integrated gigabit NICs, the ProLiant DL320 G4 also supports SATA with RAID 0/1 standard, with Hot Plug SAS and SATA as
an optional upgrade.
Processors
Processors
Processors:
Processors
Dual-core Pentium D 900 series processors with 4M (2x2M) of L2 Cache
3.4 GHz, 3.2 GHz, 3.0 GHz, and 2.8 GHz Dual-core Pentium D Processors with 4MB of L2 Cache (2x2MB)
Single core Pentium 4 600 series processors with 2MB of L2 cache
3.6 GHz, 3.4 GHz, 3.0 GHz Single Core Pentium 4 Processors with 2MB of L2 Cache
Single core Celeron processors
2.93 GHz Celeron D Processor with 256KB of L2 Cache
Intel E7230 Chipset with 800MHz Front Side Bus (533MHz for Celeron Processors)
Ability to purchase Microsoft Windows Server 2003 for Embedded Systems with Microsoft ISA Server 2004 Standard
Edition configure to order from HP:
More details available at http://www.hp.com/servers/DL320FW-VPN-Cache
DA - 12365
Canada — Version 16 — February 12, 2007
HP ProLiant DL320 Generation 4 (G4)
HP ProLiant DL320 Generation 4 (G4)
HP ProLiant DL320 Generation 4 (G4)
HP ProLiant DL320 Generation 4 (G4)
5. Fan Assembly, 4 non hot-plug Dual Rotor Fans with N+1
Redundancy
6. Two PCI slots, PCI-Express x4 and x1 standard (x8
connectors)
7. Four PC2-4200 ECC DDR2 Memory Slots - 8 GB maximum
8. Power Supply (450 Watt)
Page 1
