QuickSpecs
Overview

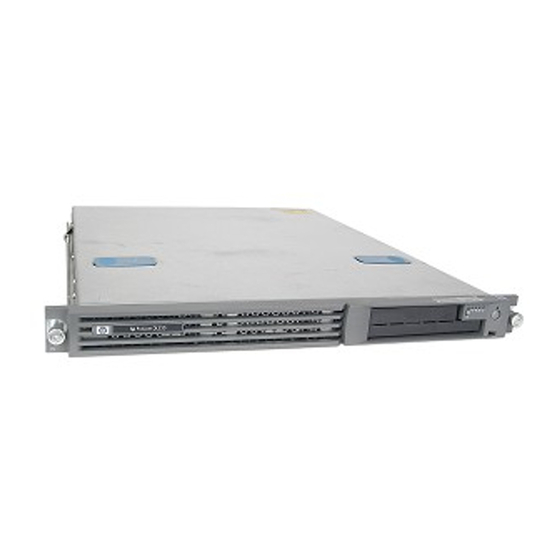

Compaq ProLiant DL320
1. Thumb Tabs
2. Power Supply
3. LED Indicators
4. Removable CD-ROM/Diskette Drive Assembly (included in
some models)
5. Two 3.5" x 1" ATA or SCSI non-hot plug drive bays
6. Fixed Rails
At A Glance
The ultra thin one-way server for deploying and managing Web-hosting environments at Internet speed
Intel® Pentium III 1.26-GHz or FC-PGA (Flip Chip-Pin Grid Array) processor (single capability) with 512-KB or 256-KB
level 2 ECC cache
1U Rack form factor (1.75")
ServerWorks LE 3.0 Chipset with 133-MHz Front Side Bus
128-MB PC133-MHz Registered ECC SDRAM memory, expandable to 2 GB
One full-length 64-bit/33-MHz PCI slot available
Two Compaq NC3163 Fast Ethernet NICs Embedded 10/100 WOL (Wake On LAN)
Integrated Ultra ATA/100 Controller Module (ATA models)
Integrated Single Channel Wide Ultra2 SCSI Controller Module (SCSI models)
Internal storage capacity of up to 72.8 GB in SCSI Models (2 x 36.4 GB 1" SCSI Non-Hot Plug Drives)
Internal storage capacity of up to 160 GB in ATA Models (2 x 80 GB 1" ATA/100 Non-Hot Plug Drives)
180-Watt PFC Power Supply
Front and Rear Unit Identification switches (UID)
Exceptional serviceability with optional sliding rails, cable management and in-rack toolless service ability access
Dual Peer PCI Bus Architecture for concurrent memory and processor access from PCI buses
Automatic Server Recovery (ASR), Compaq Insight Manager and SmartStart
Protected by HP Services, including a three-year parts, one- year labor, one-year, on-site service, Next Business Day
–limited, global warranty and extended, Pre-Failure Warranty which covers processors, memory, and hard drives —
Certain restrictions and exclusions apply. Consult the Customer Support Center at 1-800-345-1518 for details.
DA - 10692 Worldwide QuickSpecs — Version 48 — 10.17.2003
7. Fan
8. Processor (populated)
9. DIMM Memory Slots (4 total)
10. Ultra ATA/100 Controller Module (ATA models)
11. Single Channel Wide Ultra2 SCSI Controller Module
(SCSI models)
12. 64-bit/33-MHz PCI Slot
Compaq ProLiant DL320
Page 1

Advertisement

loading

Related Manuals for HP Compaq ProLiant DL320

Summary of Contents for HP Compaq ProLiant DL320

  • Page 1 Automatic Server Recovery (ASR), Compaq Insight Manager and SmartStart Protected by HP Services, including a three-year parts, one- year labor, one-year, on-site service, Next Business Day –limited, global warranty and extended, Pre-Failure Warranty which covers processors, memory, and hard drives —...

  • Page 2: Standard Features

    Standard 128 MB (PC133-MHz Registered ECC SDRAM memory) Maximum 2 GB Network Controller Two HP NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL (Wake On LAN) Expansion Slots I/O (1 Total, 1 available) PCI Voltage: 64-bit/33 MHz PCI 3.3 Volt or universal cards...
  • Page 3 Web site at http://www.hp.com/servers/manage. ActiveUpdate Active Update is a web-based application that keeps IT managers directly connected to HP for proactive notification and delivery of the latest software updates. ROMPaq, support The latest software, drivers, and firmware fully optimized and tested for software, and your ProLiant server and options.
  • Page 4 QuickSpecs Compaq ProLiant DL320 Standard Features Optional ProLiant Optional software offerings that selectively extend the functionality of an Essentials Value Packs Adaptive Infrastructure to address specific business problems and needs: Rapid Deployment Pack – an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Page 5 NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf. NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant DL320, please see: http://www.compaq.com/support/files/server/us/index.html. Rack Airflow...
  • Page 6 HP technical assistance is available 7 x 24, toll free in the United States and Canada. Telephone support services may be covered under warranty or available for an additional fee.
  • Page 7 Memory 128-MB (Standard) to 2-GB (Maximum) PC133-MHz Registered ECC 254823-xx2 SDRAM Network Controller Two HP NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL (Wake On LAN) Storage Controller Integrated Single Channel Wide Ultra2 SCSI Controller Module Hard Drive One 18.2-GB Wide Ultra3 SCSI 10,000 rpm non-hot plug 1" drive Internal Storage 72.8-GB maximum (with optional hard drives)
  • Page 8 CD/Floppy Memory 128-MB (Standard) to 2-GB (Maximum) PC133-MHz Registered ECC 254824-xx1 SDRAM Network Controller Two HP NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL (Wake On LAN) Storage Controller Integrated Ultra ATA/100 Controller Module Hard Drive None ship standard...
  • Page 9 304163-002 NOTE: Provides on-site review, installation and configuration services for Insight Manager 7. HP will also re-create, as closely as possible, the views and reports from the customer’s current TopTools configuration. This service assures a smooth transition to the ProLiant Essentials software.
  • Page 10 QuickSpecs Compaq ProLiant DL320 Options Memory 512-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit 128279-B21 (DIMMs) 256-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit 128278-B21 128-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit 128277-B21 Internal Storage CD-ROM/Diskette Drive Assembly Option Kit...
  • Page 11 QuickSpecs Compaq ProLiant DL320 Options Smart Array 5302/128 Controller (Japan) 283552-291 NOTE: Supports Wide Ultra2/3 SCSI drives only. If cabling to internal drives, you must first remove the integrated controller module. ATA models require the Wide Ultra3 SCSI cable option kit 212690-B21.
  • Page 12 157866-001 Compaq Remote Insight Lights-Out Edition (EMEA) 157866-021 Compaq Remote Insight Lights-Out Edition (ROW) 157866-371 Security HP/Atalla AXL600L SSL Accelerator Card for ProLiant Servers 524545-B21 Compaq AXL300 Accelerator PCI Card (HW SSL Encryption) for ProLiant 227933-B21 Servers Monitors Essential Series...
  • Page 13 P4819-XXX America) HP L1825 Flat Panel Monitor (18-inch, Carbon/Silver, North America) 303486-003 HP L1825 Flat Panel Monitor (18-inch, Carbon/Silver, Outside North America) P9021W-XXX HP L2025 Flat Panel Monitor (20-inch, Carbon/Silver, North America) 303102-003 HP L2025 Flat Panel Monitor (20-inch, Carbon/Silver, Outside North America)
  • Page 14 Compaq ProLiant DL320 Options Tape Drives External DAT Tape Drives HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Carbon) (NA) 157770-002 HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Int’l) (Carbon) 157770-B32 HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Japan)(Carbon)
  • Page 15 274332-B21 HP StorageWorks Rackmount DLT 40/80, Dual Drive 3U (Two Drives) 274335-B21 HP StorageWorks Rackmount DLT 40/80, Tape Array III, 5U (Four Drives) 274337-B21 NOTE: Please see the 40/80-GB DLT Drive QuickSpecs for additional options such as host bus adapters, controllers, cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following: http://h18006.www1.hp.com/products/quickspecs/10658_div/10658_div.html...
  • Page 16 HP StorageWorks Ultrium 460 Tape Drive for ProLiant, External (Carbon) Int’l Q1520A NOTE: Please see the HP StorageWorks Ultrium 460 Tape Drives for ProLiant QuickSpecs for additional options such as data and cleaning cartridges, and for an up-to-date listing of the latest O/S Support details, please see the following: http://h18006.www1.hp.com/products/quickspecs/11530_div/11530_div.html...
  • Page 17 274339-B21 NOTE: The 5U Rackmount Kit (PN 274339-B21) can support up to (4) full-height tape drives and is compatible with all HP internal DLT/SDLT/Ultrium tape drives including the 20/40-GB DLT, 35/70-GB DLT, 40/80-GB DLT, SDLT 110/220-GB, SDLT 160/320, Ultrium 230, and Ultrium 460 tape drives.
  • Page 18 MSA Fibre Channel I/O Module 218960-B21 MSA1000 Fabric Switch 218232-B21 MSA1000 Fibre Channel Adapter (FCA) 2101 245299-B21 HP StorageWorks msa hub 2/3 286763-B21 NOTE: Please see the StorageWorks Modular SAN Array 1000 QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML (North America) http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML...
  • Page 19 QuickSpecs Compaq ProLiant DL320 Options Compaq UPS Power Please see the Compaq UPS Power Cord Reference Guide that lists cable descriptions, Cord Reference Guide requirements, and specifications for Compaq UPS units. ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf UPS and PDU Power Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and...
  • Page 20 (North America) http://www5.compaq.com/products/quickspecs/10838_div/10838_div.HTML (Worldwide) Modular PDUs 1U/0U HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 252663-D71 (Up to 32 outlets) VAC) (NA, Japan) NOTE: 1U/0U mounting NOTE: This mPDU (252663-D71) may also be used to connect the low volt brackets shipped with model of the UPS R3000 XR.
  • Page 21 QuickSpecs Compaq ProLiant DL320 Options PDU Options Third Party Modular PDU Mounting Kit 310777-B21 NOTE: This kit allows you to mount the Modular PDUs in racks other than the 9000/10000 Series racks (any racks using the standard 19" rail). For more details please refer the Modular PDU QuickSpecs.
  • Page 22 Options HP Rack 10000 Series HP Rack 10842 (42U, 800mm wide) – Pallet 257415-B21 (Graphite Metallic) HP Rack 10842 (42U, 800mm wide) – Shock Pallet 257415-B22 HP Rack 10647 (47U) – Pallet 245160-B21 HP Rack 10647 (47U) – Crated 245160-B23 HP Rack 10642 (42U) –...
  • Page 23 QuickSpecs Compaq ProLiant DL320 Options NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/racks/index.html. Rack Options for HP Rack Blanking Panels – Graphite (Multi) 253214-B26 Rack 10000 Series NOTE: Contains one each of 1U, 2U, 3U, and 4U panel.
  • Page 24 QuickSpecs Compaq ProLiant DL320 Options Rack Options for Baying/Coupling Kit 120669-B21 Compaq Rack 9000 42U Side Panel 120670-B21 Series NOTE: The 42U Side Panel (PN 120670-B21) supports the Compaq Rack 9142 and Compaq Rack 9842. 36U Side Panel 120671-B21 NOTE: The 36U Side Panel (PN 120671-B21) supports the Compaq Rack 9136.
  • Page 25 QuickSpecs Compaq ProLiant DL320 Options Rack Options for Rack Monitor Utility Shelf- opal 303606-B21 7000, 9000 and 10000 Ballast Option Kit 120672-B21 Series Rack Rail Adapter Kit (25" depth) 120675-B21 100 kg Sliding Shelf 234672-B21 Monitor/Utility Shelf - Graphite 253449-B21...
  • Page 26 Power Cords NOTE: The Compaq ProLiant DL320 ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack, country-specific power cord options are available. U.S. & Japan models will ship with two power cords: IEC-IEC (142257-002) and North American C13-Nema 5-15P (103541-001) cords.
  • Page 27 9 x 5 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), Three Years (6-3 Part 179834-022 Number for EMEA) HP Care Pack Priority Services for ProLiant Servers – Priority 24 Level 239930-002 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software...
  • Page 28 QuickSpecs Compaq ProLiant DL320 Options CarePaq Priority Services for ProLiant Servers – Priority Silver 239932-002 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday – Friday, 8AM – 5PM local time, 2-hr response after...
  • Page 29 QuickSpecs Compaq ProLiant DL320 Memory Compaq ProLiant DL320 All Models Standard Memory 128-MB PC 133-MHz Registered ECC SDRAM DIMM installed (1 x 128-MB SDRAM DIMM) Standard Memory Plus Optional Memory Up to 1664-MB memory is available with the optional installation of PC 133-MHz Registered ECC SDRAM DIMM memory kits.

  • Page 30: Drive Support

    QuickSpecs Compaq ProLiant DL320 Storage 0 - 1 Two 3.5" x 1" ATA or SCSI non-hot plug drive bays Removable CD-ROM/Diskette Drive Assembly Drive Support Quantity Position Supported Supported Controller Removable Media 1.44-MB Diskette Drive Up to 1 Integrated Low-profile IDE (ATAPI)
  • Page 31 QuickSpecs Compaq ProLiant DL320 Storage Maximum Storage Capacity – (StorageWorks Enclosure 4300 with SCSI models) Internal 72.8 GB (2 x 36.4 GB Wide Ultra3 1") External 509.6 GB (1 x (14 x 36.4-GB 1" Ultra320 Drives)) Total 582.4 GB Maximum Storage Capacity – (StorageWorks Enclosure 4300 with ATA models) Internal 80 GB (2 x 40 GB 1"...

  • Page 32: Tech Specs

    QuickSpecs Compaq ProLiant DL320 TechSpecs System Unit Dimensions (HxWxD) 1.67 x 16.75 x 21.5 in (4.24 x 42.55 x 54.6 cm) Weight 24.58 lb (11.15 kg) Fully configured with two hard drives, four DIMM modules, and a PCI expansion board...
  • Page 33 QuickSpecs Compaq ProLiant DL320 TechSpecs 1.44-MB Diskette Drive Size 3.5 in (8.89 cm) LED Indicators (front Green panel) Read/Write Capacity 1.44 MB/1.2 MB/720 KB formatted Diskette (high/mid/low density) Drive Supported Drive Height 0.50 in/1.27 cm Drive Rotation 300-360/300 rpm Transfer Rate...
  • Page 34 QuickSpecs Compaq ProLiant DL320 TechSpecs Non-Hot Plug 40 GB 7.2K Capacity 40027 MB ATA/100 Hard Drives 230534-B21 Height 1 in (2.54 cm) Width 4 in (10.16 cm) Interface ATA 100 Transfer Rate 100 MB/s Synchronous (Maximum) Seek Time Single Track 0.8 ms...
  • Page 35 QuickSpecs Compaq ProLiant DL320 TechSpecs Low-Profile 24X Max Disk Applicable Disk CD-DA, CD-ROM (Mode 1 and 2) IDE (ATAPI) CD-XA, CD-I (Mode 2, Form 1 and 2) CD-ROM Drive CD-I Ready, CD Extra, Video CD, CD-Bridge Photo CD (Single and Multi-session)
  • Page 36 QuickSpecs Compaq ProLiant DL320 TechSpecs Video Controller Controller Chip WATI RAGE XL Video DRAM 8 MB Video SDRAM Data Transfer Method 32-bit PCI Support Resolution Supported Color Depths: 640 x 480 16.7M, 64K, 256, 16 800 x 600 16.7M, 64K, 256, 16 1024 x 768 16.7M, 64K, 256, 16...
