HP ProLiant DL320 Quickspecs

Generation 5
Hide thumbs Also See for ProLiant DL320:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Quickspecs
QuickSpecs
Overview

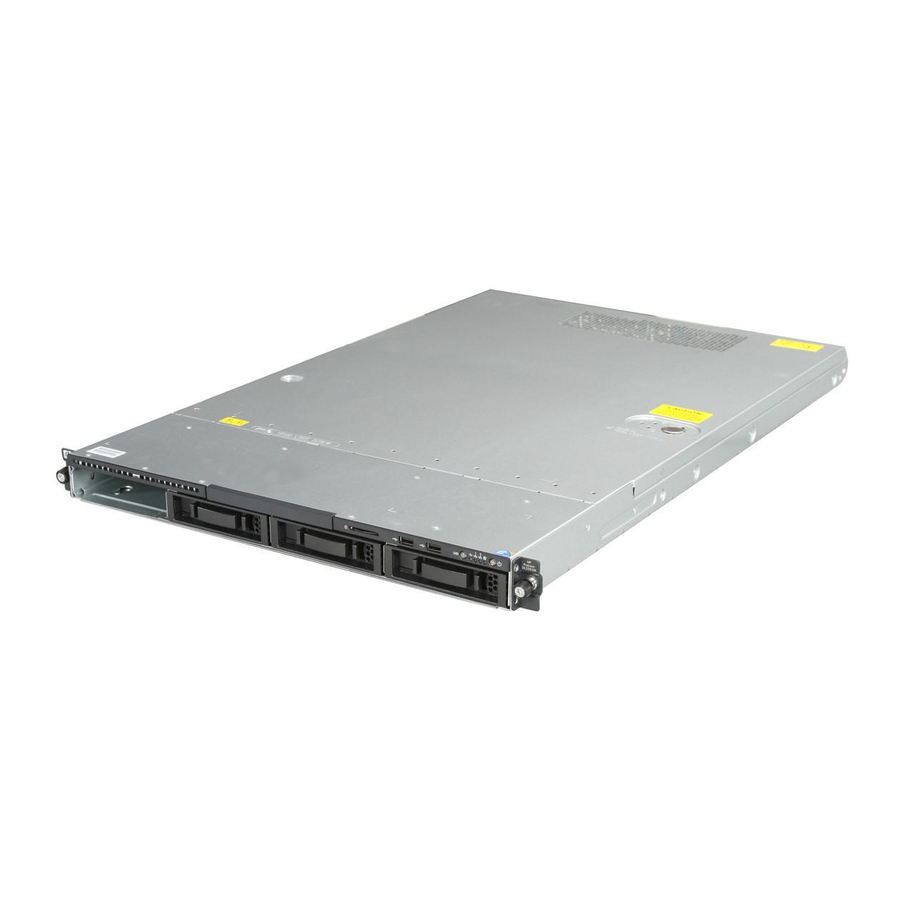

Front View:
Front View:
Front View:
Front View:
1.
Support for up to two Hot Plug or Non Hot Plug SATA or
SAS Hard Drives
2.
Optional Floppy Drive Assembly Option Kit or Optional
Front Video Connector
3.
Optional CD-ROM, DVD-ROM, or DVD-RW Drive
4.
Power Button, UID Button, and Front LED Indicators
5.
Non Hot Plug Dual Rotor Fans with N+1 Redundancy
6.
Two PCI Slots (2 PCI-Express x8 connectors standard)
7.
Four PC2-5300 ECC DDR2 Memory Slots
8.
Power Supply (420 Watt)
What's New
What's New
What's New
What's New
Dual-Core Intel® Pentium D processor 925 is now available as a Configure-To-Order (CTO) option.
At a Glance
At a Glance
At a Glance
At a Glance
Processor
Processor
Processor
Processor:
Dual-Core Intel® Xeon® 3000 processor sequence, or
Dual-Core Pentium D 800 or 900 series processor, or
Single-Core Pentium 4 600 series processor, or
Single-Core Celeron D processor
Intel® 3000 Chipset with up to 1066MHz Front Side Bus (FSB)
Memory:
Memory
Memory
Memory
Supports up to 8 GB of PC2-5300 (667 MHz) Unbuffered DDR2 ECC SDRAM Memory
4 DIMM sockets
Storage Controller:
Storage Controller
Storage Controller
Storage Controller
2 Port SATA Controller with RAID 0/1 support
Internal Drive Support
Internal Drive Support
Internal Drive Support
Internal Drive Support:
Up to two 3.5" (Large Form Factor) SATA or SAS hard drives
SAS drives require optional SAS Host Bus Adapter (HBA)
Optional hot plug hard drive configuration
DA - 12572
Worldwide — Version 32 — June 6, 2008
HP ProLiant DL320 Generation 5 (G5)
HP ProLiant DL320 Generation 5 (G5)
HP ProLiant DL320 Generation 5 (G5)
HP ProLiant DL320 Generation 5 (G5)
Rear View:
Rear View:
Rear View:
Rear View:
1.
PCI Express expansion slot 2, (optional PCI-X, full-length)
2.
PCI Express expansion slot 1, low-profile, half-length
3.
Power supply
4.
UID button/LED
5.
NIC 2 Port
6.
NIC 1 Port
7.
Integrated Lights-Out 2 (iLO 2) management port
8.
Serial connector
9.
Keyboard connector
10.
Mouse connector
11.
Video connector
12.
USB connectors (2)
Page 1
