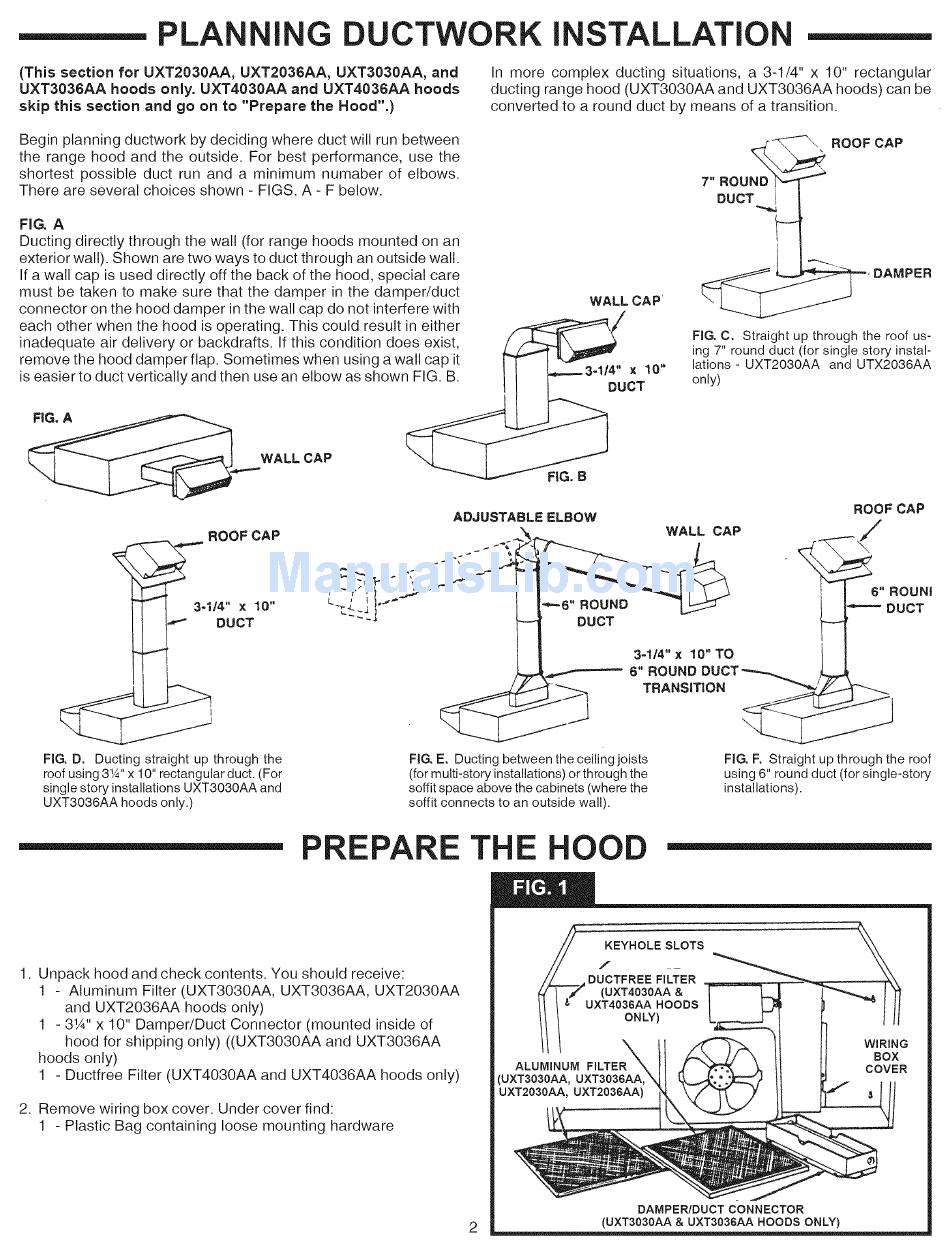

PLANNING DUCTWORK iNSTALLATiON
(This section for UXT2030AA,
UXT2036AA,
UXT3030AA,
and
UXT3036AA
hoods only. UXT4030AA
and UXT4036AA
hoods
skip this section and go on to "Prepare
the Hood".)
In more complex ducting situations,
a 3-1/4" x 10" rectangular
ducting range hood (UXT3030AA and UXT3036AA hoods) can be
converted to a round duct by means of a transition.
Begin planning ductwork by deciding where duct will run between
the range hood and the outside. For best performance,
use the
shortest possible duct run and a minimum
numaber of elbows.
There are several choices shown - FIGS. A - F below.
FIG. A
Ducting directly through the wall (for range hoods mounted on an
exterior wall). Shown are two ways to duct through an outside wall.
If a wall cap is used directly off the back of the hood, special care
must be taken to make sure that the damper in the damper/duct
connector on the hood damper in the wall cap do not interfere with
each other when the hood is operating.
This could result in either
inadequate
air delivery or backdrafts.
If this condition does exist,
remove the hood damper flap. Sometimes when using a wall cap it
is easier to duct vertically and then use an elbow as shown FIG. B.
WALL CAP
1-1/4" x 10"
DUCT
._
ROOF CAP
__
DAMPER
FIG. C. Straight up through the roof us-
ing 7" round duct (for single story instal-
lations - UXT2030AA
and UTX2036AA
only)
WALL CAP
ROOF =CAP
FIG. D. Ducting straight up through the
roof using
3¼" x 10" rectangular
duct. (For
single story installations U×T3030AA and
U×T3036AA hoods only.)
ADJUSTABLE ELBOW
FIG.E. Ducting betweenthe ceiling joists
(for multi-storyinstallations)or through the
soffit spaceabove the cabinets(wherethe
soffit connects to an outside wall).
FIG. F. Straight up through the roof
using 6" round duct (for single-story
installations).
1. Unpack hood and check contents. You should receive:
1 - Aluminum
Filter (UXT3030AA,
UXT3036AA, UXT2030AA
and UXT2036AA
hoods only)
1 - 31/4 '' x 10" Damper/Duct
Connector (mounted inside of
hood for shipping only) ((UXT3030AA
and UXT3036AA
hoods only)
1 - Ductfree Filter (UXT4030AA
and UXT4036AA
hoods only)
2. Remove wiring box cover. Under cover find:
1 - Plastic Bag containing
loose mounting hardware
PREPARE THE HOOD
!j/
./,KEYHOLE SLOTS
WIRING
BOX
ALUMINUM
FILTER
COVER
(UXT3030AA,
UXT2030AA,
UXT2036AA)
DAMPERIDUCT
CONNECTOR
2
(UXT3030AA
& UXT3036AA
HOODS ONLY)
