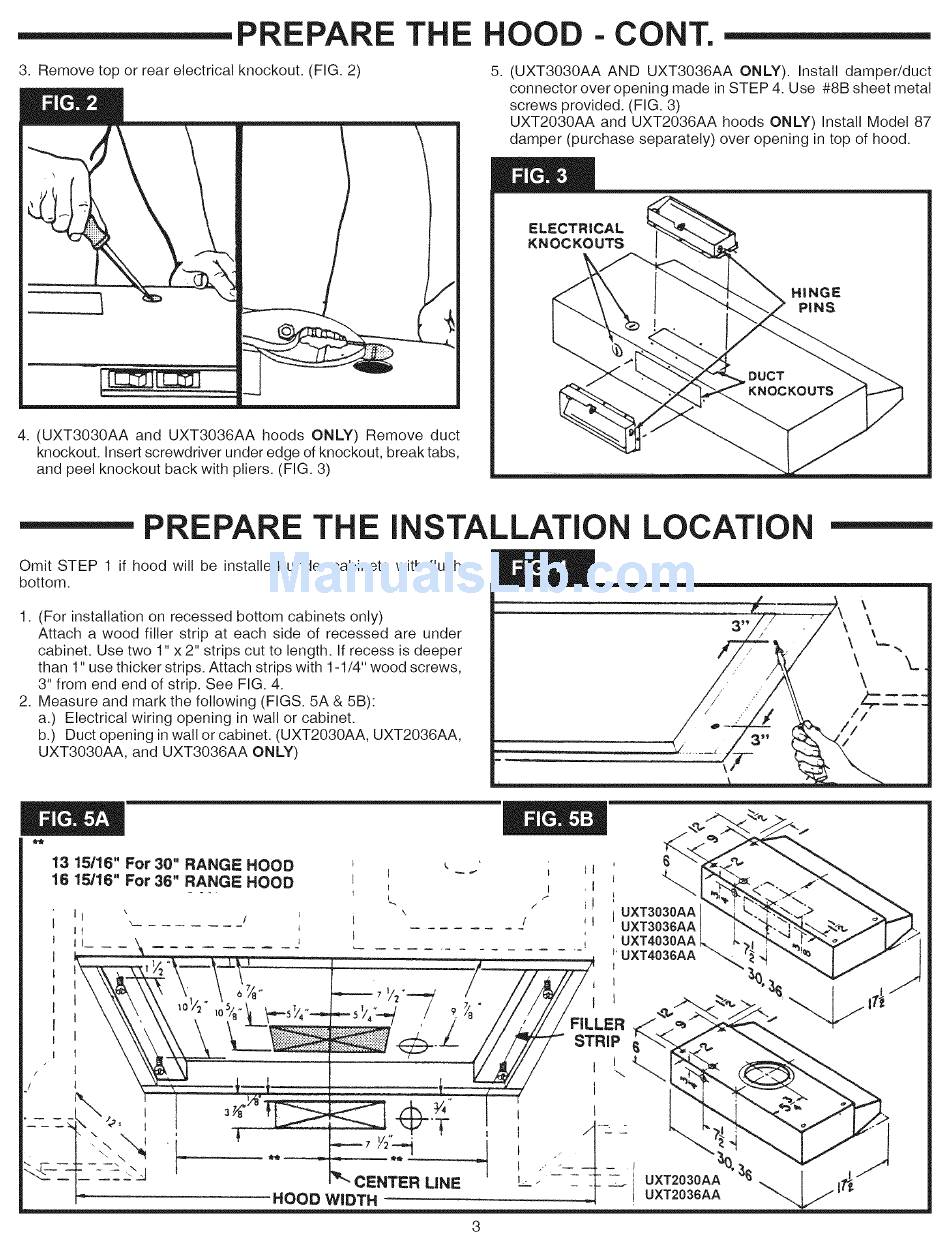

PREPARE
3. Remove top or rear electrical knockout. (FIG. 2)
THE HOOD - CONT.
5. (UXT3030AA
AND UXT3036AA
ONLY). Install damper/duct
connector over opening made in STEP 4. Use #8B sheet metal
screws provided. (FIG. 3)
UXT2030AA
and UXT2036AA
hoods ONLY) Install Model 87
damper (purchase separately) over opening in top of hood.
ELECTRICAL
KNOCKOUTS
4. (UXT3030AA
and UXT3036AA
hoods ONLY) Remove duct
knockout. Insert screwdriver under edge of knockout, break tabs,
and peet knockout back with pliers. (FIG. 3)
PREPARE THE INSTALLATION
LOCATION
Omit STEP 1 if hood will be installed under cabinets with flush
bottom.
1. (For installation on recessed bottom cabinets only)
Attach a wood filler strip at each side of recessed are under
cabinet. Use two 1" x 2" strips cut to length. If recess is deeper
than 1" use thicker strips. Attach strips with 1-1/4" wood screws,
3" from end end of strip. See FIG. 4.
2. Measure and mark the following (FIGS. 5A & 5B):
a.) Electrical wiring opening in wall or cabinet.
b.) Duct opening in wall or cabinet. (UXT2030AA,
UXT2036AA,
UXT3030AA, and UXT3036AA
ONLY)
/
!
13 15116" For 30" RANGE HOOD
16 15/16" For 36" RANGE HOOD
:)OO WI
