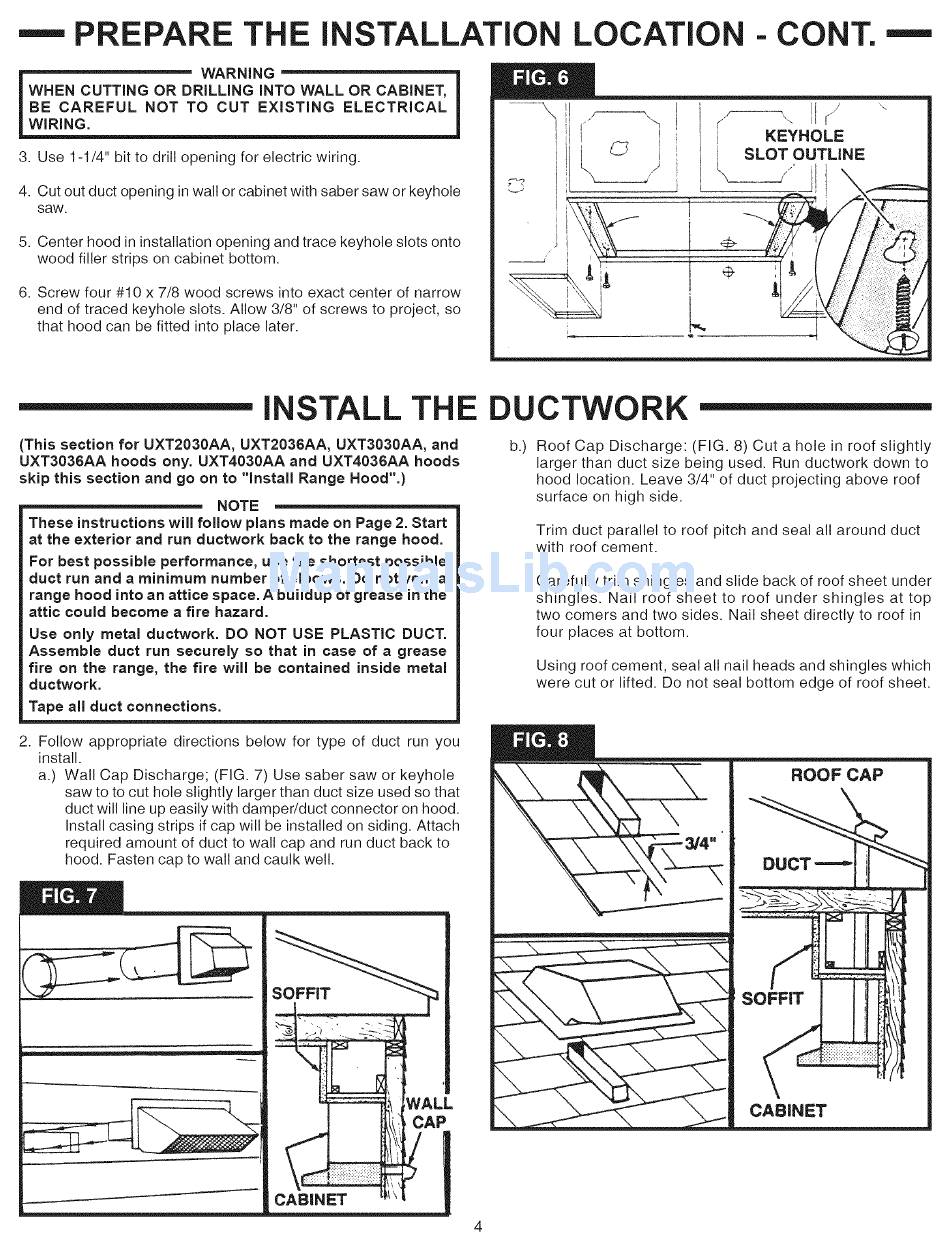

--- PREPARE THE INSTALLATION
LOCATION - CONT. ---
i
WARNING
i
WHEN CUTTING
OR DRILMNG
INTO WALL OR CABINET,
BE CAREFUL
NOT TO CUT EXiSTiNG
ELECTRICAL
WIRING.
3. Use 1-1/4" bit to drill opening for electric wiring.
4. Cut out duct opening in wall or cabinet with saber saw or keyhole
saw.
5. Center hood in installation opening and trace keyhole slots onto
wood filler strips on cabinet bottom.
6. Screw four #10 x 7/8 wood screws into exact center of narrow
end of traced keyhole slots. Allow 3/8" of screws to project, so
that hood can be fitted into place later.
INSTALL THE
(This section for UXT2030AA,
UXT2036AA,
UXT3030AA,
and
UXT3036AA
hoods
ony. UXT4030AA
and UXT4036AA
hoods
skip this section and go on to "Install
Range Hood".)
NOTE
These instructions will follow
plans made on Page 2. Start
at the exterior and run ductwork back to the range hood.
For best possible performance,
use the shortest possible
duct run and a minimum
number of elbows. Do not vent a
range hood into an attice space. A buildup
of grease in the
attic could become
a fire hazard.
Use only metal ductwork.
DO NOT USE PLASTIC
DUCT.
Assemble duct run securely so that in case of a grease
fire on the range, the fire will be contained
inside metal
ductwork.
Tape all duct connections.
2. Follow appropriate
directions
below for type of duct run you
install.
a.) Wall Cap Discharge;
(FIG. 7) Use saber saw or keyhole
saw to to cut hole slightly larger than duct size used so that
duct will line up easily with damper/duct connector on hood.
Install casing strips if cap will be installed on siding. Attach
required amount of duct to wall cap and run duct back to
hood. Fasten cap to wall and caulk well.
SOFFIT
WALL
CAP
DUCTWORK
b)
Roof Cap Discharge:
(FIG. 8) Cut a hole in roof slightly
larger than duct size being used. Run ductwork down to
hood location. Leave 3/4" of duct projecting
above roof
surface on high side.
Trim duct parallel to roof pitch and seal all around duct
with roof cement.
Carefully trim shingles and slide back of roof sheet under
shingles.
Nail roof sheet to roof under shingles
at top
two comers and two sides. Nail sheet directly to roof in
four places at bottom.
Using roof cement, seal all nail heads and shingles which
were cut or lifted. Do not seal bottom edge of roof sheet.
ROOFCAP
DUCT
SOFFIT
CABINET
