Rotel RSP-1572 Datasheet

The RSP-1572 is Rotel's latest 7.1 surround sound preamplifi er. Its advanced design builds upon a progression of outstanding
home theater processors that have received critical acclaim around the globe. The RSP-1572 features important new technologies
such as HDMI 1.4 with 3 D capability. It offers six HDMI inputs and two HDMI outputs with one HDMI output having ARC capability
(Audio Return Channel). The ARC in HDMI 1.4 enables a TV via a single HDMI cable, to send audio data "upstream" to an A/V
receiver or surround audio controller, increasing user fl exibility and eliminating the need for any separate S/PDIF audio connection.
A USB front input for iPod/iPhone/iPad or other MP3 player use is provided. The USB input provides a digital connection so
that the RSP-1572's high quality 24/192 DACs provide the crucial decoding. Additionally, the preamp/processor incorporates
Bluetooth operation (via a wireless Dongle that is included), so that a physical connection of portable audio players (which have
that capability), is not required. To provide even more audio versatility, the preamplifi er includes a 10 band parametric EQ, and
advanced bass management.
Video signals are handled by the latest generation Faroudja Torina FLI30336 Cortez Advanced Platform offering the most robust
set of Faroudja DCDi Cinema(R) video processing technologies available. Torino combines unique analog and digital processing
to drastically reduce video noise without sacrifi cing image quality and sharpness. It also offers next-generation Faroudja
RealColor(R) color management technologies. The Faroudja Torino also includes an integrated 3D video decoder. The RSP-
1572 is designed to properly handle 3D video signals, whether from Blu-ray players or set-top boxes. The RSP-1572 supports all
traditional audio and video processing features with Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio, DTS HD and more.
Dual 32 Bit DSP's and 24Bit/192K audio DAC ensure high sound quality and performance.
Multi zone outputs provide composite video and analog audio for 3 zones. Zone control includes source selection, volume and

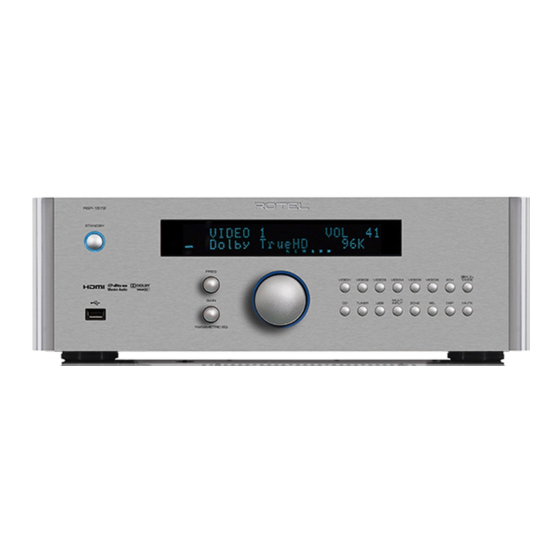

on/off. The RSP-1572 front panel display shows current source, volume and DSP mode. The OSD is available for customer setup
using the HDMI, Component or Composite main video outputs.
Most important however is the performance of the RSP-1572. Rotel has paid very careful attention to all of the board level
components, circuit design and power supply execution to ensure that the RSP-1572 is the very best preamp/processor available
yet from this highly respected audio company.
7.1 Surround Sound Preamplifier
PRELIMINARY DATA SHEET
RSP-1572
www.rotel.com
Rotel of America
54 Concord St.
N. Reading, MA 01864
USA
T +1 978 664 3820
F +1 978 664 4109
