Thelin Hearth Products, Inc.
STOVE MUST BE PROPERLY INSTALLED AND MAINTAINED OR A HOUSE FIRE MAY RESULT.
FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION AND PERMIT.
FAILURE TO COMPLY WITH OWNER'S MANUAL INSTRUCTIONS AND INSTALLATION GUIDELINES WILL VOID
WARRANTY. SAVE THESE INSTRUCTIONS.
Leave this manual with the owner. Please read this entire manual before installation and use of the pellet fuel-burning
stove. Failure to follow these instructions could result in property damage, bodily injury or even death.
TH-REF-SLS-234 Rev. A

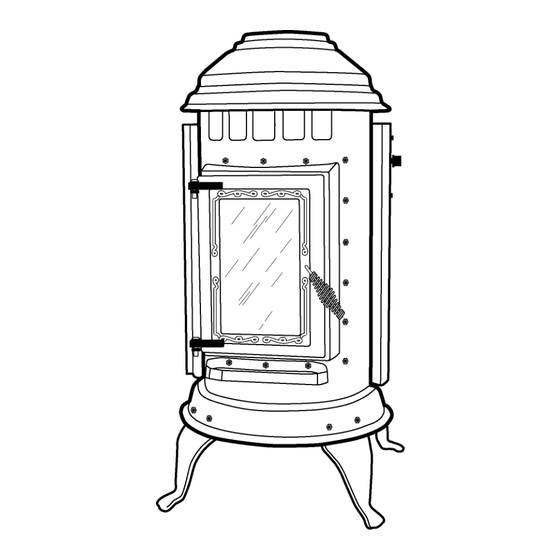

PARLOUR PELLET STOVE
Owner's Manual
SAFETY NOTICE
Parlour Pellet Stove
1 of 45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARLOUR and is the answer not in the manual?

Questions and answers

Related Manuals for Thelin PARLOUR

Summary of Contents for Thelin PARLOUR

  • Page 1 Thelin Hearth Products, Inc. Parlour Pellet Stove PARLOUR PELLET STOVE Owner’s Manual SAFETY NOTICE STOVE MUST BE PROPERLY INSTALLED AND MAINTAINED OR A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION AND PERMIT.

  • Page 2: Table Of Contents

    Thelin Hearth Products, Inc. Parlour Pellet Stove Table of Contents Introduction ....................................3 Safety Information .................................. 3 Laboratory Listing Label ................................6 WARNINGS ....................................7 General Information ................................7 Vent Information ..................................9 Termination .................................... 9 Distance to openings ................................9 Installation ....................................

  • Page 3: Introduction

    Parlour Pellet Stove Introduction Congratulations on your purchase of Thelin Hearth Products Parlour pellet stove! In this manual you will find information on stove specifications, installation instructions, operating guide, how to perform scheduled maintenance, a troubleshooting guide, a detailed parts list and associated diagrams. Also included is your warranty information.
  • Page 4 Thelin Hearth Products, Inc. Parlour Pellet Stove DO NOT overfire. If any external part starts to glow, you are over firing. Reduce feed rate. Overfiring or any such action that may cause a fire hazard including failure to perform regular maintenance as outlined in these instructions will void warranty.
  • Page 5 Thelin Hearth Products, Inc. Parlour Pellet Stove 6. The masonry chimney has been inspected by a professional and is clean, or the factory built (metal) fireplace is installed according to the manufacturer’s instructions. 7. A grounded power outlet with a surge protector is available nearby without having to use an extension cord.

  • Page 6: Laboratory Listing Label

    Thelin Hearth Products, Inc. Parlour Pellet Stove Laboratory Listing Label 6 of 45...

  • Page 7: Warnings

    The Parlour pellet stove has been designed and approved for burning PREMIUM WOOD PELLETS OF HIGHEST BTU OUTPUT AND LOWEST % OF ASH CONTENT ONLY.
  • Page 8 Thelin Hearth Products, Inc. Parlour Pellet Stove Provide adequate clearances around air openings into the combustion chamber and provide adequate accessibility clearance for servicing and proper operation. Never obstruct the front opening of the stove. The stove may be installed as a free-standing unit mounted on a non-combustible protective floor pad or hearth.

  • Page 9: Vent Information

    Thelin Hearth Products, Inc. Parlour Pellet Stove Vent Information Install vent clearances as specified in this Owner’s Manual. USE TYPE L 3” OR 4” PELLET VENT PIPE DEPENDING ON YOUR INSTALLATION. Secure pipe adapter to rear flange with 500 degree HIGH-TEMP RTV silicone and using at least three sheet metal screws.
  • Page 10 Thelin Hearth Products, Inc. Parlour Pellet Stove MOBILE HOME INSTALLATION Mobile home installation should be in accordance with the manufactured home and safety standard (HUD), CFR 3280, PART 24. 1. Outside combustion air is mandatory in mobile or modular home installations. An outside air inlet MUST be provided for combustion and ventilation air.

  • Page 11: Installation

    Installation Unpacking and Inspecting your Stove Thelin Hearth Products packages your stove to ensure safe delivery. Each stove is surrounded by impact absorbent material as well as load shift indicators. However, damage can still occur while the stove is in transit.

  • Page 12: Horizontal Installation With Vertical Rise

    Thelin Hearth Products, Inc. Parlour Pellet Stove 11. Route the power supply cord so it does not touch any of the exterior components of the stove. CHECK WITH LOCAL BUILDING CODE OFFICIALS FOR SPECIFIC REQUIREMENTS. Clearance to Combustibles Unit to Sidewall ......5" (127 mm) Unit to Back wall ......
  • Page 13 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 1 13 of 45...
  • Page 14 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 2 14 of 45...

  • Page 15: Vertical Installation

    ¼” round pipe with air shutter located on the rear of the stove. Use a stainless hose clamp to attach flex pipe to the stove air intake flange. 4. Thelin Hearth Products recommends using a Dura Vent Wall Thimble Kit part # 60-0070-0003. Call your authorized Thelin Hearth Products dealer for this item.
  • Page 16 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 3 16 of 45...
  • Page 17 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 4 17 of 45...
  • Page 18 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 5 18 of 45...
  • Page 19 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 6 19 of 45...
  • Page 20 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 7 20 of 45...
  • Page 21 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 8 21 of 45...

  • Page 22: Proper Venting

    The Parlour pellet stove is equipped with a blocked flue/high temp safety sensor that will shut the stove off if there is a down draft, blocked flue, or high temperature condition.
  • Page 23 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 9 23 of 45...
  • Page 24 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 10 24 of 45...
  • Page 25 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 11 25 of 45...

  • Page 26: Operation

    Open hopper lid and REMOVE all manuals and materials shipped with stove. Open front door and remove contents. Fill hopper with pellets. The Parlour pellet stove will hold approximately 40 pounds of pellets. The hopper lid must be closed before operating the unit. The feed motor will not work if the hopper lid is open.
  • Page 27 START UP AND OPERATION - HANDHELD REMOTE AND THERMOSTAT A wall thermostat or remote thermostat can be used to automatically control the Parlour pellet stove. The thermostat or handheld remote provides the option of turning the stove on and off.
  • Page 28 We recommend that you run the stove on Medium for about 30 minutes to get the heat exchanger hot before turning it to Low. You will have to burn the Parlour pellet stove for a few hours in order to determine the best setting for your particular needs.

  • Page 29: Control Functions

    CLEAN (see FIGURE 12). FIGURE 12 1. In the LOW position, the Parlour pellet stove will feed approximately 1 to 1.5 pounds of pellets per hour. Feed rate will depend upon size of the pellets, quality of pellets and the feed trim setting.

  • Page 30: High Temperature / Flue, Trim, And Battery Indicators

    The indicator light will come on steady yellow when the battery is fully charged. External Battery Backup Operation The Parlour pellet stove is equipped with a 12V battery option. To set up the battery and engage the 12V backup system, follow these steps in order: 1.
  • Page 31 Thelin Hearth Products, Inc. Parlour Pellet Stove NOTE: It is not recommended to leave stove unplugged, as the battery will lose its’ charge. WARNING Make sure the red cable goes to the red terminal and the black cable goes to the black terminal. If you hook these up correctly the BATT light will glow green.
  • Page 32 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 13 32 of 45...

  • Page 33: Maintenance

    Parlour Pellet Stove Maintenance The Parlour pellet stove requires routine maintenance for maximum performance and prolonged life of parts and components. Maintenance is mandatory for warranty to remain in effect. ALWAYS DISCONNECT POWER CORD BEFORE SERVICING. RISK OF ELECTRICAL SHOCK IF NOT DISCONNECTED.
  • Page 34 Thelin Hearth Products, Inc. Parlour Pellet Stove Weekly Maintenance FIGURE 14 The following is a step-by-step procedure to clean out and maintain your pellet stove. Stove must be shut off and completely cold before performing this maintenance. Open door; remove fire pot and clean-out covers.

  • Page 35: Monthly Maintenance

    Thelin Hearth Products, Inc. Parlour Pellet Stove Replace clean-out covers and fire pot. The stove is now ready to use. Ash removal 1. Vacuum firebox and inside of door frame of ash build up and soot weekly or more often as needed.

  • Page 36: Yearly Maintenance

    Thelin Hearth Products, Inc. Parlour Pellet Stove Yearly Maintenance NOTE: THE FOLLOWING SHOULD ONLY BE PERFORMED BY SERVICE AND MAINTENANCE PERSONNEL FAMILIAR WITH BOTH PELLET STOVES AND IN PARTICULAR THELIN’S PRODUCT-LINE. WE RECOMMEND YOU CONSULT A THELIN HEARTH PRODUCT’S DEALER FOR A PROFESSIONAL SERVICE TECHNICIAN Soot and Fly Ash –...
  • Page 37 Thelin Hearth Products, Inc. Parlour Pellet Stove 12. Reinstall previously removed bottom plate making certain the air intake is aligned and tighten the 4 screws. 13. Reinstall stove to Exhaust Vent and Outside Air Intake making certain to fully seal Exhaust Vent with HIGH TEMPERATURE SILICONE having a temperature rating of at least 500 degrees F.

  • Page 38: Troubleshooting Guide

    Thelin Hearth Products, Inc. Parlour Pellet Stove Troubleshooting Guide 38 of 45...

  • Page 39: Parts List

    Thelin Hearth Products, Inc. Parlour Pellet Stove Parts List FIGURE 15 - Replacement Parts List Door Gasket Door Glass Push Button Switch Control Circuit Board Feed Disk Auger Feed Motor Coupling Combustion Fan Blade Motor Convection Fan Blade Cast Iron Fire Pot...

  • Page 40: Diagrams

    Thelin Hearth Products, Inc. Parlour Pellet Stove Diagrams Circuit Board Diagram Figure 18 - Electrical Schematic/Wiring Diagram Figure 19 - Igniter Location FIGURE 16 40 of 45...
  • Page 41 Thelin Hearth Products, Inc. Parlour Pellet Stove ELECTRICAL SCHEMATIC/WIRING DIAGRAM FIGURE 17 41 of 45...
  • Page 42 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 18 42 of 45...
  • Page 43 Thelin Hearth Products, Inc. Parlour Pellet Stove FIGURE 19 43 of 45...

  • Page 44: Warranty

    Contact your original installing dealer for warranty service. Check with your installing dealer in advance if they require you to pay a service call for any warranty work. Travel and shipping charges are not covered by this warranty. If the installing dealer is unable to provide parts or service, contact the nearest Thelin Hearth Products dealer located on our website.
  • Page 45 Thelin Hearth Products, Inc. Parlour Pellet Stove THELIN HEARTH PRODUCTS 1312 Striker Avenue Suite 101 Sacramento, CA. 95834 45 of 45...
