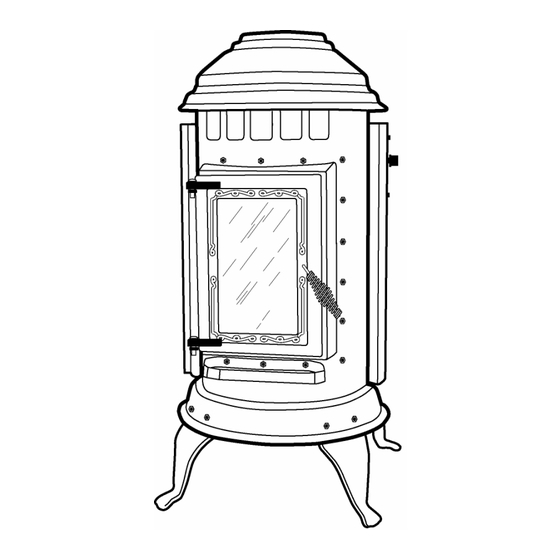

PARLOUR PELLET E.I.
Pellet Heater Owner's Manual
Installation and Operating Instructions
HEATER MUST BE PROPERLY INSTALLED AND MAINTAINED OR A HOUSE FIRE MAY
RESULT.
FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION.
FAILURE TO COMPLY WITH OWNER'S MANUAL INSTRUCTIONS WILL VOID
WARRANTY.
PLEASE LEAVE THIS MANUAL WITH THE OWNER!!
SAFETY NOTICE
Warnock Hersey Test Labs, Middleton, WI
Please read this
entire manual
before installation.
Save these
instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARLOUR PELLET E.I. and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thelin PARLOUR PELLET E.I.

Summary of Contents for Thelin PARLOUR PELLET E.I.

  • Page 1 PARLOUR PELLET E.I. Pellet Heater Owner's Manual Installation and Operating Instructions Please read this entire manual before installation. Save these instructions. SAFETY NOTICE HEATER MUST BE PROPERLY INSTALLED AND MAINTAINED OR A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION.

  • Page 2: Table Of Contents

    PARLOUR PELLET E.I. PELLET HEATER INDEX OF CONTENTS Appendix A, 21 filling, 10 Appendix B, 22 Installation, 7 Battery battery, 12 installation, 12 clean out tee, 7 operation, 12 distance to openings, 7 Battery Light, 12 floor protection, 7 Chrome pipe configuration, 7 polishing, 14 pipe connections, 9...
  • Page 3 PARLOUR PELLET E.I. PELLET HEATER FIGURES Figure 1 - Overall Dimensions..........................6 Figure 2 ................................... 6 Figure 3 - Exhaust Pipe Location (Rear View)....................... 6 Figure 4 ................................... 7 Figure 5 ................................... 7 Figure 6 ................................... 8 Figure 7 ................................... 8 Figure 8 ...................................
  • Page 4 PARLOUR PELLET E.I. PELLET HEATER 12400 Loma Rica Drive, #5 Grass Valley, CA 95945 530-273-1976...

  • Page 5: General Information

    All outside air hook-ups for mobile or modular start or "freshen up" a fire. Keep all such liquids homes require Thelin Co.'s outside air kit — NO well away from the heater while it is in use. EXCEPTIONS!

  • Page 6: Figure 1 - Overall Dimensions

    PARLOUR PELLET E.I. PELLET HEATER CLEARANCES CHECK WITH LOCAL BUILDING OFFICIALS FOR SPECIFIC CODE REQUIREMENTS. A LISTED, TYPE "L" PELLET VENT PIPE IS MANDATORY ON ALL INSTALLATIONS. Clearance to Combustibles Unit to Sidewall ......5" (125 mm) Unit to Backwall ......1.5" ( 40 mm) Unit to Diagonal Wall....5"...

  • Page 7: Figure 4

    PARLOUR PELLET E.I. PELLET HEATER INSTALLATION 1. When deciding on the location of your heater and vent pipe, try to minimize the alteration and reframing of structural components of the building. Vent pipe must be installed so that access is provided for inspection and cleaning. 2.

  • Page 8: Figure 6

    PARLOUR PELLET E.I. PELLET HEATER 5 FT MINIMUM RISE. IF This installation GREATER THAN 10 FT requires 4” pipe USE 4” TYPE “L” PELLET VENT PIPE TEE WITH REMOVABLE CAP FOR CLEAN-OUT FIGURE 8 8. The pellet heater must be operated with a power source and will not operate using natural draft.

  • Page 9: Figure 9

    PARLOUR PELLET E.I. PELLET HEATER b. All pellet vent pipe connections including 2. Hook up the thermostat wires to terminals (see exit at the rear of the heater should be sealed Figure 9). Remember to remove copper shunt. with high temperature silicone (450 degrees) Replace shunt thermostat...

  • Page 10: Figure 10

    PARLOUR PELLET E.I. PELLET HEATER FIRE POT MUST BE FULLY SEATED IN OPENING BEFORE LOADING WITH PELLET FUEL. NO GAPS SHOULD BE VISIBLE AROUND EDGES. SEE "START-UP AND OPERATION" FOR LIGHTING INSTRUCTIONS. FIGURE 10 FIGURE 11 around the fire pot will create a poor burn (see START-UP AND OPERATION Figure 11).

  • Page 11: Figure 12

    PARLOUR PELLET E.I. PELLET HEATER If you choose to use a wall or remote thermostat 3. In the "High" position, the Parlour will feed follow the thermostat manufacturers instructions approximately 5 pounds of pellets per hour. The carefully and make sure you use the built in flame will fluctuate between 3 inches and a full thermostat terminals on the bottom of the stove.

  • Page 12: Operation

    The red must be plugged in DC power only. The stove can be lit manually first before the black. with an approved starter material. Call Thelin Co. if you need help with manual lighting. b. Connect the black battery cable to the (-) negative terminal on the battery.

  • Page 13: Figure 13

    PARLOUR PELLET E.I. PELLET HEATER retaining notched cutout on vertical wall MAINTENANCE PROCEDURES (see Figure 13). Clean one side at a time. With one cover removed, leave the door CAUTION: Moving parts may cause injury. DO open 1" and push the “Clean” button. Let NOT operate with rear cover removed.

  • Page 14: Exhaust Fan Blade

    PARLOUR PELLET E.I. PELLET HEATER 1. Hopper Clean Out: Vacuum the accumulated and a soft clean cloth to wipe any fingerprints saw dust in the hopper weekly. Keep free of off all gold surfaces or the heat will cause the oil debris and foreign material.

  • Page 15: High Temp/Flue Indicator Light

    PARLOUR PELLET E.I. PELLET HEATER Remove any foreign material or object and Solution: If the heater emits smoke during a restart the heater. CAUTION: Keep fingers and power failure and you have frequent power hands clear of the feed mechanism when heater failures, then we suggest you purchase the is on.
  • Page 16 PARLOUR PELLET E.I. PELLET HEATER Solution: Fan motor brushes are wearing out. 10. Problem: I see a flashing green light behind the Brushes in fan motor need to be replaced. outer shield. What does this mean? Contact your dealer or call factory for Solution: The flashing green light behind the replacement brushes.

  • Page 17: Figure 14

    PARLOUR PELLET E.I. PELLET HEATER FIGURE 14 ITEM PART NO. DESCRIPTION 43100-11 Door Glass 43100-13 Fiber Door Gasket 43000-10 Control Knob 43000-04 Control Switch 43000-02D Fuel Feed Disk 43000-02C Fuel Feed Auger 43000-02 Fuel Feed Motor 43000-03 Control Circuit Board 43000-01D Combustion Fan 43000-01...

  • Page 18: Figure 15 - Circuit Board Diagram

    PARLOUR PELLET E.I. PELLET HEATER FIGURE 15 - CIRCUIT BOARD DIAGRAM 17.0 Parlour Type 1 Gnome Type 2...

  • Page 19: Figure 16 - Electrical Schematic/Wiring Diagram

    PARLOUR PELLET E.I. PELLET HEATER FIGURE 16 - ELECTRICAL SCHEMATIC/WIRING DIAGRAM...

  • Page 20: Figure 17 - Routine Stove Clean Out And Maintenance

    PARLOUR PELLET E.I. PELLET HEATER FIGURE 17 – ROUTINE STOVE CLEAN OUT AND MAINTENANCE The following is a step-by-step procedure to clean out and maintain your pellet stove. Stove must be shut off and completely cold before performing this maintenance. Open door;...

  • Page 21: Appendix A

    Your Thelin Pellet Stove is equipped with a blocked flue/high temp safety sensor that will shut the stove off if there is a down draft, blocked flue, or high temperature condition.

  • Page 22: Appendix B

    PARLOUR PELLET E.I. PELLET HEATER APPENDIX B – E.I. FIREPOT ASSEMBLY...
  • Page 23 Thelin Co., Inc., Warranty Division, 12400 Loma Rica Drive, Grass Valley, CA 95945. Returned part or product will be repaired or replaced at Thelin Co.'s option and will be returned to you freight prepaid as soon as practical, but not later than 30 days after receipt.
  • Page 24 PARLOUR PELLET E.I. PELLET HEATER 12400 Loma Rica Drive, #5 Grass Valley, CA 95945 530-273-1976...
