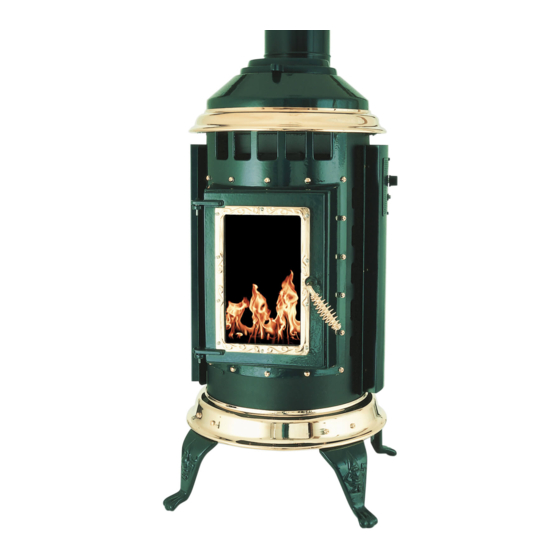

PARLOUR PELLET 3000
Pellet Heater Owner's Manual
Installation and Operating Instructions
▪ HEATER MUST BE PROPERLY INSTALLED AND MAINTAINED OR A HOUSE FIRE MAY
RESULT.
▪ FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
▪ CONTACT LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION AND PERMIT REQUIREMENTS.
▪ FAILURE TO COMPLY WITH OWNER'S MANUAL INSTRUCTIONS WILL VOID
WARRANTY AND COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN
DEATH.
PLEASE LEAVE THIS MANUAL WITH THE OWNER!!
Parlour-Pellet-Stove-Owners-Manual-TH-REF-SLS-234 2022
Made in the USA by:
Please read this entire manual before
SAFETY NOTICE
installation.
Save these instructions.
