Elecom M-DY5DR Series User Manual

Wireless Optical Mouse
M-DY5DR Series
User's Manual
Thank you for purchasing the ELECOM M-DY5DR Series wireless optical mouse.
This manual describes the operating instructions and safety precautions for using the M-DY5DR
Series. Ensure that you have read this manual before using the product. After reading this manual,
store it somewhere safe for future reference.
* Except in certain cases, the M-DY5DR Series is referred to as "this product" in this manual.
This product has been certified by the Telecom Engineering Centre (TELEC) as wireless
radio station equipment that emits extremely weak radio waves as stipulated by
paragraph 1 of Article 6 of the Ordinance for Enforcement of the Radio Act.
http://www.telec.or.jp/
Safety Precautions
Meaning of symbols
„
Failure to observe precautions may result in serious personal injury or death due to
WARNING
fire, electric shock, or other causes.
Failure to observe precautions may result in personal injury due to electric
CAUTION
shock or other causes, and may damage other equipment.
Prohibited action
Mandatory action
Situation that needs attention
Notes and reference information
Information that is handy to know
Observe these precautions carefully to avoid personal injury, damage, fire, and other problems.
WARNING
If a foreign object (water, metal chip, etc.) enters the product, immediately stop using the
product and disconnect the receiver unit from the PC, and remove the battery from the
mouse. If you continue to use the product under these conditions, it may cause a fire or
electric shock.
If an abnormality is found with this product (emission of heat, smoke or abnormal smell
from the product), immediately stop using the product, shutdown the PC, and after
thoroughly checking that heat from the product will not cause burns, disconnect the
receiver unit from the PC, and remove the battery from the mouse. After doing this,
contact the retailer from whom you purchased the product.
Do not drop or hit this product.
If this product is damaged, immediately stop using the product and disconnect the
receiver unit from the PC, and remove the battery from the mouse.
If you continue to use the product under these conditions, it may cause a fire or electric
shock.
Do not attempt to disassemble, modify or repair this product by yourself, as this may
cause a fire, electric shock or product damage.
Do not put this product in fire, as the product may burst, resulting in a fire or injury.
Do not connect or disconnect the receiver unit with a wet hand, modify the receiver unit
or bend it forcibly, as this may cause a fire or electric shock.
CAUTION
Do not place this product in any of the following environments:
This product's packaging contains the items listed below. Before using
y In a car exposed to sunlight, a place exposed to direct sunlight,
the product, check that all items are present. We make every effort to
or a place that becomes hot (around a heater, etc.)
ensure that all products are packaged correctly. However, in the event
y In a moist place or a place where condensation may occur
that an item is missing or damaged, contact the retailer from whom you
In an uneven place or a place exposed to vibration
y
purchased the product.
y In a place where a magnetic field is generated (near a magnet,
etc.)
y In a dusty place
This product does not have a waterproof structure. Use and
store this product in a place where the product body will not be
splashed with water or other liquid.
Rain, water mist, juice, coffee, steam or sweat may also cause
product damage.
„
When you no longer need to use this product and the battery, be
y
sure to dispose of it in accordance with the local ordinances and
laws of your area.
Do not use this product with any device that may significantly
y
affect other equipment in the event that it malfunctions.
y If this product is used on a transparent surface such as glass or a
highly reflective surface such as a mirror, the optical sensor will
not function correctly and mouse cursor movement will become
unstable.
„ Batteries
CAUTION
Use AAA alkaline batteries, AAA manganese batteries, or AAA
„
nickel hydride storage batteries with this product.
If this product will be unused for a long period of time, remove
the battery to avoid battery leakage and failure.
Cleaning the Mouse
„
 Wheel
If the product body becomes dirty, wipe it with a soft, dry cloth.
Use of a volatile liquid (paint thinner, benzene, alcohol, etc.) may
affect the material quality and colour of the product.
 Right button
 Left button
Cautions for Wireless Equipment
 Remaining battery level indicator lamp
WARNING
y Do not use this product with any device that may significantly
affect people or property in the event that it malfunctions.
 Battery cover
There are rare cases where an external radio wave at the same
frequency or the radio wave emitted from a mobile phone
 Power switch
causes this product to malfunction, slow down, or fail to operate.
y Do not use this product in a hospital or other locations where
the use of radio waves is prohibited. The radio waves of this
 ID setting button
product may affect electronic and medical devices (e.g.
pacemaker).
y The use of a wireless mouse in an aircraft is prohibited by  Optical sensor
aviation law because doing so may interfere with flight safety.
Turn off the power of the mouse body before boarding an
aircraft and do not use it in the aircraft.
* ELECOM is not liable for any accident or social damages incurred
by the failure of this product.
 Battery housing
y
 Receiver unit housing
 USB connector (Male)
 ID setting button
 ID Setting Indicator
Package Contents
y Mouse x1
Receiver unit x1
y
y AAA alkaline battery x2
User's Manual x1
y

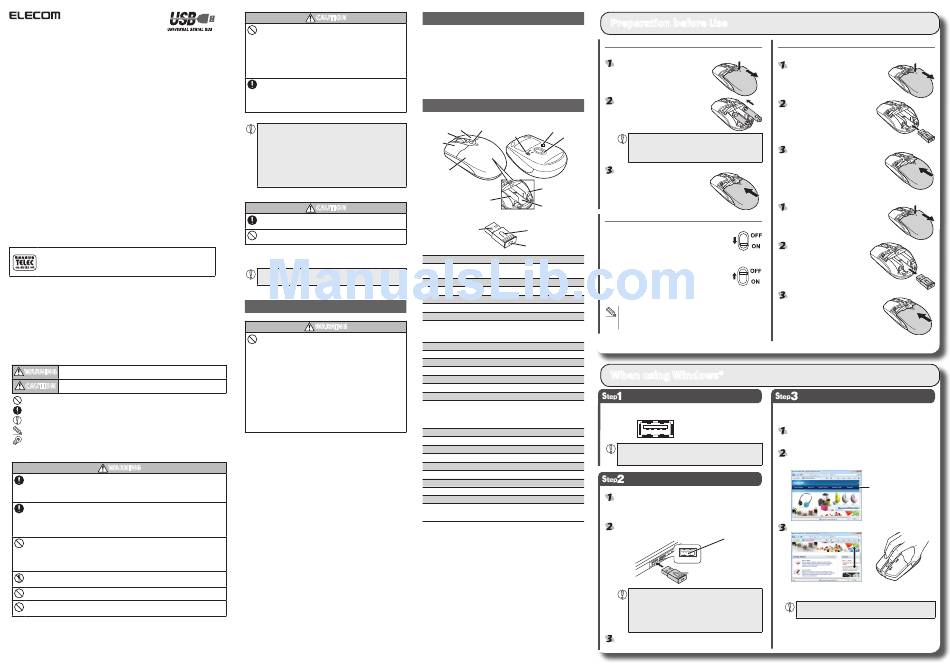

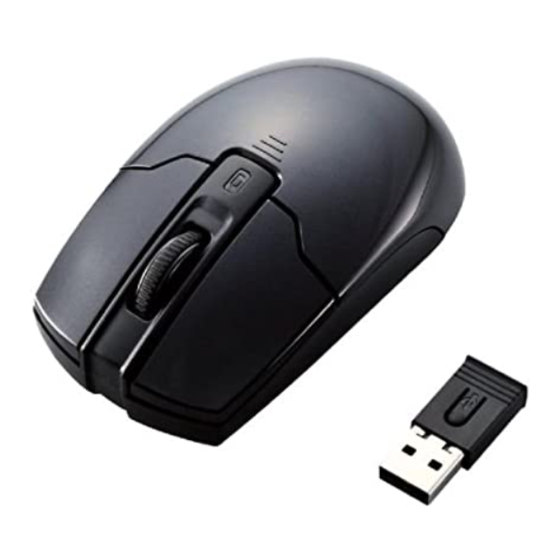

Part Names
Mouse
 









Reciever unit



The wheel can be turned back and forward with your finger or pressed like
a button to operate the PC.
Used for right-click operation.
Used for left-click operation.
Indicates when to replace the batteries. If the remaining battery level
becomes low during use, it will flash continuously in red for a certain
period of time.
This cover is opened to install batteries.
Used to turn the mouse body on and off.
Used to set the product's ID.
Illuminates red when the mouse body is turned on. When the mouse
body is moved, this sensor detects mouse movement.
* Avoid looking directly at the light of the sensor as doing so may
cause eye damage.
Batteries are inserted here.
Used to store the receiver unit.
Connected to a PC USB port.
Used to set the ID of this product.
Illuminates while setting the ID of this product.
(Turns on when there is input from the mouse.)
- 1 -
Preparation before Use
Installing·Replacing the Battery Inserting and Taking Out the Receiver Unit
Before using this product, install two AAA battery in the mouse body.
Inserting the receiver unit
„
Press the top of the battery cover and
open it.
Press top of battery cover to open
Insert the battery.
Make sure that the polarity is correct.
y
y Do not mix different types of batteries or use old
batteries with new batteries to avoid battery leakage
and failure.
Close battery cover. Click cover into place
Taking out the receiver unit
„
Turning On and Off the Mouse
Turning on the mouse
„
When using this product, turn the mouse body power on.
Slide the power switch to the ON position.
* When the remaining battery level is low, the remaining battery
level indicator lamp is illuminated in red for a certain period.
Turning off the mouse
„
When not using this product, turn the mouse body off
to save battery power.
Slide the power switch to the OFF position.
Restoring from sleep state
„
Click the right mouse button.
To reduce battery drain, the mouse enters sleep mode
automatically if it is left without being operated for a certain
period of time with the power or switch turned on.
When using Windows®
Check USB ports
Check the USB port on your computer. Check that the mouse scrolls up and down correctly in Windows®
Internet Explorer.
USB port
Any USB port may be used.
y
This product can be connected to a USB hub. However, it may not
y
work depending on the power supply capability of the USB hub.
Installing the Receiver Unit
Activate the PC
If Windows® prompts you to choose an account (a user name) when
y
it starts up, be sure to log on using an administrator account.
Wait until Windows® has started up completely.
y
Insert the receiver unit into the USB port of the PC.
Insert here.
USB port
Receiver unit
y Carefully check the orientation of the connector and the place
where you will connect the receiver unit.
If you feel strong resistance when inserting the receiver unit,
y
check that the shape and orientation of the connector is
correct. Using excessive force may damage the connector
and cause injury.
The mouse driver is installed automatically.
Press the top of the battery cover and
open it.
Press top of battery cover to open
Place the receiver unit into the
receiver unit housing.
Install the battery cover.
Click cover into place
Press the top of the battery cover
and open it.
Press top of battery cover to open
Take the receiver unit out of the
receiver unit housing.
Close battery cover. Click cover into place
Checking wheel operation
From the [Start] menu, select [All Programs], and then [Internet
Explorer].
Internet Explorer will launch.
Display your favourite web site in Internet Explorer and change
the size of the window so that the vertical scrollbar appears.
* The sample website used here is the ELECOM homepage.
Scrollbar
Scroll the wheel back and forth.
The mouse is operating normally if the screen
moves up and down as you scroll the wheel.
In applications that do not support scrolling, the screen
will not move when you scroll the wheel.
