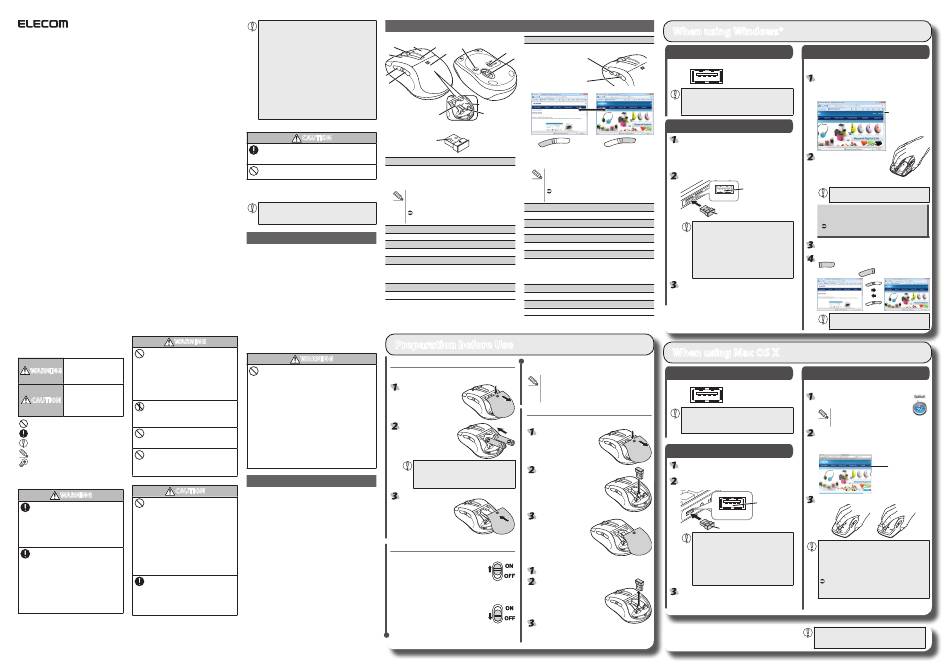

5 Buttons Wireless Optical Mouse
M-D22DR Series
User's Guide
Thank you for purchasing the ELECOM M-D22DR Series 5 Buttons wireless optical mouse.
This manual describes the operating instructions and safety precautions for using the M-D22DR Series.
Ensure that you have read this manual before using the product. After reading this manual, store it
somewhere safe for future reference.
* Except in certain cases, the M-D22DR Series is referred to as "this product" in this manual.
Safety Precautions
WARNING
Meaning of symbols
Do not drop or hit this product.
If this product is damaged, immediately
Failure to observe precautions
stop using the product and disconnect the
may result in serious personal
WARNING
receiver unit from the PC, and remove the
injury or death due to fire,
battery from the mouse.
electric shock, or other causes.
If you continue to use the product under
Failure to observe precautions
these conditions, it may cause a fire or
may result in personal injury
electric shock.
CAUTION
due to electric shock or other
Do not attempt to disassemble, modify
causes, and may damage
or repair this product by yourself, as this
other equipment.
may cause a fire, electric shock or product
Prohibited action
damage.
Do not put this product in fire, as the
Mandatory action
product may burst, resulting in a fire or
Situation that needs attention
injury.
Do not connect or disconnect the receiver
Notes and reference information
unit with a wet hand, modify the receiver
Information that is handy to know
unit or bend it forcibly, as this may cause a
fire or electric shock.
Observe these precautions carefully to avoid
personal injury, damage, fire, and other problems.
CAUTION
WARNING
Do not place this product in any of the
If a foreign object (water, metal chip, etc.)
following environments:
enters the product, immediately stop using
In a car exposed to sunlight, a place
the product and disconnect the receiver
exposed to direct sunlight, or a place that
unit from the PC, and remove the battery
becomes hot (around a heater, etc.)
from the mouse. If you continue to use the
I n a moist place or a place where
product under these conditions, it may
condensation may occur
cause a fire or electric shock.
In an uneven place or a place exposed to
If an abnormality is found with this product
vibration
(emission of heat, smoke or abnormal smell
In a place where a magnetic field is
from the product), immediately stop using
generated (near a magnet, etc.)
the product, shutdown the PC, and after
In a dusty place
thoroughly checking that heat from the
This product does not have a waterproof
product will not cause burns, disconnect
structure. Use and store this product in a
the receiver unit from the PC, and remove
place where the product body will not be
the battery from the mouse. After doing
splashed with water or other liquid.
this, contact the retailer from whom you
Rain, water mist, juice, coffee, steam or
purchased the product.
sweat may also cause product damage.
Part Names
Do not use this product with any device that may
significantly affect other equipment in the event that it
malfunctions.
Mouse
If this product is used on a transparent surface such as
b
a
glass or a highly reflective surface such as a mirror, the
c
optical sensor will not function correctly and mouse cursor
movement will become unstable.
When not using the mouse for one month or more,
disconnect the receiver unit from the PC.
f
When you no longer need to use this product, be sure to
dispose of it in accordance with the local ordinances and
g
laws of your area.
Avoid looking directly at the light of the sensor as doing so
may cause eye damage.
Always keep the receiver unit out of the reach of
children as there is a danger that they may swallow it.
Batteries
Reciever unit
CAUTION
Use AAA alkaline batteries, AAA manganese batteries,
or AAA nickel hydride storage batteries with this
product.
a Tilt wheel
If this product will be unused for a long period of time,
The tilt wheel can be turned back and forward with your
remove the battery to avoid battery leakage and failure.
finger or pressed like a button to operate the PC.
Tilting the tilt wheel to the right or left lets you scroll
horizontally.
Cleaning the Mouse
You must download and install ELECOM MouseAssistant
If the product body becomes dirty, wipe it with a soft, dry cloth.
2 for Windows from our company's web site to use the
Use of a volatile liquid (paint thinner, benzene, alcohol,
horizontal scrolling function with Windows.
Using the horizontal scrolling and button allocation
etc.) may affect the material quality and colour of the
functions (See reverse)
product.
b Right button
Cautions for Wireless Equipment
Used for right-click operation.
c Left button
This product is wireless equipment using the entire range of the 2.4 GHz
Used for left-click operation.
band and it is possible to avoid the band of mobile object identification
d Remaining battery level indicator lamp
systems. GFSK is used for the radio wave method. The interference distance
Indicates when to replace the batteries.
is 10 m.
* If remaining battery power gets low during operation, the
The 2.4 GHz band is also used by medical equipment, Bluetooth, and
lamp flashes red.
wireless LAN equipment conforming to the IEEE802.11b/11g /11n
standard.
e Battery cover
Before using this product, check that there are no other "radio stations"*
This cover is removed to install batteries.
operating nearby.
If electromagnetic interference occurs between this product and other
"radio stations" , move this product to another location or stop using this
product.
* Other "radio stations" refer to industrial, scientific and medical devices
using the 2.4 GHz band like this product, other radio stations of this type,
licensed radio station premises for mobile object identification system
that is used in factory production lines, certain non-licensed low power
Preparation before Use
radio stations and amateur radio stations.
WARNING
Installing·Replacing the Battery
Do not use this product with a device that may have
Before using this product, install two AAA battery in the
a serious function or influence. There are rare cases
mouse body.
where an external radio wave at the same frequency
or the radio wave emitted from a mobile phone
Press the top of the battery
causes this product to malfunction, slow down, or fail
cover and open it.
to operate.
Do not use this product in a hospital or other
Press top of battery
locations where the use of radio waves is prohibited.
cover to open
The radio waves of this product may affect electronic
and medical devices (e.g. pacemaker).
Insert the battery.
The use of a wireless mouse in an aircraft is prohibited
by aviation law because doing so may interfere with
flight safety. Turn off the power of the mouse body
before boarding an aircraft and do not use it in the
aircraft.
* ELECOM is not liable for any accident or social
damages incurred by the failure of this product.
Make sure that the polarity is correct.
Do not mix different types of batteries or
use old batteries with new batteries to avoid
Package Contents
battery leakage and failure.
This product's packaging contains the items listed below. Before
Close battery cover.
using the product, check that all items are present. We make
every effort to ensure that all products are packaged correctly.
However, in the event that an item is missing or damaged,
contact the retailer from whom you purchased the product.
Mouse x1
Receiver unit x1
AAA alkaline battery x2
User's Manual x1
Turning On and Off the Mouse
Turning on the mouse
When using this product, turn the mouse body
power on.
Slide the power switch to the ON position.
* When the remaining battery level is low, the remaining battery
level indicator lamp is illuminated in red for a certain period.
Turning off the mouse
When not using this product, turn the mouse body
off to save battery power.
Slide the power switch to the OFF position.
f Forward button/ g Back button
d
l
j
Forward button
e
k
Performs the forward action in a
web browser.
Back button
Performs the back action in a
web browser.
i
h
i
m
Forward button
Proceeds to the next
Returns to the previous
browser screen
To use the Back and Forward buttons with a Mac, you need
to install the ELECOM Mouse Assistant 2 Mac OS X version
that can be downloaded from the ELECOM website.
Using the horizontal scrolling and button allocation
functions (See reverse)
h Receiver unit housing
Used to store the receiver unit.
i Battery housing
Batteries are inserted here.
j Power switch
Used to turn the mouse body on and off.
k Optical sensor
Illuminates red when the mouse body is turned on. When the
mouse body is moved, this sensor detects mouse movement.
*
Avoid looking directly at the light of the sensor as doing so may
cause eye damage.
l Maintenance switch
For factory use only.
m USB connector (Male)
Connected to a PC USB port.
Restoring from sleep state
Click the right mouse button.
To reduce battery drain, the mouse enters sleep
mode automatically if it is left without being
operated for a certain period of time with the power
or switch turned on.
Inserting and Taking Out the Receiver Unit
Inserting the receiver unit
Press the top of the battery
cover and open it.
Press top of battery
cover to open
Place the receiver unit into
the receiver unit housing.
Click cover into place
Install the battery cover.
Click cover into place
Taking out the receiver unit
Press the top of the battery cover and open it.
Take the receiver unit out of
the receiver unit housing.
Close battery cover.
- 1 -
When using Windows®
1
S
Check USB ports
tep
Check the USB port on your computer.
USB port
Any USB port may be used.
This product can be connected to a USB hub. However,
it may not work depending on the power supply
capability of the USB hub.
2
S
Installing the Receiver Unit
tep
Activate the PC
If Windows® prompts you to choose an account (a user
Back button
name) when it starts up, be sure to log on using an
administrator account.
browser screen
Wait until Windows® has started up completely.
Insert the receiver unit into the USB port of the PC
Insert here.
USB port
Receiver unit
Carefully check the orientation of the connector
and the place where you will connect the receiver
unit.
If you feel strong resistance when inserting
the receiver unit, check that the shape and
orientation of the connector is correct. Using
excessive force may damage the connector and
cause injury.
Do not touch the USB connector terminals.
The mouse driver is installed automatically.
When using Mac OS X
1
S
Check USB ports
tep
Check the USB port on your computer.
USB port
Any USB port may be used.
This product can be connected to a USB hub. However,
it may not work depending on the power supply
capability of the USB hub.
2
S
Installing the Receiver Unit
tep
Activate the Macintosh.
Wait until Mac OS X has started up completely.
Insert the receiver unit into a USB port on your
Macintosh.
Insert here.
USB port
Receiver unit
Carefully check the orientation of the
connector and the place where you will
connect the receiver unit.
If you feel strong resistance when inserting
the receiver unit, check that the shape and
orientation of the connector is correct. Using
excessive force may damage the connector and
cause injury.
Do not touch the USB connector terminals.
The mouse driver is installed automatically.
Disconnecting the receiver unit
This product is hot-pluggable. It is possible to disconnect the
receiver unit when PC is running.
3
S
Checking wheel operation
tep
Check that the mouse scrolls up and down correctly in
Windows® Internet Explorer.
Display your favourite web site in Internet Explorer
and change the size of the window so that the
vertical scrollbar appears.
* The sample website used here is the ELECOM homepage.
Scrollbar
Scroll the tilt wheel back and
forth. The mouse is operating
normally if the screen moves
up and down as you scroll the
tilt wheel.
In applications that do not support scrolling, the
screen will not move when you scroll the tilt wheel.
In order to use this product' s horizontal scrolling function,
you must download and install ELECOM MouseAssistant
2 for Windows from our company' s web site.
Proceed to "Using the horizontal scrolling and button
allocation functions" on the reverse of this sheet.
Click either of the links on the page to proceed to
the next page.
Operation is normal if pressing the Back button
(
) takes you to the previous page and pressing
the Forward button (
)takes you to the next page.
In certain applications, the function will not work
when you press the Back or Forward buttons.
3
S
Checking wheel operation
tep
Check that the vertical and horizontal scrolling functions are
working correctly in Safari.
Click the Safari icon in the Dock.
Safari will launch.
If Safari is not in the Dock, double-
click the Safari icon in the Applications
folder.
Display your favourite web site in Safari and
change the size of the window so that the vertical
and horizontal scrollbars appear.
* The sample website used here is the ELECOM homepage.
Scrollbar
Scroll the tilt wheel back and forth.
In applications that do not support scrolling, the
screen will not move when you scroll the wheel.
To use the Back and Forward buttons with a Mac,
you need to install the ELECOM Mouse Assistant 2
Mac OS X version that can be downloaded from the
ELECOM website.
Proceed to "Using the horizontal scrolling and
button allocation functions" on the reverse of this
sheet.
Operation may become unstable if the receiver unit is
disconnected and reconnected several times when PC is
running. If this occurs, restart PC.

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-D22DR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elecom M-D22DR Series

  • Page 1 Cautions for Wireless Equipment Used for right-click operation. j Power switch unit. * Except in certain cases, the M-D22DR Series is referred to as “this product” in this manual. c Left button ● If you feel strong resistance when inserting Click either of the links on the page to proceed to Used to turn the mouse body on and off.
  • Page 2 FAX : 86-21-64271706 Installing the Receiver Unit” on the front of this sheet. • ELECOM Co., Ltd. shall bear no responsibility for any and all URL : http://www.elecom-china.com/ affects resulting from the use of this product regardless of the ●...
