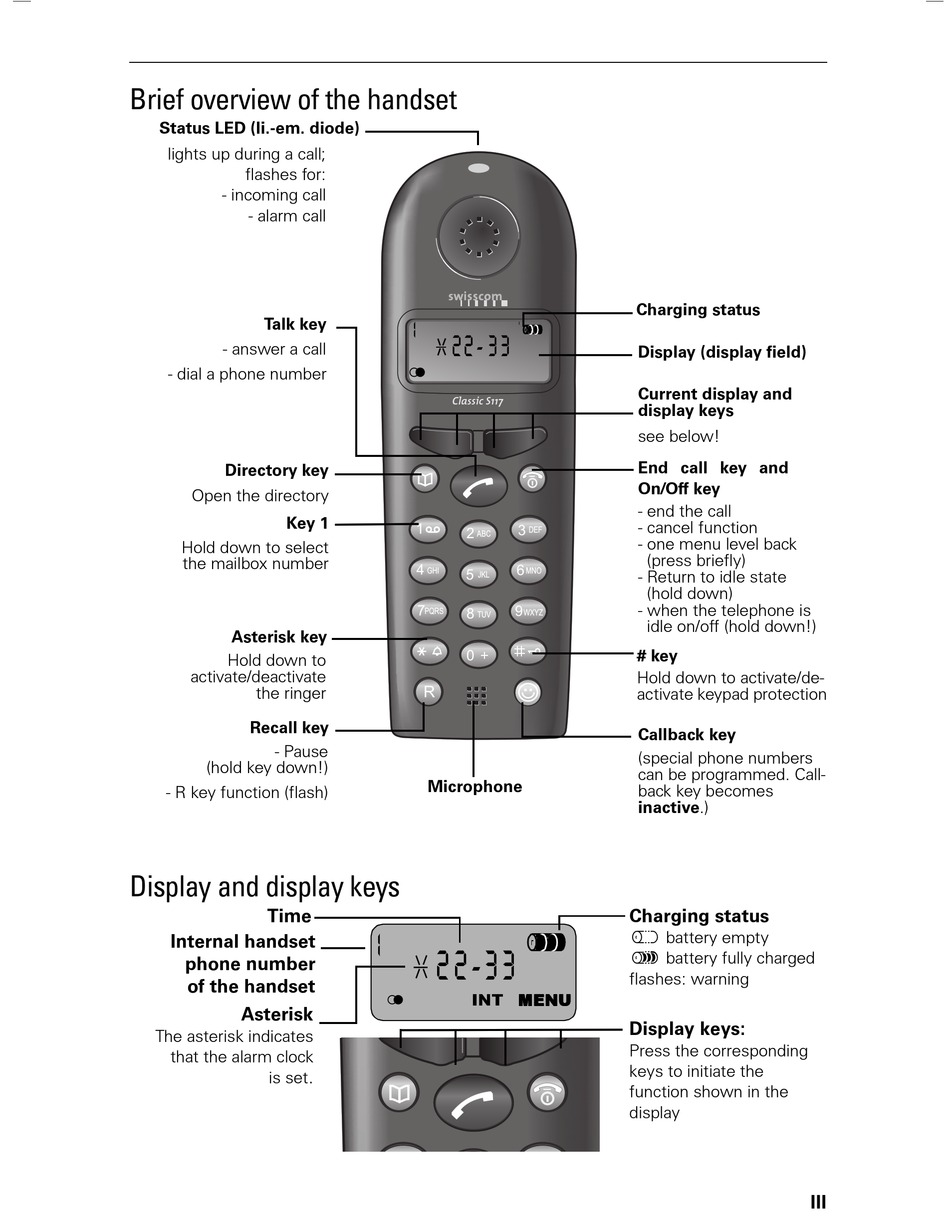

Brief overview of the handset

Status LED (li.-em. diode)
lights up during a call;
flashes for:
- incoming call
- alarm call
Talk key
- answer a call
- dial a phone number
Directory key
Open the directory
Hold down to select
the mailbox number
Asterisk key
Hold down to
activate/deactivate
the ringer
Recall key
- Pause
(hold key down!)
- R key function (flash)

Display and display keys

Time
Internal handset
phone number
of the handset
Asterisk
The asterisk indicates
that the alarm clock
is set
1
z
Key 1
1
4
GHI
7
PQRS
R
Microphone
1
2 2 - 3 3
z
.
2 2 - 3 3
Classic S117
3
2 DEF
ABC
6
MNO
5
JKL
9
8
WXYZ
TUV
0
INT MENU MENU
MENU MENU
Charging status
Display (display field)
Current display and
display keys
see below!
End call key and
On/Off key
- end the call
- cancel function
- one menu level back
(press briefly)
- Return to idle state
(hold down)
- when the telephone is
idle on/off (hold down!)
# key
Hold down to activate/de-
activate keypad protection
Callback key
(special phone numbers
can be programmed. Call-
back key becomes
inactive.)
Charging status
Ý battery empty
Ú battery fully charged
flashes: warning
Display keys:
Press the corresponding
keys to initiate the
function shown in the
display
