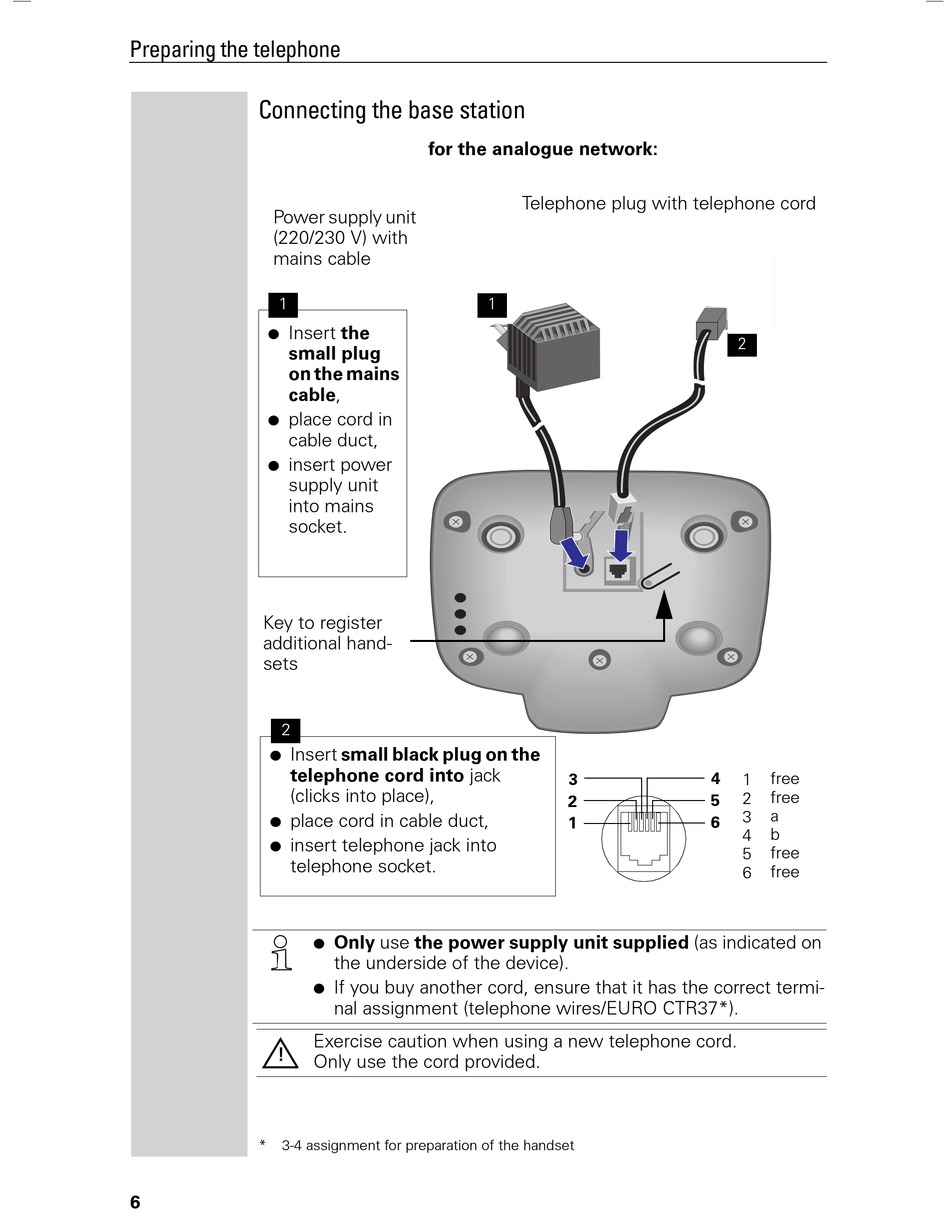

Preparing the telephone
Connecting the base station
Power supply unit
(220/230 V) with
mains cable
1
G
G
G
Key to register
additional hand-
sets
2
G
G
G
½
!
* 3-4 assignment for preparation of the handset
6
for the analogue network:
Insert the
small plug
on the mains
cable,
place cord in
cable duct,
insert power
supply unit
into mains
socket.
Insert small black plug on the
telephone cord into jack
(clicks into place),
place cord in cable duct,
insert telephone jack into
telephone socket.
G Only use the power supply unit supplied (as indicated on
the underside of the device).
G If you buy another cord, ensure that it has the correct termi-
nal assignment (telephone wires/EURO CTR37*).
Exercise caution when using a new telephone cord.
Only use the cord provided.
Telephone plug with telephone cord
1
3
2
1
2
4 free
1
free
2
5
a
3
6
b
4
free
5
free
6
