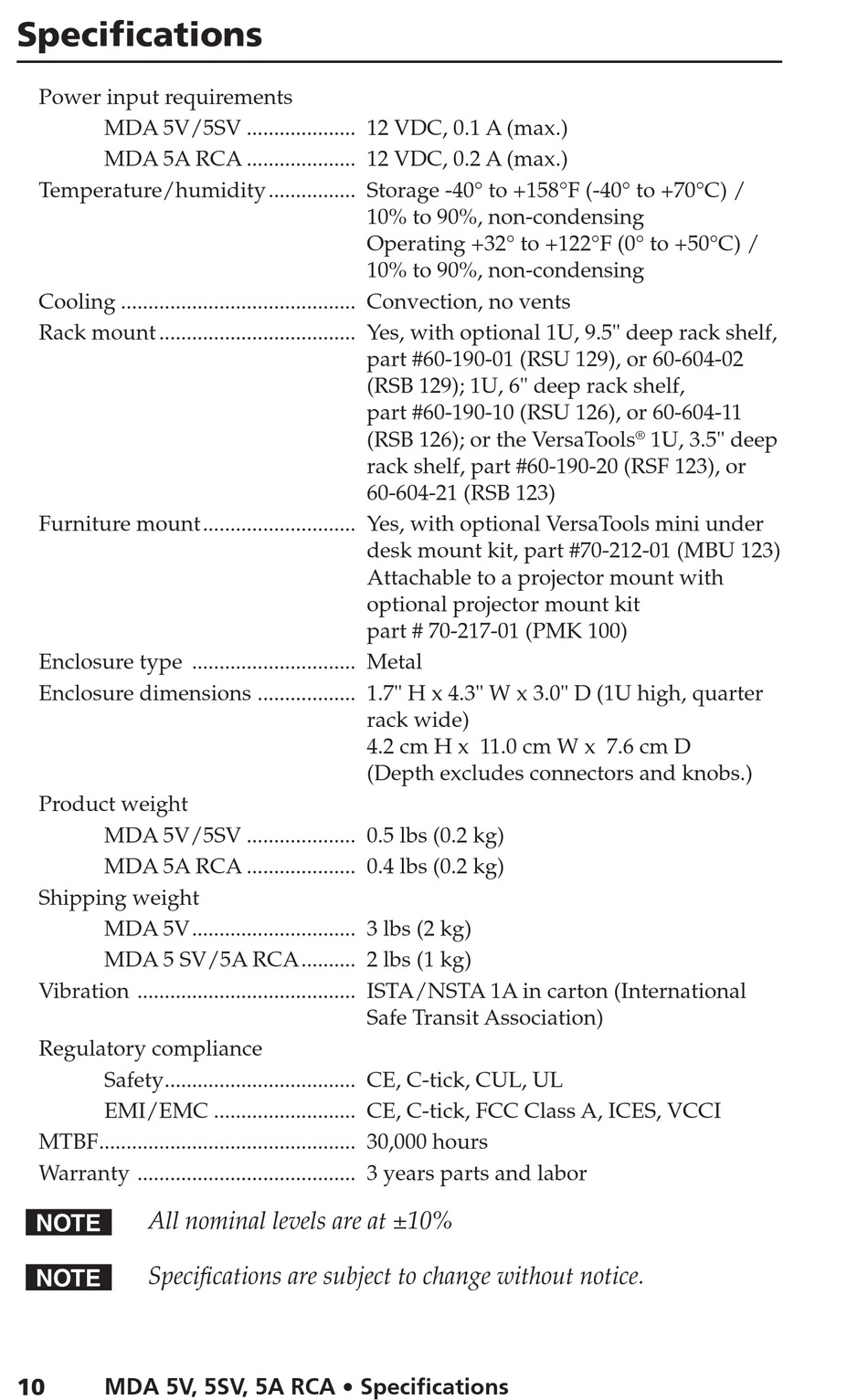

Specifications
Power input requirements
MDA 5V/5SV .................... 12 VDC, 0.1 A (max.)
MDA 5A RCA .................... 12 VDC, 0.2 A (max.)
Temperature/humidity ................ Storage -40° to +158°F (-40° to +70°C) /
Cooling ........................................... Convection, no vents
Rack mount .................................... Yes, with optional 1U, 9.5" deep rack shelf,
Furniture mount............................ Yes, with optional VersaTools mini under
Enclosure type .............................. Metal
Enclosure dimensions .................. 1.7" H x 4.3" W x 3.0" D (1U high, quarter
Product weight
MDA 5V/5SV .................... 0.5 lbs (0.2 kg)
MDA 5A RCA .................... 0.4 lbs (0.2 kg)
Shipping weight
MDA 5V.............................. 3 lbs (2 kg)
MDA 5 SV/5A RCA.......... 2 lbs (1 kg)
Vibration ........................................ ISTA/NSTA 1A in carton (International
Regulatory compliance
Safety................................... CE, C-tick, CUL, UL
EMI/EMC .......................... CE, C-tick, FCC Class A, ICES, VCCI
MTBF............................................... 30,000 hours
Warranty ........................................ 3 years parts and labor
All nominal levels are at ±10%
N
Specifications are subject to change without notice.
N
MDA 5V, 5SV, 5A RCA • Specifications
10
10% to 90%, non-condensing
Operating +32° to +122°F (0° to +50°C) /
10% to 90%, non-condensing
part #60-190-01 (RSU 129), or 60-604-02
(RSB 129); 1U, 6" deep rack shelf,
part #60-190-10 (RSU 126), or 60-604-11
(RSB 126); or the VersaTools
rack shelf, part #60-190-20 (RSF 123), or
60-604-21 (RSB 123)
desk mount kit, part #70-212-01 (MBU 123)
Attachable to a projector mount with
optional projector mount kit
part # 70-217-01 (PMK 100)
rack wide)
4.2 cm H x 11.0 cm W x 7.6 cm D
(Depth excludes connectors and knobs.)
Safe Transit Association)
1U, 3.5" deep
®
