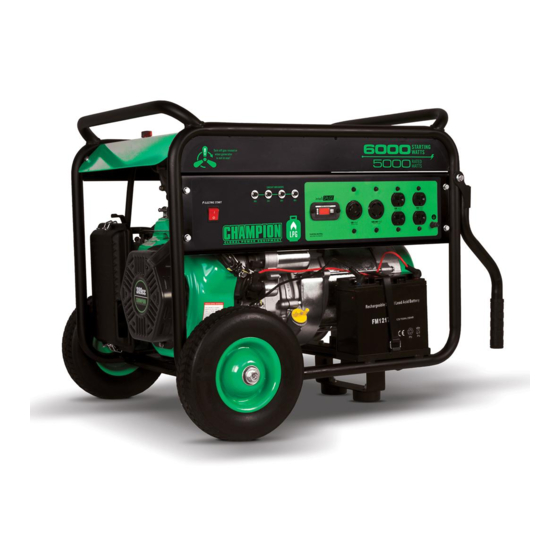

6000 Starting Watts / 5000 Running Watts
Electric Start
PORTABLE GENERATOR
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
OWNER'S MANUAL & OPERATING INSTRUCTIONS
MODEL NUMBER
71330
MADE IN CHINA
REV 71330-20130228
10006 Santa Fe Springs Road
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
Advertisement
Table of Contents
Related Manuals for Champion Power Equipment 71330
Summary of Contents for Champion Power Equipment 71330
-

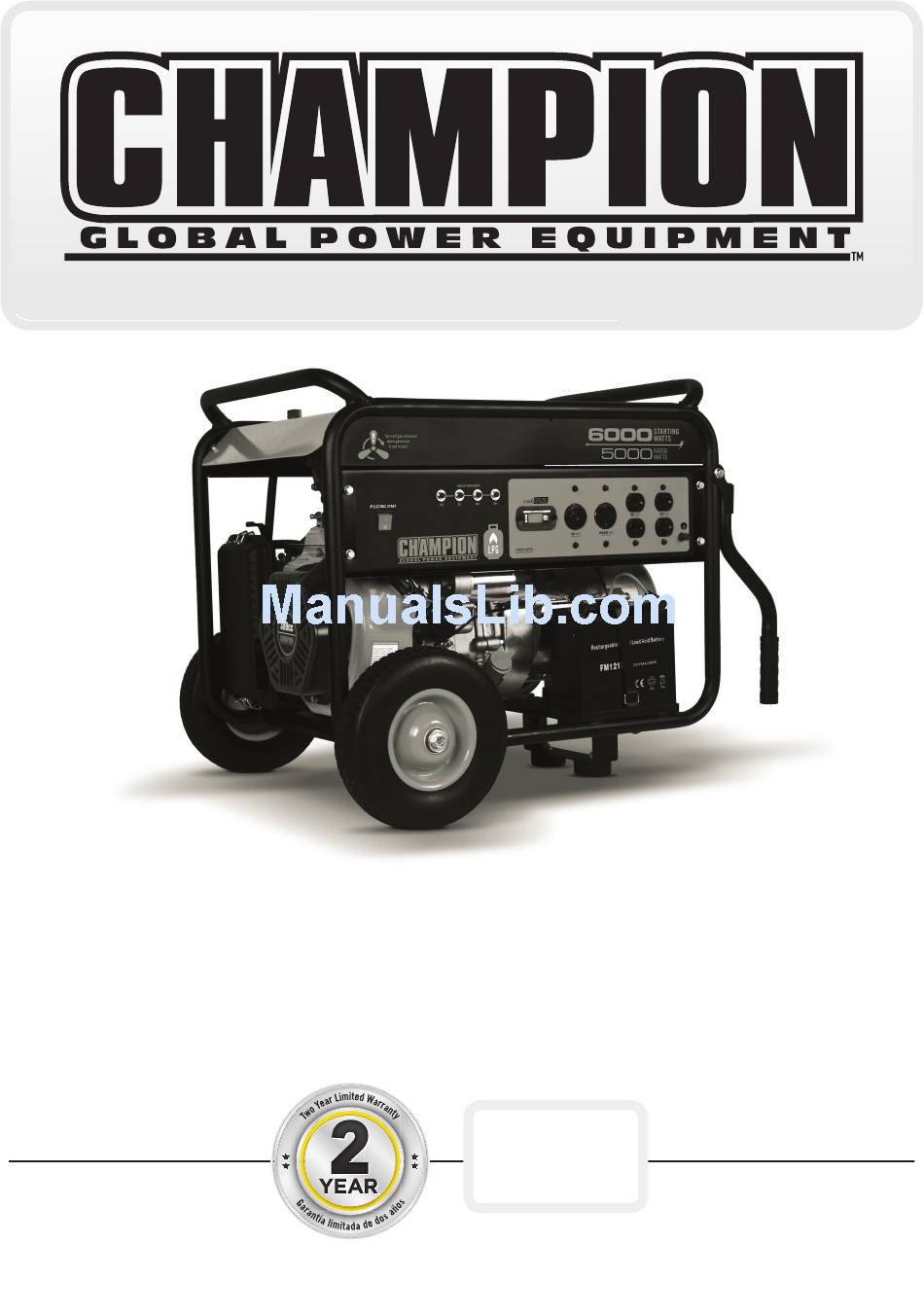

Page 1: Electric Start
6000 Starting Watts / 5000 Running Watts Electric Start PORTABLE GENERATOR MODEL NUMBER 71330 10006 Santa Fe Springs Road SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 71330-20130228 www.championpowerequipment.com... - Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.
-
Page 3: Table Of Contents
71330 6000 Starting Watts / 5000 Running Watts Electric Start PORTABLE GENERATOR TABLE Of CONTENTS Introduction ...... -
Page 4: Introduction
INTRODUCTION Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and sells Power Equipment generator. CPE designs and builds accessories designed to help you get the most from generators to strict specifications. With proper use and your purchase. -
Page 5: Manual Conventions
Please call our help line at 1-877-338-0999. situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. REV 71330-20130228... -
Page 6: Safety Rules
Inform your electricity provider immediately if you or anyone in your household depends on electrical euipment to live. Inform your electrical provider immediately if a loss of power would cause you or anyone in your household to experience a medical emergency. REV 71330-20130228... - Page 7 – Equipment vibrates excessively WARNING Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or REV 71330-20130228 regulations relating to fire prevention requirements.
-
Page 8: Controls And Features
Air Filter – Protects the engine by filtering dust and debris from the intake air. Handle Recoil Starter – Used to manually start the engine. LPG Hose Connector Oil Filler Cap – Check and fill engine oil level. (10) Primer Button REV 71330-20130228... -
Page 9: Power Panel
(NEMA L5-30R) – May be used to supply electrical single phase 60 Hz electrical loads. power for the operation of 120 Volt AC, 30 Amp, Ground Terminal – Consult an electrician for local single phase 60 Hz electrical loads. grounding regulations. REV 71330-20130228... -
Page 10: Parts Included
71330 ENGLISH CONTROLS AND fEATURES Parts Included Your 71330 LPG Powered Generator ships with the following parts: Wheel Kit – 10 in. Wheel ...... -
Page 11: Assembly
2. Attach the red (+) lead to the red (+) terminal on the battery with the cap screw (M5x10) and secure with the lock washer (M5). 3. Repeat steps 1-2 for the black (–) battery lead. REV 71330-20130228... -
Page 12: Add Engine Oil
2. Remove oil fill cap/dipstick to add oil. 3. Add up to 1.16 qt. (1.1 L) of oil and replace oil fill cap/dipstick. DO NOT OVERFILL. 4. Check engine oil level daily and add as needed. REV 71330-20130228... -
Page 13: Connecting Liquid Petroleum Gas (Lpg) Cylinder
We strongly recommend that you consult with a qualified CAUTION electrician to ensure compliance with local electrical codes. Do not allow children to tamper or play with the cylinder or hose connections. REV 71330-20130228... -
Page 14: Operation
If the engine fails to start within extremely heated and may lead to fire. five seconds, release the switch and wait at least ten seconds before attempting to start the engine again. REV 71330-20130228... -
Page 15: Connecting Electrical Loads
NOTE The supplied 12V 15AH battery does re-charge while the engine is running, but it is also recommended that the battery be fully charged at least once per month. REV 71330-20130228... -
Page 16: Stopping The Engine
4. Allow the engine to stabilize. 5. Plug in and turn on the next item. 6. Allow the engine to stabilize. 7. Repeat steps 5-6 for each additional item. NOTE Never exceed the specified capacity when adding loads to the generator. REV 71330-20130228... -
Page 17: Maintenance And Storage
6. Dispose of used oil at an approved waste 5. Squeeze in a clean, absorbent cloth to remove all management facility. excess oil. 6. Place the fi lter in the assembly. 7. Reattach the air fi lter cover and snap in place. REV 71330-20130228... -
Page 18: Spark Arrester
Contact our helpline at 1-877-338-0999 to locate the 3. Remove the spark arrester screen. nearest Champion Power Equipment certified service 4. Carefully remove the carbon deposits from the spark arrester screen with a wire brush. dealer for your generator or engine maintenance needs. -
Page 19: Storage
3. Repeat steps 1-2 for the red/positive battery lead. reconnected to any fuel fitting. This will ensure 4. Store the battery in a cool, dry place. that fuel is properly flowing to the unit and eliminate possible hazards. REV 71330-20130228... -
Page 20: Specifications
....205 lbs (93 kg) Your Champion Power Equipment product is designed – Net Weight .... -
Page 21: Wiring Diagram
71330 ENGLISH SPECIfICATIONS Wiring Diagram REV 71330-20130228... -
Page 22: Parts Diagram
71330 ENGLISH SPECIfICATIONS Parts Diagram REV 71330-20130228... -
Page 23: Parts List
Pressure Reducing Valve 46.136000.03 101 152.210002.08 Control Box Assembly 102 152.210003.04 Plug 2.05.050 Clamp, Wire 103 1.823.0514 Screw M5×14 1.5789.0835 Flange Bolt M8×35 104 5.1810.001 Over Voltage Protector 2.03.040 Big Washer ø8 105 5.1800.002 Rectifier 152.201200.00 Straight Bottom Rubber REV 71330-20130228... -
Page 24: Engine Parts Diagram
71330 ENGLISH SPECIfICATIONS Engine Parts Diagram REV 71330-20130228... -
Page 25: Engine Parts List
Negative Pressure Rubber Hose 46.010100.00 Cylinder Head 46.091000.04 Air Cleaner Assembly 2.01.005 Stud.Bolt (M8×49) 46.061000.00 Recoil Assembly 2.15.008 Spark Plug (F7RTC) 46.130021.02 Gas Tube (Mixer to switch) 2.08.014 Flange bolt 10×80 2.06.023 Hose Clamp 46.020002.00 Gasket, Cylinder Head Cover REV 71330-20130228... -
Page 26: Troubleshooting
Review load and adjust. See “Power Management” Faulty cords or device Check for damaged, bare or frayed wires. Replace defective device for further technical support: Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 tech@championpowerequipment.com REV 71330-20130228... -
Page 27: Warranty
Warranty Qualifications Other Exclusions Champion Power Equipment (CPE) will register this This warranty excludes: warranty upon receipt of your Warranty Registration Card – Cosmetic defects such as paint, decals, etc. - Page 28 The United States Environment Protection Agency (U.S. EPA.) and the California Air Resources Board (CARB) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air Resources Board (CARB) emission regulations.
- Page 29 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (for other states, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 30 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
