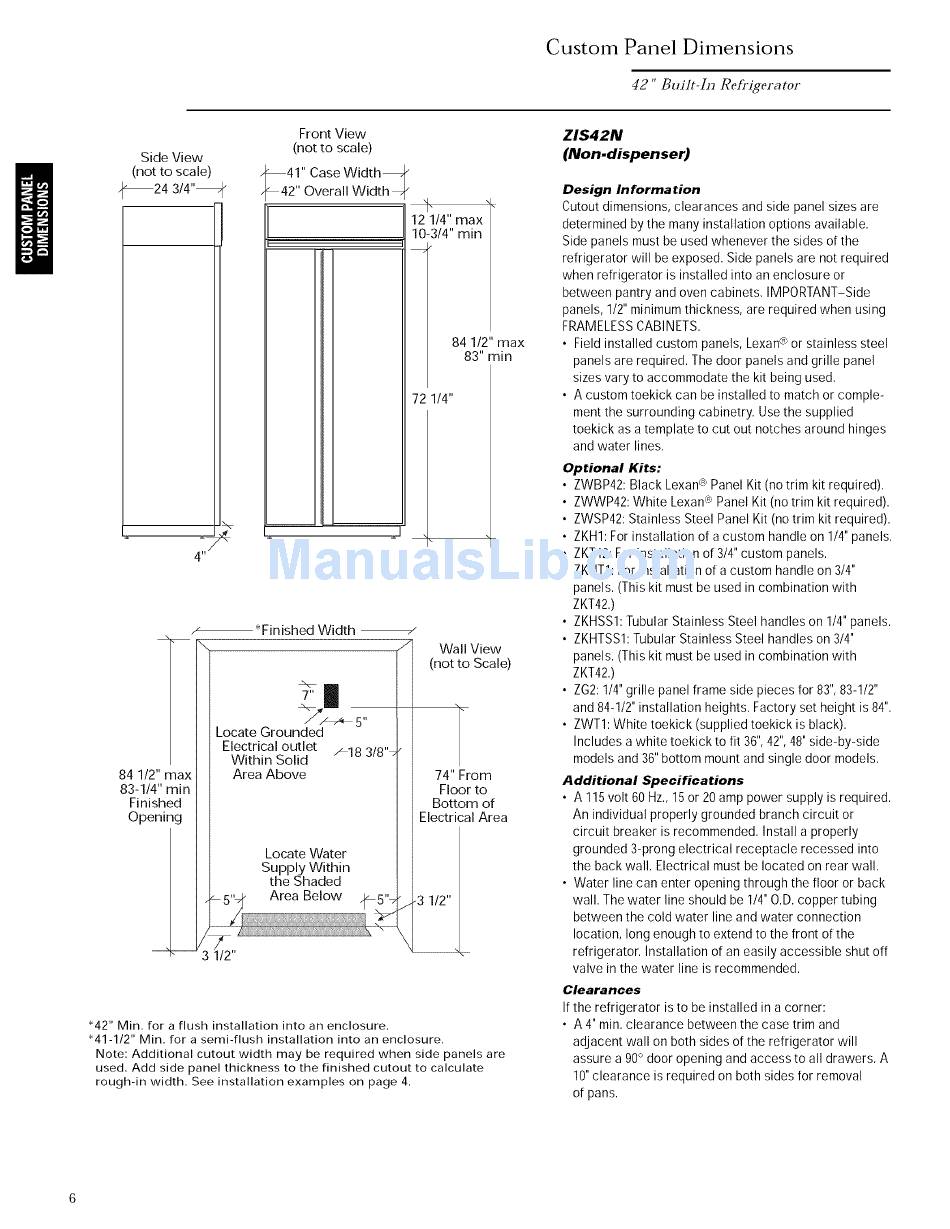

Custom Panel Dimensions
42" Built-In Refrigerator
Side View
(not to scale
--24 3/4"_
/
4"
Front View
(not to scale)
41" Case Width ,_"
2" Overall Width _
1-
12 1/4" max
10-3/4" min
84 1/2" max
83" min
m
_J
72 1/4"
84 1/2" max /
83-1/4" min ]
Finished |
Opening t_,
*Finished Width
_5"
Locate Grounded
Electrical outlet _18 3/8"_
Within Solid
Area Above
Locate Water
Supply Within
the Shaded
Wall View
(not to Scale)
74" From
Floor to
Bottom of
Electrical Area
3 1/2"
*42" Min. for a flush installation into an enclosure.
"41-1/2" Min. for a semi-flush installation into an enclosure.
Note: Additional cutout width may be required when side panels are
used, Add side panel thickness to the finished cutout to calculate
rough-in width. See installation examples on page 4.
ZIS42N
(Non-dispenser)
Design Information
Cutout dimensions, clearances and side panel sizes are
determined by the many installation options available.
Side panels must be used whenever the sides of the
refrigerator will be exposed, Side panels are not required
when refrigerator is installed into an enclosure or
between pantry and oven cabinets, IMPORTANT-Side
panels, 1/2" minimum thickness, are required when using
FRAMELESSCABINETS.
• Field installed custom panels, Lexan_>or stainless steel
panels are required. The door panels and grille panel
sizes vary to accommodate the kit being used,
• A custom toekick can be installed to match or comple-
ment the surrounding cabinetry. Use the supplied
toekick as a template to cut out notches around hinges
and water lines.
Optional Kits:
ZWBP42: Black Lexan_) Panel Kit (no trim kit required).
ZWWP42: White LexanC_ Panel Kit (no trim kit required).
ZWSP42: Stainless Steel Panel Kit (no trim kit required).
ZKHI: For installation of a custom handle on 1/4" panels.
ZKT42:For installation of 3/4" custom panels.
ZKHTI: For installation of a custom handle on 3/4"
panels. (This kit must be used in combination with
ZKT42.)
• ZKHSSI: Tubular Stainless Steel handles on 1/4" panels.
• ZKHTSSI: Tubular Stainless Steel handles on 3/4"
panels. (This kit must be used in combination with
ZKT42.)
• ZG2: 1/4" grille panel frame side pieces for 83",83-1/2"
and 84-1/2"installation heights. Factory set height is 84".
• ZWTI: White toekick (supplied toekick is black).
Includes a white toekick to fit 36",42", 48" side-by-side
models and 36" bottom mount and single door models.
Additional Specifications
• A 115volt 60 Hz., 15or 20 amp power supply is required.
An individual properly grounded branch circuit or
circuit breaker is recommended. Install a properly
grounded 3-prong electrical receptacle recessed into
the back wall. Electrical must be located on rear wall.
• Water line can enter opening through the floor or back
wall. The water line should be 1/4' O.B. copper tubing
between the cold water line and water connection
location, long enough to extend to the front of the
refrigerator. Installation of an easily accessible shut off
valve in the water line is recommended.
Clearances
If the refrigerator is to be installed in a corner:
• A 4"min. clearance between the case trim and
adjacent wall on both sides of the refrigerator will
assure a 90° door opening and access to all drawers. A
10"clearance is required on both sides for removal
of pans.
