Custom
Panel
Dimensions
42" Built-In
Refrigerator

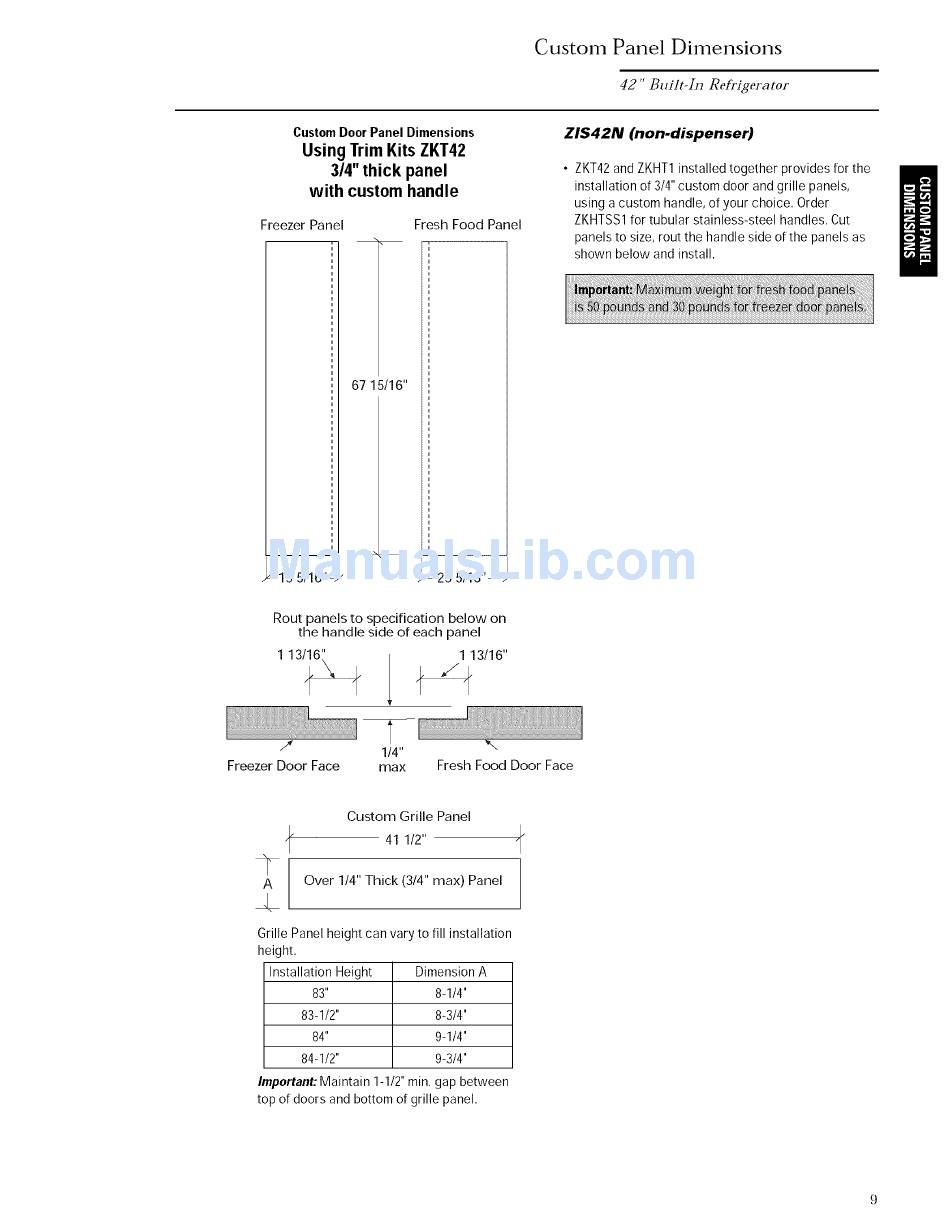

Custom Door Panel Dimensions
Using Trim Kits ZKT42
314"thick panel
with custom handle
Freezer
Panel
Fresh Food Panel
67 15/16"
_25
5/16"_
ZIS42N
(non-dispenser)
• ZKT42 and ZKHT1 installed together
provides for the
installation
of 3/4" custom door and grille panels,
l
using a custom handle, of your choice. Order
ZKHTSS1 for tubular stainless-steel
handles. Cut
panels to size, rout the handle side of the panels as
shown below and install.
Rout panels
to specification
below
on
the handle
side of each panel
1 13/16"
1 13/16"
f
1/4"
'%
Freezer Door
Face
max
Fresh Food Door Face
Custom
Grille
Panel
41 1/2"
A
Over
1/4" Thick
(3/4" max)
Panel
Grille Panel height can vary to fill installation
height.
Installation Height
Dimension A
83"
8-1/4"
83-1/2"
8-3/4"
84"
9-1/4"
84-1/2"
9-3/4"
Important:
Maintain
1-1/2" min. gap between
top of doors and bottom of grille panel.
