42" built-in refrigerators
Table of Contents

Advertisement

Custom
Panel
Dimensions
42" Built-In
Refrigerator

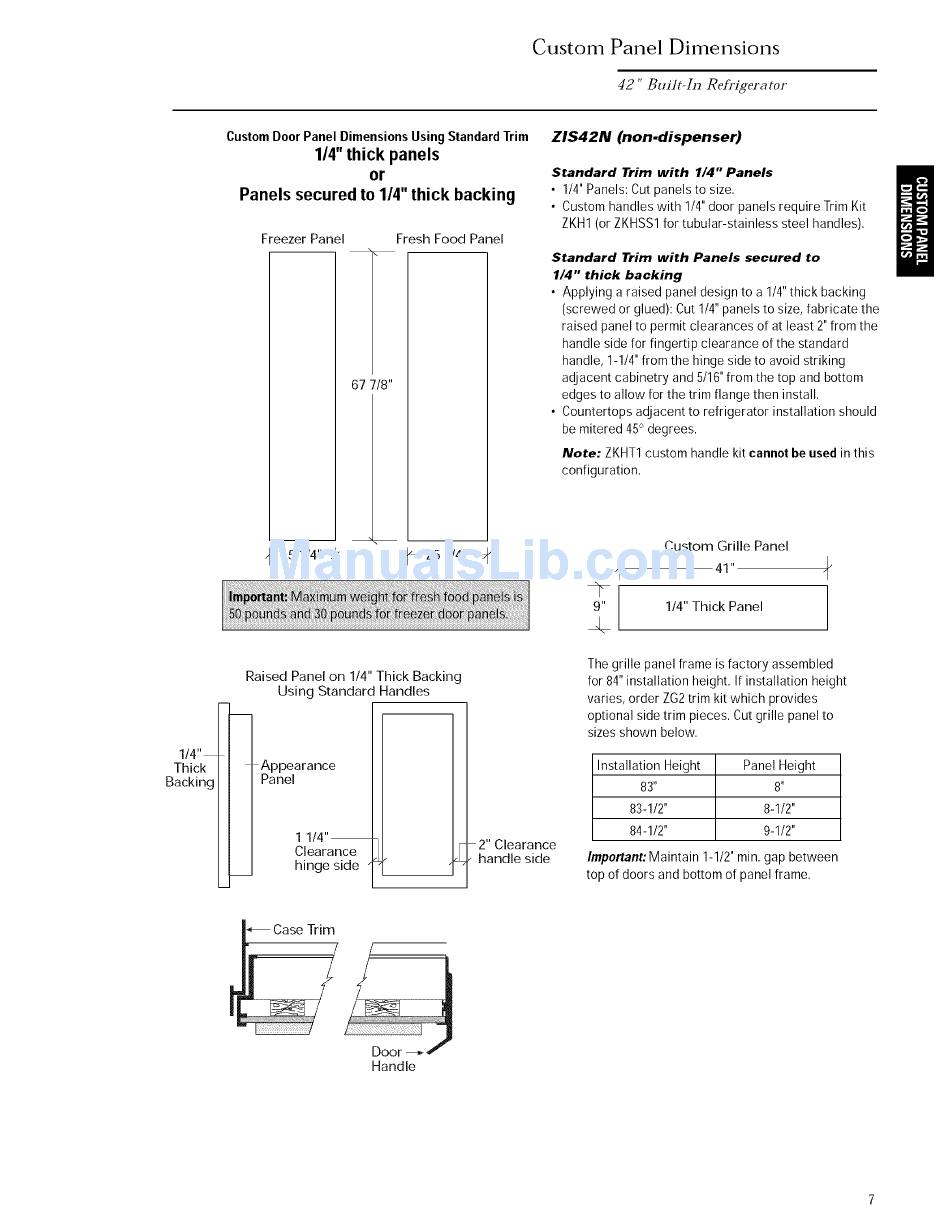

Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels
or
Panels secured to 1/4" thick backing
Freezer Panel
Fresh Food Panel
-15 1/4"-
67 7/8"
625
1/4"--
Raised
Panel on 1/4" Thick Backing
Using
Standard
Handles
1/4"_
Thick
I [
_Appearance
Backing][]
Panel
2" Clearance
handle
side
ZIS42N
(non-dispenser)
Standard
Trim with 1/4" Panels
• 1/4" Panels: Cut panels to size.
• Custom handles with 1/4" door panels require Trim Kit
ZKH1(or ZKHSS1 for tubular-stainless steel handles).
Standard
Trim
with
Panels
secured
to
1/4" thick
backing
• Applying a raised panel design to a 1/4" thick backing
(screwed
or glued): Cut 1/4" panels to size, fabricate
the
raised panel to permit clearances
of at least 2" from the
handle side for fingertip
clearance
of the standard
handle, 1-1/4" from the hinge side to avoid striking
adjacent
cabinetry
and 5/16" from the top and bottom
edges to allow for the trim flange then install.
• Countertops
adjacent
to refrigerator
installation
should
be mitered 45° degrees.
Note:
ZKHT1 custom handle kit cannot be used in this
configuration,
"r
9"
Custom Grille Panel
41"
1/4" Thick Panel
The grille panel frame is factory
assembled
for 84" installation
height. If installation
height
varies, order ZG2 trim kit which provides
optional
side trim pieces. Cut grille panel to
sizes shown below.
Installation Height
Panel Height
83"
8"
83-1/2"
8-1/2"
84-1/2"
9-1/2"
Important: Maintain 1-1/2" min, gap between
top of doors and bottom of panel frame.
Handle
