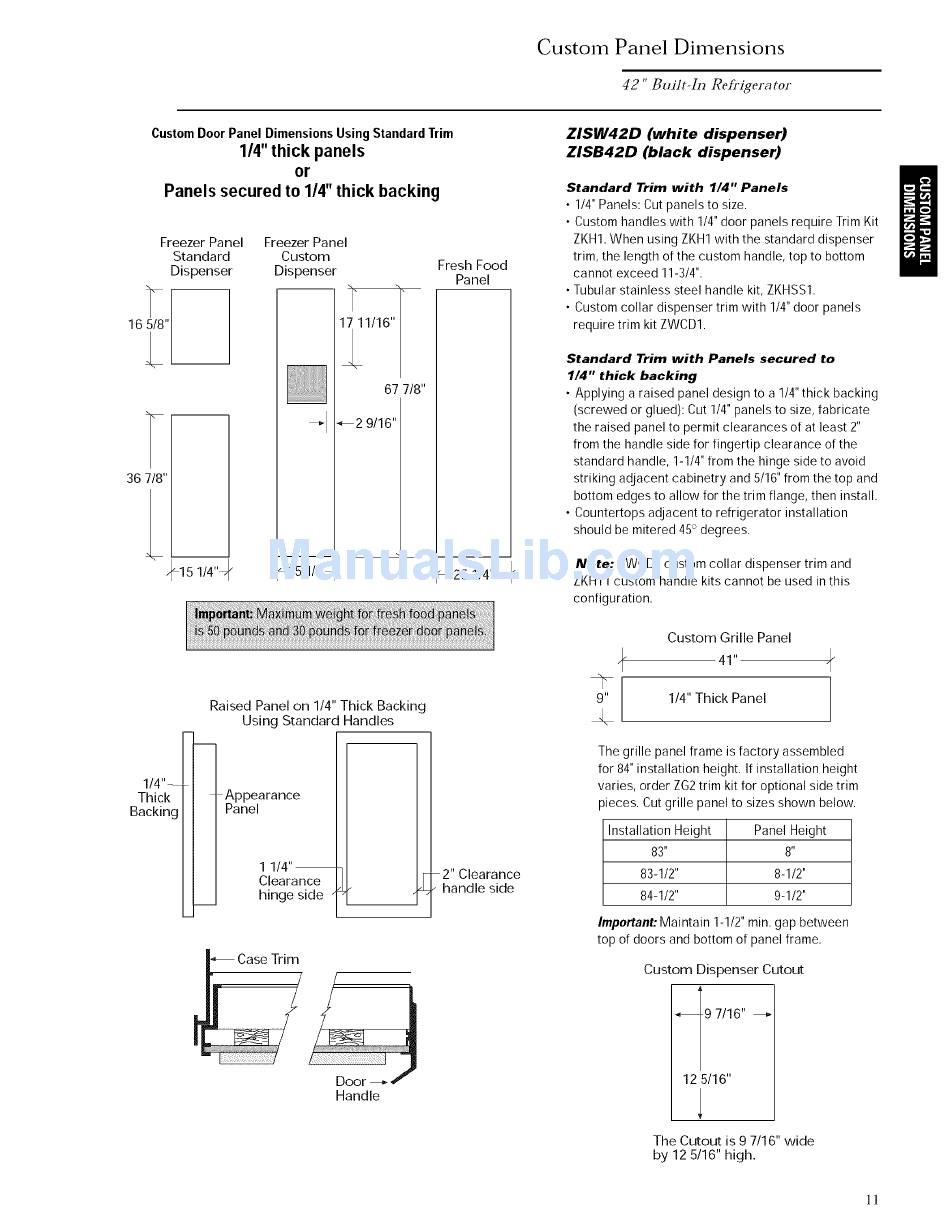

Custom Panel Dimensions
42" BuJlt-In Refrigerator
Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels
or
Panels secured to 1/4" thick backing
Freezer Panel Freezer Panel
Standard Custom
Dispenser Dispenser
67 7/8"
-.2 9/16"
36 7/8"
\
_15 1/4 4
Fresh Food
Panel
/25 1/4"
Raised Panel on 1/4" Thick Backing
Using Standard Handles
1/4"_
Thick
I I
_Appearance
Backingl I I Panel
Handle
2" Clearance
handle side
ZISW42D (white dispenser)
ZISB42D (black dispenser)
mm
Standard Trim with I/4" Panels
l
• 1/4" Panels: Cut panels to size.
• Custom handles with 1/4" door panels require Trim Kit
ZKH1. When using ZKH1 with the standard dispenser
trim, the length of the custom handle, top to bottom
cannot exceed 11-3/4".
• Tubular stainless steel handle kit, ZKHSS1.
• Custom collar dispenser trim with 1/4" door panels
require trim kit ZWCD1.
Standard Trim with Panels secured to
1/4" thick backing
• Applying a raised panel design to a 1/4" thick backing
(screwed or glued): Cut 1/4" panels to size, fabricate
the raised panel to permit clearances of at least 2"
from the handle side for fingertip clearance of the
standard handle, 1-1/4" from the hinge side to avoid
striking adjacent cabinetry and 5/16" from the top and
bottom edges to allow for the trim flange, then install.
• Countertops adjacent to refrigerator installation
should be mitered 45° degrees.
Note: ZWCD1 custom collar dispenser trim and
ZKHT1 custom handle kits cannot be used in this
configuration.
9"
4.
Custom Grille Panel
41"
1/4" Thick Panel
The grille panel frame is factory assembled
for 84" installation height. If installation height
varies, order ZG2 trim kit for optional side trim
_ieces. Cut grille panel to sizes shown below.
Installation Height Panel Height
83" 8"
83-1/2" 8-1/2"
84-1/2" 9-112"
Important: Maintain 1-1/2" min. gap between
top of doors and bottom of panel frame.
Custom Dispenser Cutout
_9 7/16" _
12 5/16"
The Cutout is 9 7/16" wide
by 12 5/16" high.
11
