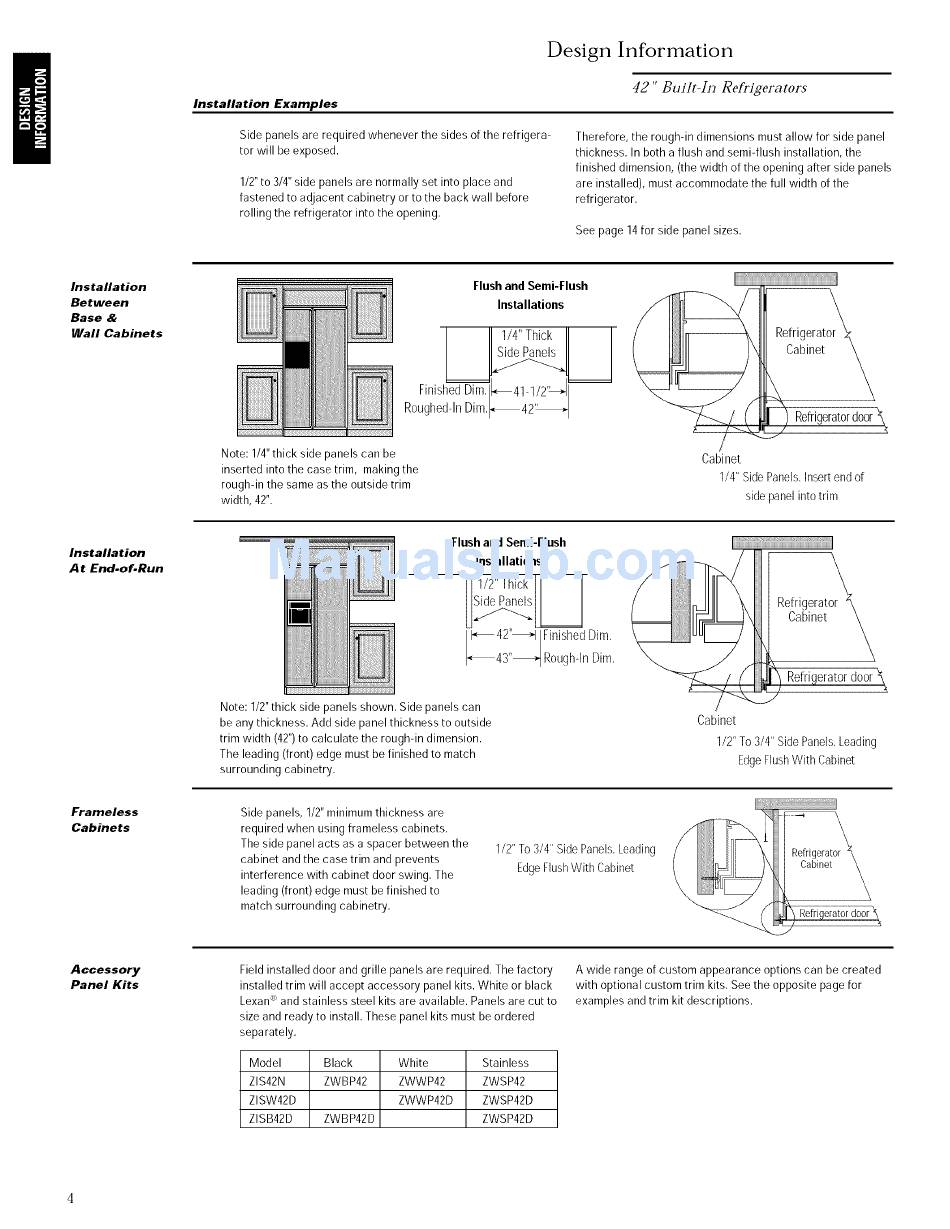

Design Information
42" Built-In Refrigerators
Installation Examples
Side panels are required whenever the sides of the refrigera-
tor will be exposed.
1/2" to 3/4" side panels are normally set into place and
fastened to adjacent cabinetry or to the back wall before
rolling the refrigerator into the opening.
Therefore, the rough-in dimensions must allow for side panel
thickness. In both a flush and semi-flush installation, the
finished dimension, (the width of the opening after side panels
are installed), must accommodate the full width of the
refrigerator.
See page 14for side panel sizes.
Installation
Between
Base &
Wall Cabinets
Flush and Semi-Flush
Installations
I II1/4"Thick II I
Finished Dim_4. 1-1/2' _'_1
Roughed-In Dim._42_ I
Note: 1/4"thick side panels can be
inserted into the case trim, making the
rough-in the same as the outside trim
width, 42".
Refrigerator_
Cabinet
1/4" Side Panels, Insert end of
side panel into trim
Installation
A t End-of-Run
Frameless
Cabinets
Flush and Semi-Flush
Installations
1/2" Thick I I
I
_- 42"_Finished Dim.
43"_ Rough-In Dim.
Note: 1/2" thick side panels shown. Side panels can
be any thickness. Add side panel thickness to outside
trim width (42")to calculate the rough-in dimension.
The leading (front) edge must be finished to match
surrounding cabinetry.
Cabinet
Refrigerator_
Cabinet _
[_ Refrigerator door \
./
1/2" To 3/4" Side Panels.Leading
EdgeFlushWith Cabinet
Side panels, 1/2" minimum thickness are
required when using frameless cabinets.
The side panel acts as a spacer between the
cabinet and the case trim and prevents
interference with cabinet door swing. The
leading (front) edge must be finished to
match surrounding cabinetry.
1/2" To 3/4" Side Panels.Leading
EdgeFlushWith Cabinet
Cabir_ \\
\
Accessory
Panel Kits
Field installed door and grille panels are required. The factory
installed trim will accept accessory panel kits. White or black
Lexan''_and stainless steel kits are available. Panels are cut to
size and ready to install. These panel kits must be ordered
separately.
Model Black White Stainless
ZIS42N ZWBP42 ZWWP42 ZWSP42
ZISW42D ZWWP42D ZWSP42D
ZISB42D ZWBP42D ZWSP42D
A wide range of custom appearance options can be created
with optional custom trim kits. See the opposite page for
examples and trim kit descriptions.
