GE Monogram ZET1058 Installation Instructions Manual

GE Monogram ZET1058 Installation Instructions Manual

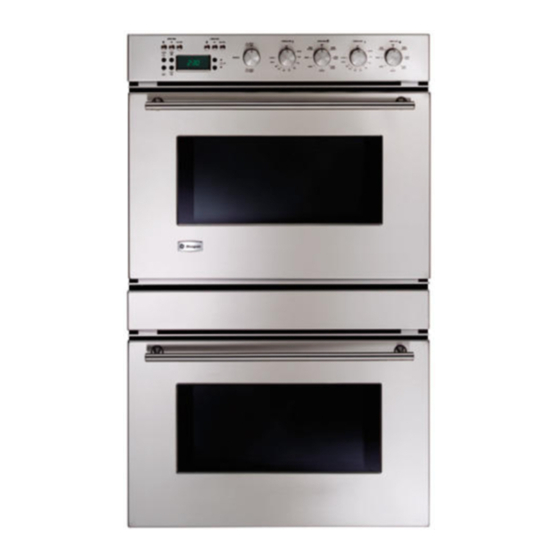

30" convection built-in ovens
Hide thumbs Also See for Monogram ZET1058:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Installation
Instructions
30" Convection
Built-In Ovens
Models:
ZET1038
ZET1058
0
Monogram:
We bring good things to life.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monogram ZET1058 and is the answer not in the manual?

Questions and answers

Related Manuals for GE Monogram ZET1058

Summary of Contents for GE Monogram ZET1058

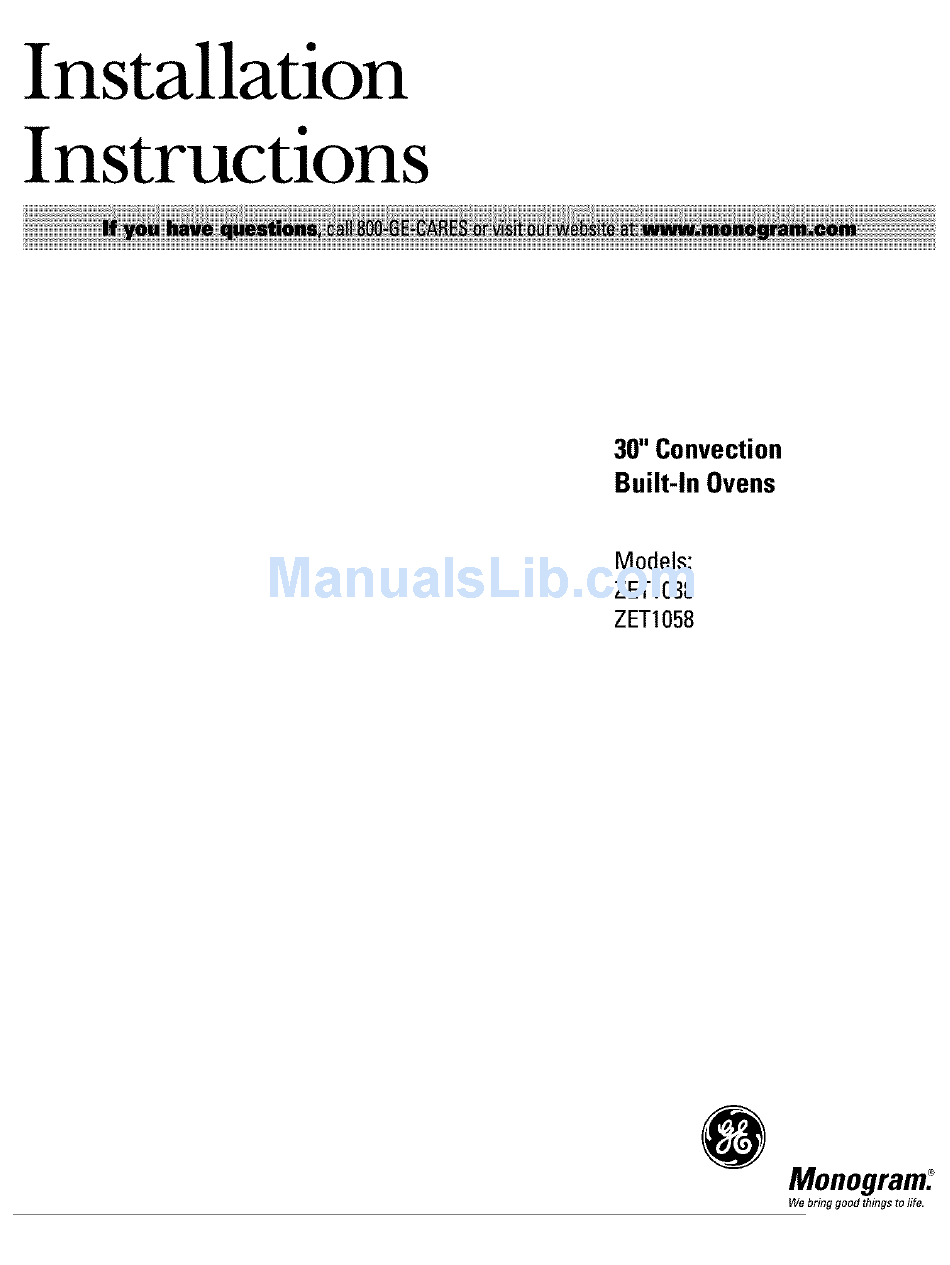

  • Page 1 Installation Instructions 30" Convection Built-In Ovens Models: ZET1038 ZET1058 Monogram: We bring good things to life.
  • Page 2 Installation Instructions BEFORE YOU BEGIN CAUTION: Read these instructions completely Due to the weight and size of these wall and carefully. ovens and to reduce the risk of personal injury or IM PORTANT- Save these instructions damage to the product, TWO PEOPLE ARE RE- QUIRED FOR PROPER INSTALLATION.

  • Page 3: Table Of Contents

    22-7/8" is located on the top of the oven case. • Ovens are not approved for side-by-side or stackabte installations. 1 22' Models Dim. A ZET1038,ZET1058 2-7/8" ZET1038_ ZET1058P 4-_16" Double Ovens 1/2 '_ _29-1/4"_ iii-3j4,, 21-1j4,, 47-1/2"...

  • Page 4: Framed Cabinet, Single Oven

    Cabinetry Framed Cabinet, Single oven Framed Cabinet, Double Oven 30"_23-1/2%' I23-1/2" 1 Inside 28" Min. 28-3/8" Max. 28"Min. 47-5/8" 28-3/8"Max. Min. 47-3/4" Max. Order a 30" oven cabinet with the cutout sized to fit Order a 30" oven cabinet with the cutout sized to fit the double oven.

  • Page 5: Installation Over Warming Drawer

    Cabinetry Installation Over a Monogram Warming Drawer Double Oven Single Oven 23-1/2" Min, _lnside_ 2x2 or 2x4 2x2 or 2x4 Anti-Tip Block Anti-Tip Block Against Rear Against Rear _Wall, 9" From Wall, 9" From Floorto Floor to Bottom of Bottom of 47-5/8"...

  • Page 6: Installation Below Advantium

    Cabinetry Installation Below a Installation Between Monogram Advantium Oven Monogram Advantium Oven and a Warming Drawer 23-1/2" Min. _lnside _,,_ 2" Min. 2" Min. 2" Min. Note: Install the oven only with 45-1/4" specific models 45-1/4" listed on the label located on top of the oven.

  • Page 7: Installation Preparation

    Installation Preparation ELECTRICAL REQUIREMENTS TOOLS and MATERIALS YOU WILL NEED These Monogram built-in ovens require a separate properly grounded 3-wire 120/208 or 120/240 volt, 60 • 2 X 4 Lumber for runners or 3/4" thick shelving Hz power supply, protected by a time delay fuse or •...

  • Page 8: Provide Oven Supports

    Installation Preparation PROVIDE OVEN SUPPORTS ISTEP 11 REMOVE PACKAGING Ovens may be supported by either a solid bottom or by 2 x 4 runners. • Remove the carton, plastic coverings and styrofoam • The support must be level and rigidly mounted, flush side/corner posts.

  • Page 9: Installation Instructions Step 2, Install Junction Box

    Installation Preparation • If a cold water pipe is interrupted by plastic, non- metallic gaskets, union connections or other insulat- ing materials, DO NOT use for grounding. ELECTRICAL SHOCK HAZARD The electrical power to the oven • DO NOT ground to a gas pipe. branch circuit must be shut-off •...

  • Page 10: Step 3, 208V Electrical Supply

    Installation Instructions SKIP THIS STEP IF YOU ARE CONNECTING [STEP 208V ELECTRICAL SUPPLY TO 240 VOLT POWER SUPPLY. WARNING If connecting to a 208 volt, 60 HZ supply, a jumper must be used across two terminals. These ovens are pre-wired for connection to 240 volt, •...

  • Page 11: Step 4, Remove Oven Door(S)

    Installation Instructions REMOVE OVEN DOOR(S) [STEP 51 ROUTE CABLE THROUGH CUTOUT • Open the door fully. CAUTION • Push hinge latches up to lock hinges in open position, 0ven(s) are very heavy. 2 people are required to lift oven(s) into the opening. Ovens have side handles, Grasp side handle with one hand and put other hand into the oven opening.

  • Page 12: Step 6, Secure Oven To Cabinet

    Installation Instructions ISTEP 61 SECURE OVEN TO I STEP 7_ REPLACE OVEN DOOR CABINET • Grasp door firmly on both sides. • Slide the hinge slots in the bottom of the door over • Slide oven into cabinet opening. the hinges. •...

  • Page 13: Step 8, Connect Electrical

    Installation Instructions [STEP CONNECT ELECTRICAL RISQUE DE CHOC ELECTRICAL SHOCK HAZARD I_LECTRIQUE • Electrical ground is required on • Cet appareit dolt _tre mis _ la this appliance terre. WARNING AVERTISSEMENT • DO NOT connect to the electrical • NE PAS brancher l'alimentation supply until appliance is perma- _lectrique si l'appareil n'est pas nently grounded.

  • Page 14: Installation Checklist

    Installation Instructions INSTALLATION CHECKLIST 1. Turn all knobs to OFF or Normal. 2. Turn on power atthe circuit breaker. 3. Set the clock for current time of day. Refer to the Owner's Manual for instructions. 4. Check oven door for full opening and closing. Oven lights should be on when the door is opened and off when the door is closed.
  • Page 15 Notes...
  • Page 16 Monogram: We bring good things to life. GE Consumer Products general Electric Company Pub. No. 49-80188 Louisville, KY 40225 Dwg. No. 164D4290P344 @2083 GenoralElectric Company 1ND. 0 2512/03 Printed in Italy...
