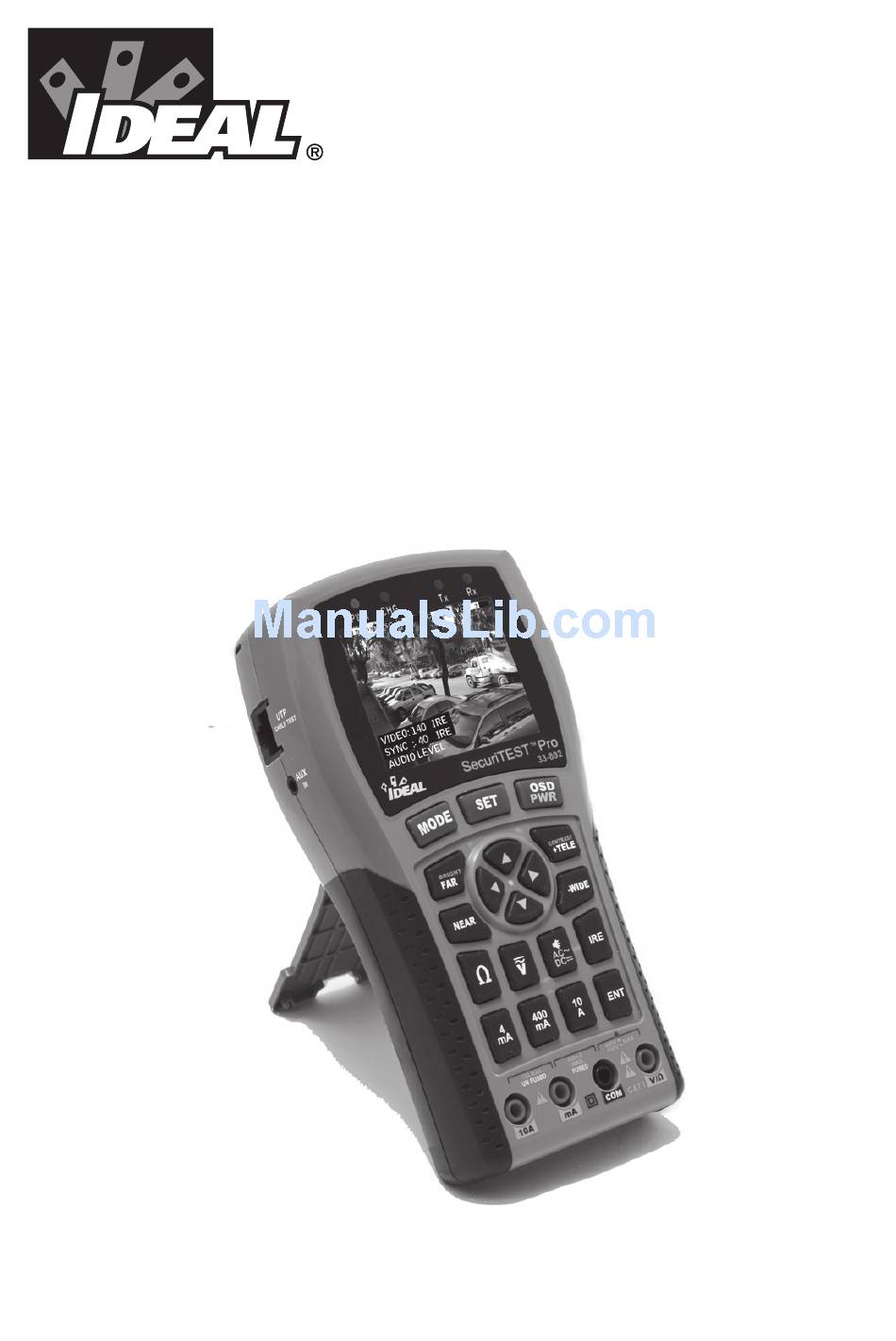

- Page 1 SecuriTEST Model 33-892 User’s Manual Supplement Document # 6510-02-0001 rev A...

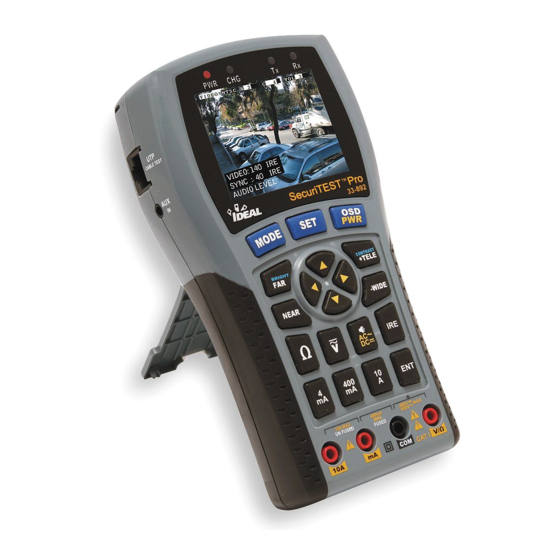

- Page 2 SecuriTEST PRO CCTV multi-tester. This manual supplement describes the additional features and functions that are available with the SecuriTEST PRO. Refer to the user’s manual for the standard SecruiTEST for a description of the features and functions that are common to both models.
- Page 3 Video, Sync and Audio Level Testing Press the MODE button repeatedly to change the the Video Tester screen indicated by “VIDEO” in the upper- left corner of the screen. By default the Video and Sync levels will be displayed in the lower-left portion of the screen. If there is no video signal at the VIDEO IN port of the SecuriTEST PRO no information will be displayed.
- Page 4 1IRE=7.1mV Sync Level peak-to-peak = 40IRE Understanding Video and Sync Level SecuriTEST PRO measures the combined Luminance and Burst levels of a composite video signal as the Video Level. The Sync signal is embedded between the Luminance and Color Burst signals. See the following chart for a description of the levels that are expected.
- Page 5 Audio IN port. Instead the white bar graph indicator will move to indicate the presence of an audio signal. Additionally the audio can be heard through the internal speaker of the SecuriTEST PRO. Pressing the Page 4...
- Page 6 Battery Use and Charging UP and DOWN arrow keys adjusts the volume of the internal speaker. Page 5...
- Page 7 Charge LED switch and (green) charging port The SecuriTEST PRO features an internal lithium polymer rechargable battery pack. The benefits of the lithium polymer battery are that it holds more energy while weighing less than other types of battery technologies such as nickel cadmium (NiCd) or nickel metal hydride (NiMH).
-
Page 8: Battery Charging
SecuriTEST PRO uses a polymer battery pack that is housed inside the case of the tester for protection. The back cover of the tester can be removed to access the battery for replacement after its useful life. When replacing the battery take care not to puncture the metal foil or crush the cell. - Page 9 however they do have a limited number of charge cycles (300-500) before they begin to loose capacity. Additionally, all lithium batteries loose about 20% of their capacity per year, even if unused. Contrary to the procedure with NiCd and NiMH batteries, lithium batteries give the best performance and longevity when they are charged before they are run completely down.
