Summary of Contents for IDEAL SecuriTEST

  • Page 2: Table Of Contents

    TEST U ’ ECURI ANUAL ABLE OF ONTENTS ....……………..1 AFETY RECAUTIONS 1. S ....……………..2 AFETY NFORMATION ....……………....2 ARNINGS ..…………....3 AFETY NFORMATION ...………....5 ATTERY RECAUTIONS 2. I ....………………... 7 NTRODUCTION ....……………....7 EATURES ..…………...... 7 UNCTIONS ..…………..
  • Page 3 Read the “Safety Information” portion of the manual before using the SecuriTEST CCTV tester. This manual is for users of the IDEAL SecuriTEST multi- function CCTV tester. The manual describes the operation and function of the various features of SecuriTEST.

  • Page 4: Afety Recautions

    WARNING TEST S ECURI AFETY RECAUTIONS When using the Digital MultiMeter function to measure voltage or current, be sure that the input does not exceed the capabilities of the tester. Overloading the tester can cause damage or personal injury. When measuring current of unknown values, always begin with the 10A mode, then step down to the 400mA input if necessary.
  • Page 5 Do not use the unit in damp conditions or environments where explosive gases may be present. Do not handle the unit with wet hands. Avoid dropping or causing mechanical shock to the unit. Do not expose the ports to liquids and avoid exposure to dust. Use only specified replacement fuses.
  • Page 6 This page intentionally left blank.
  • Page 7 WARNING ATTERY HARGING RECAUTIONS SecuriTEST is capable of recharging NiMH batteries installed in its battery compartment. Attach the included 12V adapter to the handset to charge the batteries. Charging time takes 8 hours. Operation time is approximately 3- 4 hours on a fully charged set of batteries.
  • Page 8 - Battery Precautions - The following batteries can be used with SecuriTEST: > AA size alkaline batteries > AA size rechargeable nickel metal hydrogen (Ni-MH) batteries When charging batteries in SecuriTEST: Place both the MAIN POWER and the CHARGE SWITCH to the “ON”...

  • Page 9: Features

    Digital MultiMeter. All functions are controlled through the front keypad and on- screen display. For testing each function, set up modes and capacities to be tested, using the keypad located on the front part of SecuriTEST. TEST UNCTIONS OF ECURI...
  • Page 10 TANDARD CCESSORIES The following items are included with the SecuriTEST CCTV Tester. • SecuriTEST Main Body • User’s Manual • Test Lead Set (Red, Black) • AC Adapter • Rechargeable AA Nickel Metal Hydrogen (Ni-MH) Battery (6ea) • Neck Strap •...
  • Page 11 & F AMES UNCTIONS...

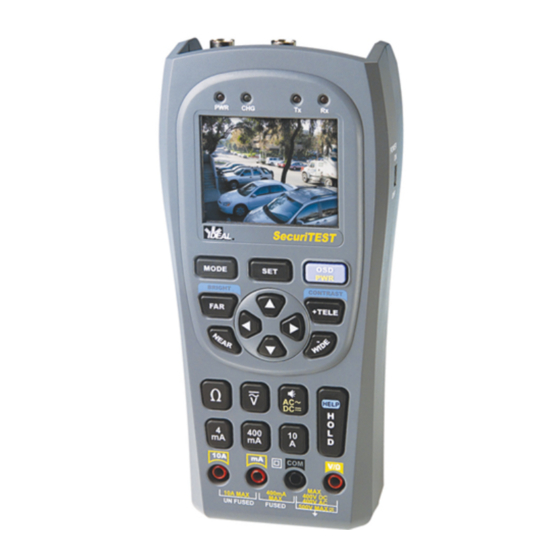

  • Page 12 Data Receiving Red LED is on when PTZ data is received 2.5” Color TFT LCD Controls cameras connected to Keypad SecuriTEST Mode Select (Video, MultiMeter, PTZ MODE Button Control, UTP Test) Used when setup is changed, hold for SET Button...
  • Page 13 UNCTION Selects functions of Digital MultiMeter MultiMeter Keys Resistance Button Selects Resistance Mode Voltage Button Selects Voltage Mode Setup Change Toggles AC/DC Mode & Button Selects Continuity Test Current Measuring Selects low Current (below 4mA) Mode Button 1 C urrent Measuring Selects Current (below 400mA) Mode Button 2 Current Measuring...
  • Page 14 UNCTION Connect to camera output to display Input BNC image on screen Use as pass-through port for camera Output BNC image or to output video test signal to external monitor Communication Input & Output of communications Port signals Kickstand Hold unit upright when extended Neck-strap Hook Connect neck-strap here to hang unit Neck-strap Hook Can be used to hang the unit upside down...
  • Page 15 UNCTION UTP Jack Test jack for UTP Cable Audio, AUX Input Port AUX Jack (for future use) DC Power Input Jack DC Power Jack (for over DC12V, 1A) Power S/W Main Power Supply ON/OFF switch...

  • Page 16: Specifications

    ENERAL PECIFICATIONS Input Voltage 12V ± 10% above 1A Rechargeable Ni-MH battery 6ea Battery (AAsize) Electric Characteristics Charging Above 8 hrs Time Built-in Charger Operation > 3 hrs Time TV Type NTSC / PAL Image Image Level 1 Vpp, 140IRE Protocol Multi-Protocol support PTZ Operation...

  • Page 17: Meter Specifications

    ETER PECIFICATIONS Measuring Minimum Measured Value Accuracy Item Measuring 400mV 100uV ± (0.8% + 2dgts) DC Voltage ± (1.0% + 2dgts) 10mV 400V 100mV ± (1.2% + 3dgts) AC Voltage 10mV (40Hz ~ 500Hz) 400V 100mV 400uA 0.2uA ± (1.0% + 2dgts) DC Current 40mA 20uA...
  • Page 18 Measuring Minimum Measured Value Accuracy Item Measuring 400uA 0.2uV ± (1.5% + 5dgts) (40Hz ~ 500Hz) 40Hz ~ 500Hz AC Current 40mA 20uV ± (1.8% + 5dgts) (40Hz ~ 500Hz) 400mV 40Hz ~ 500Hz 400mA 200uV ± (3.0% + 4dgts) 40Hz ~ 500Hz ±...

  • Page 19: Power On/Off

    OWER IS When power is on, the OSD is displayed, and it enters automatically to the video test mode after 3 ~ 5 sec. The initial OSD displays its SecuriTEST version and the initial setup on the screen. Product Version: 2.02 Firmware Version: 2.03...
  • Page 20 ETUP Pressing the key changes the operation mode between VIDEO, METER, PTZ, and UTP. To directly select a mode, press and hold the for 3 seconds then choose a mode and press the key to select the mode. Video Tester Mode: In this mode, the image quality of the external input picture signal is tested, or the monitor, etc.
  • Page 21 View Information Mode: In this mode, the basic information of SecuriTEST can be seen. (Version, battery level, communications protocol and speed.) Main Setting Mode: At this mode, the basic setup of SecuriTEST can be changed. (User’s name, auto power off time, beeper, brightness, contrast, etc.)
  • Page 22 OSD Screen Setup VIDEO: Indicates that the system is in video test mode. NTSC: Indicates if input or output video signal system is NTSC or PAL. Input video signal is output on LCD screen automatically. Output video signal in Pattern Generator mode can be switched to NTSC or PAL, using keys.
  • Page 23 PATTERN GENERATION MODE Enter the PATTERN GENERATION MODE when key is pressed in VIDEO mode. Output is changed between NTSC or PAL, using keys. Output patterns can be cycled between COLOR BAR, RED, BLUE, GREEN using keys. COLOR BAR BLUE GREEN Press key to return to Video MODE.

  • Page 24: Igital Ulti

    ULTI ETER Voltage, Current, Resistance, continuity can be measured. WARNING To prevent an electric shock, injury or damage to SecuriTEST, turn off the power supply of the circuit, and discharge all the high-voltage capacitors before testing resistance and continuity. When using the meter function of your SecuriTEST, make sure to turn on its power and set the proper mode before connecting the test leads to the circuit to be tested.
  • Page 25 METER MODE LCD WINDOW ESCRIPTION OF UNCTION ESCRIPTION - Resistance test Test Mode - Continuity test - Set-up tests of DC/AC voltage, current unit of resistance test is indicated - Indicator of AC or DC value of voltage Test Value or current - AC voltage &...
  • Page 26 UNCTION ESCRIPTION DC Voltage test AC Voltage test Resistance test (Measuring unit: Voltage test VOLT (Measuring unit: V) Current test (Measuring unit: mA, A) Continuity test (Beeps below 80 ) MEASURING RESISTANCE The unit of measurement is . The meter sends low current into the circuit to measure its resistance.
  • Page 27 ESTING ONTINUITY Continuity indicates the presence of a complete path for current flow. The continuity test features a beeper that sounds when a circuit is complete. The beep allows users to quickly test continuity without having to watch the display. How to test: The resistance mode changes to the continuity mode, when is pressed.
  • Page 28 AC & DC V EASURING OLTAGE Voltage means the difference in electrical potential between two points. The polarity of AC voltage varies over time, while the polarity of DC is constant over time. The meter displays AC voltage value as rms (root mean square) readings. The rms value means the equivalent dc voltage that can produce the same amount of heat in a resistance as the measured sinewave voltage.
  • Page 29 AC & DC C EASURING URRENT Current is simply defined as a flow of electrons running through a conductor. To measure current, you must break the circuit under test, and place the meter in series with the circuit. The current measuring range of the meter is 10A max. How to measure: First, turn off the power to the circuit and discharge any high voltage capacitors.

  • Page 30: Warnings

    WARNING Check the position of the test lead set in current test mode. Place the red lead at mA only when below 400mA, and place it at 10A when the value to be tested is over 400mA, or the value is unknown. WARNING Do not attempt to measure voltage when the test leads are connected to the mA or 10A port.
  • Page 31 PTZ C ONTROLLER How to connect each terminal and LCD screen PTZ Operation Test: Up, Down, Left, Right, Zoom and Manual focus control are possible. The tester can also be set to various protocols and transmission speeds (baud rates). To use - PTZ Control Setup Screen Communications ADD Setup Screen...
  • Page 32 When you want to know the input signal of an exterior controller, you can see the input data by connecting the communications cable to the RX terminal of the SecuriTEST. Using the PTZ Controls PT control (Up, Down, Left, Right), is performed using the arrow keys.
  • Page 33 SPST: Memorizes PRESET. Setup can range from 1 up to 99. (Short for SET PRESET) First, move the camera to the desired view and press the key, then using the & keys, select SPST and set the address to store using the &...

  • Page 34: Ptz Control

    PROTOCOL: Setup of PTZ PROTOCOL Camera manufacturer use various communications protocols to control the PTZ functions of the camera. Use the PROTOCOL menu to set the output of SecuriTEST to match the protocol of the camera system in use.
  • Page 35 * BAUDRATE: Setup of TRANSMISSION SPEED The initial setup is 2.4kbps, it can be set from 2.4kbps to 38.4kbps. To escape from the PTZ CONTROL SETUP mode, press the key again. CAUTION Make sure to check for CAMERA ID, PROTOCOL, BAUDRATE when testing.

  • Page 36: Utp Cable Tester

    UTP Cable Tester Connect one end of the UTP cable to be tested to the UTP Cable Test port of SecuriTEST and the other end to the yellow UTP Cable terminator. The connected condition of the cable can be tested, by pressing .
  • Page 37 Then each setup value can be changed by pressing & keys. A user can enter the name he or she wants by editing USER NAME. SLEEP TIME sets the time that SecuriTEST will remain on when no button presses are detected.
  • Page 38 This page intentionally left blank.
  • Page 39 IDEAL Industries, INC. Becker Place Sycamore, IL 60178 Customer Service: 800-435-0705 www.idealindustries.com www.idealindustries.co.uk www.idealindustries.de Made in Korea...
