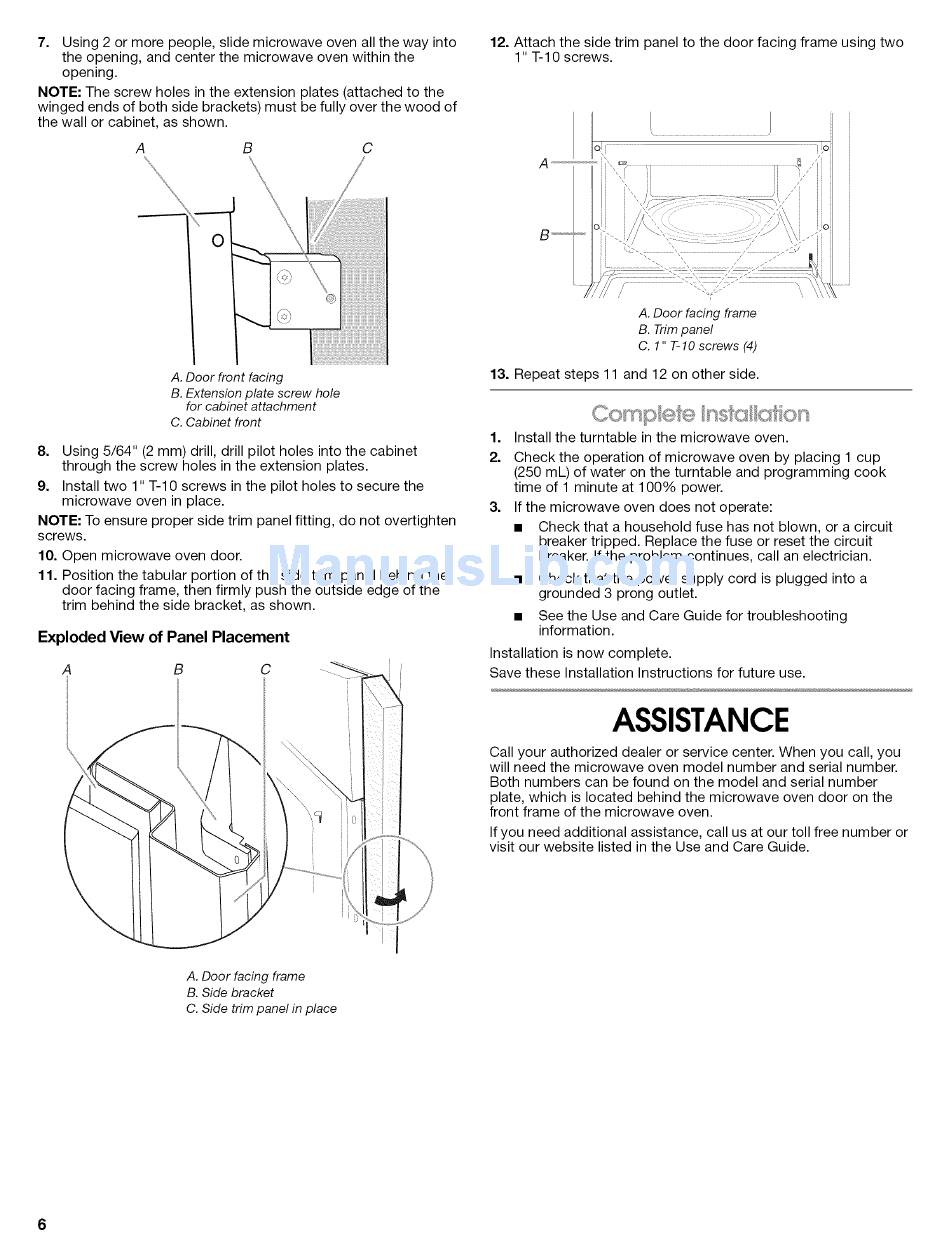

IKEA IBMS1450VMS0 Installation Insrtuctions page 6

7. Using 2 ormore people, slide microwave oven all t hewayinto
theopening, andcenter themicrowave oven within the
opening.
NOTE: The screw holes intheextension plates ( attached tothe
winged e nds ofboth side brackets) must b efully over t he wood of
thewall o rcabinet, asshown.
A B C
A. Door front facing
B. Extension plate screw hole
for cabinet attachment
C. Cabinet front
8. Using 5/64" (2 mm) drill, drill pilot holes into the cabinet
through the screw holes in the extension plates.
9. Install two 1" T-10 screws in the pilot holes to secure the
microwave oven in place.
NOTE: To ensure proper side trim panel fitting, do not overtighten
screws.
10. Open microwave oven door.
11. Position the tabular portion of the side trim panel behind the
door facing frame, then firmly push the outside edge of the
trim behind the side bracket, as shown.
Exploded View of Panel Placement
A B C
12. Attach the side trim panel to the door facing frame using two
1" T-10 screws.
A_
S_
I.................................................................................................. J
[ ................................. "... ............................ ............... /
A. Door facing frame
B. Trim panel
C. 1" T-IO screws (4)
13. Repeat steps 11 and 12 on other side.
1.
2.
3.
Install the turntable in the microwave oven.
Check the operation of microwave oven by placing 1 cup
(250 mL) of water on the turntable and programming cook
time of 1 minute at 100% power.
If the microwave oven does not operate:
• Check that a household fuse has not blown, or a circuit
breaker tripped. Replace the fuse or reset the circuit
breaker. If the problem continues, call an electrician.
Check that the power supply cord is plugged into a
grounded 3 prong outlet.
See the Use and Care Guide for troubleshooting
information.
Installation is now complete.
Save these Installation Instructions for future use.
ASSISTANCE
Call your authorized dealer or service center. When you call, you
will need the microwave oven model number and serial number.
Both numbers can be found on the model and serial number
plate, which is located behind the microwave oven door on the
front frame of the microwave oven.
If you need additional assistance, call us at our toll free number or
visit our website listed in the Use and Care Guide.
A. Door facing frame
B. Side bracket
C. Side trim panel in place
6
