IKEA IBMS1455XB0 Manual

IKEA IBMS1455XB0 Manual

Built-in microwave
Hide thumbs Also See for IBMS1455XB0:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10242830 Installation
Instructions
W10242827 Use & Care Guide
W10242829 Cook Guide Label
W10242828 Oper Instruct
W10242831 Tech Sheet
2−10 Litho in U.S.A. (rek)(bay)

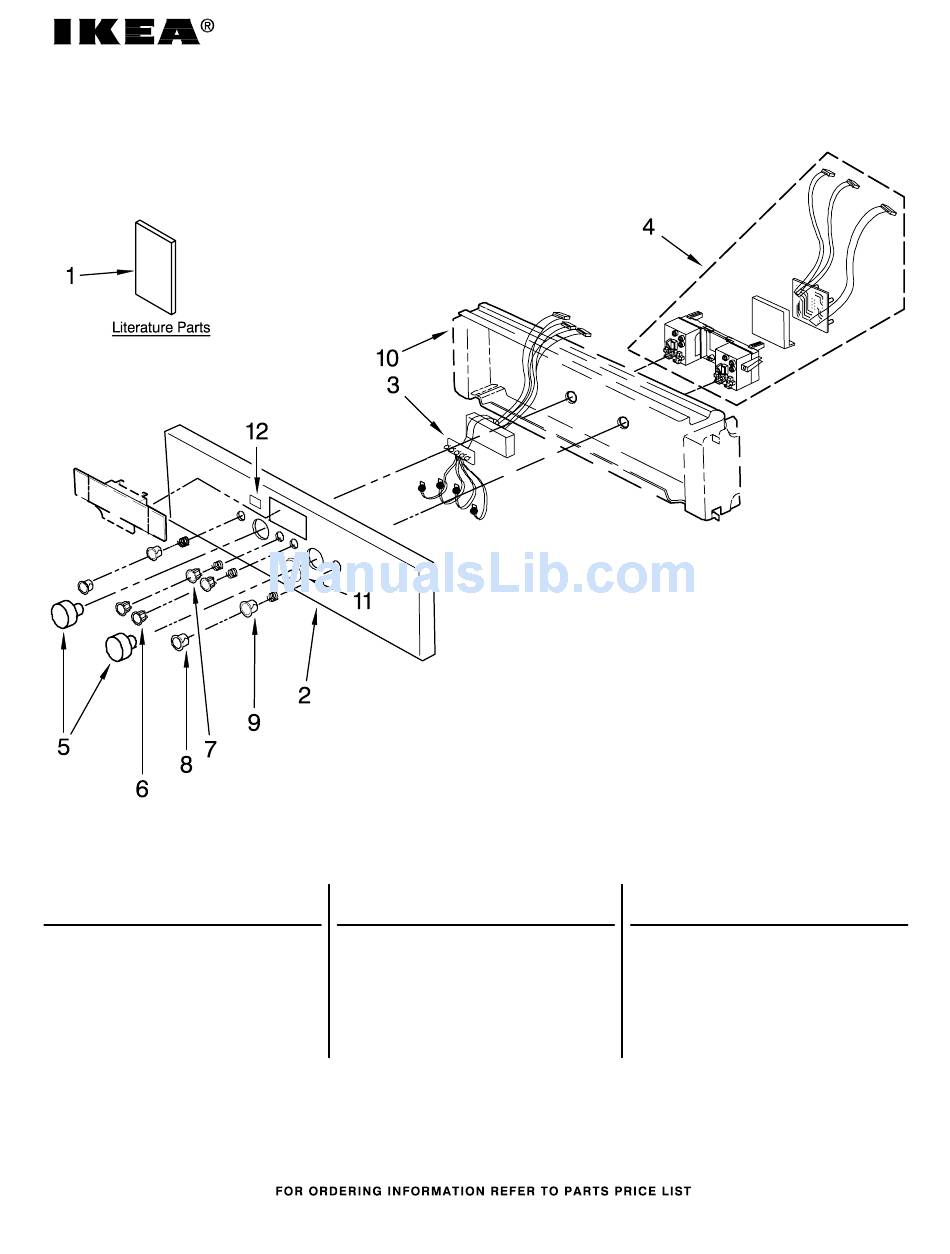

CONTROL PARTS
For Model: IBMS1455XB0
(Black)
Illus.
Part
No.
No.
DESCRIPTION
2
Panel, Control
W10317090 Black
3 W10317093 Board, Display
4 W10251246 Control, Unit
5 W10251251 Knob
6 W10251249 Button
1
BUILT−IN MICROWAVE
Illus.
Part
No.
No.
DESCRIPTION
7 W10251250 Holder, Button
8 W10251249 Switch
9 W10251250 Housing, Switch
10 W10253042 Support, Panel
11
8186858 Ring, Clamp
12 W10251401 Disc, Function
Part No. W10318642 Rev. A
