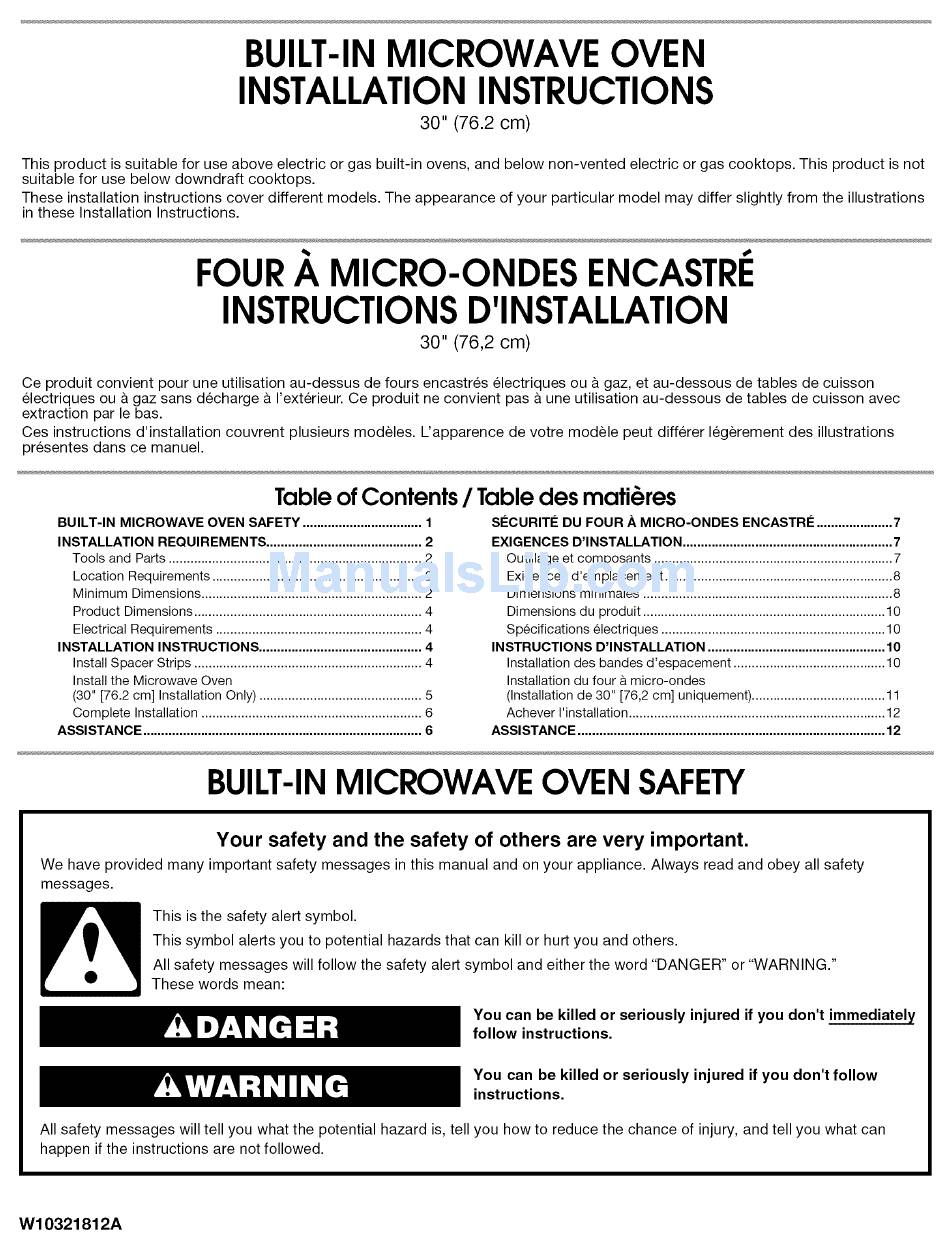

BUILT-INMICROWAVE OVEN
INSTALLATION INSTRUCTIONS
30" (76.2 cm)
This product is suitable for use above electric or gas built-in ovens, and below non-vented electric or gas cooktops. This product is not
suitable for use below downdraft
cooktops.
These installation instructions
cover different models. The appearance of your particular model may differ slightly from the illustrations
in these Installation Instructions.
FOURA MICRO-ONDES ENCASTRE
INSTRUCTIONS D'INSTALLATION
30" (76,2 cm)
Ce produit convient pour une utilisation au-dessus de fours encastres electriques ou & gaz, et au-dessous de tables de cuisson
electriques ou & gaz sans decharge a I'exterieur. Ce produit ne convient pas a une utilisation au-dessous de tables de cuisson avec
extraction par le bas.
Ces instructions
d'installation
couvrent plusieurs modeles. L'apparence de votre modele peut differer legerement des illustrations
presentes dans ce manuel.
Table of Contents / Table des mati@res
BUILT-IN MICROWAVE OVEN SAFETY .................................
1
INSTALLATION
REQUIREMENTS
...........................................
2
Tools and Parts ......................................................................
2
Location Requirements ..........................................................
2
Minimum Dimensions .............................................................
2
Product Dimensions ...............................................................
4
Electrical Requirements
.........................................................
4
INSTALLATION
INSTRUCTIONS
.............................................
4
Install Spacer Strips ...............................................................
4
Install the Microwave Oven
(30" [76.2 cm] Installation Only) .............................................
5
Complete Installation .............................................................
6
ASSISTANCE .............................................................................
6
SECURITE
DU FOUR A MICRO-ONDES
ENCASTRE ..................... 7
EXIGENCES D'INSTALLATION
..........................................................
7
Outillage et composants
..................................................................
7
Exigences d'emplacement
...............................................................
8
Dimensions minimales .....................................................................
8
Dimensions du produit ...................................................................
10
Specifications
electriques ..............................................................
10
INSTRUCTIONS
D'INSTALLATION
.................................................
10
Installation des bandes d'espacement
..........................................
10
Installation du four & micro-ondes
(Installation de 30" [76,2 cm] uniquement) ..................................... 11
Achever I'installation .......................................................................
12
ASSISTANCE .....................................................................................
12
BUILT-INMICROWAVE OVEN SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10321812A
