Installation - Williams Sound SoundPlus WIR TX10 Installation Manual & User Manual

I P
NSTALLATION ROCEDURE
The TX10 Infrared Transmitter should not be installed outdoors, or where there is a lot of direct
sunlight indoors. Sunlight generates infrared interference. Certain types of high-efficiency lighting
fixtures can also generate interference at 95 kHz because they use high frequency modulation.

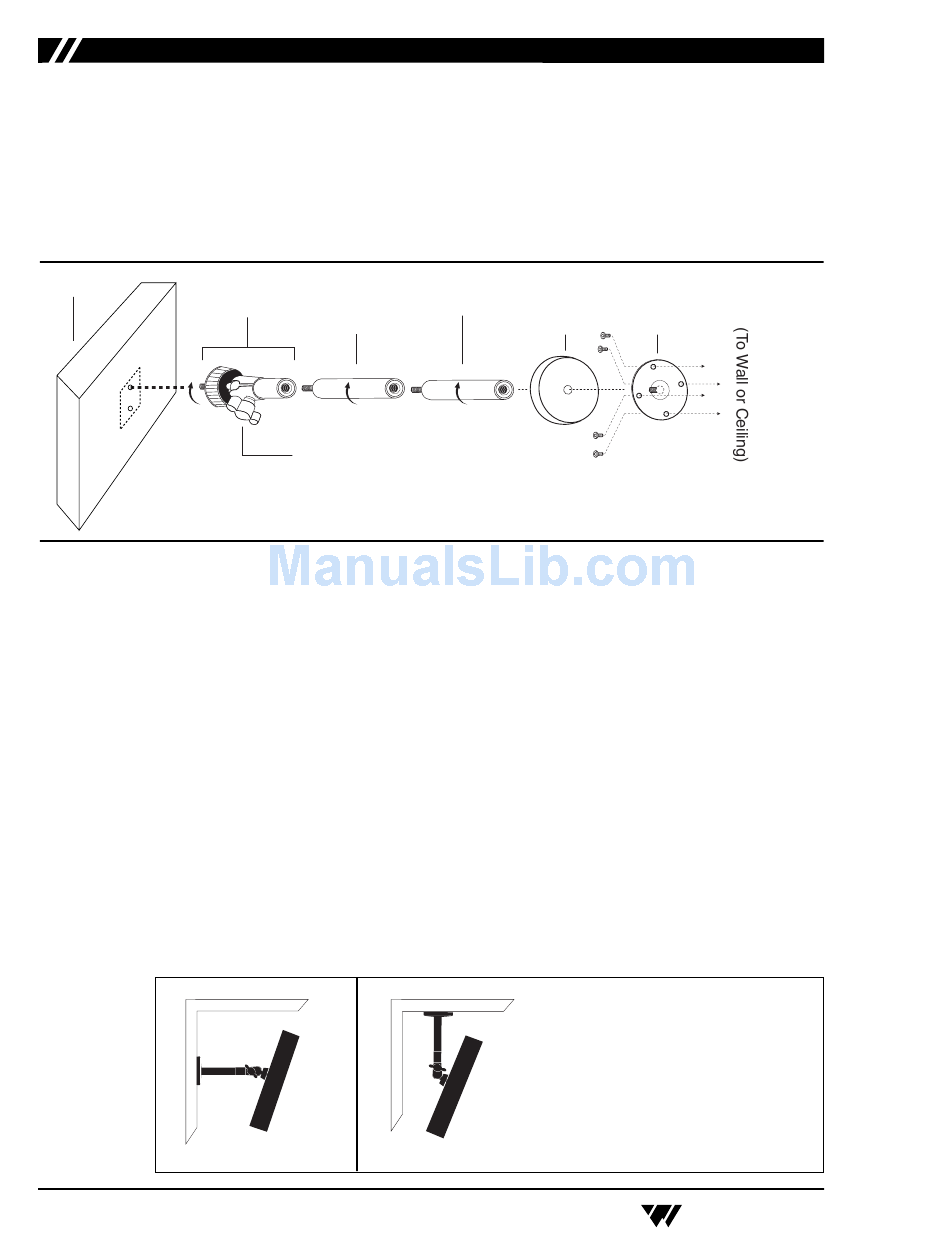

F . 6: B 024
IG RACKET MOUNTING
TX10 Emitter
Swivel Head
I S 1: M
NSTALLATION TEP
Step 1: Using the mounting plate (Figure 6) as a template, mark the hole locations on the mounting surface
where the TX10 will be installed. See Figure 7 below for optional mounting positions.
Step 2: Locate the top mounting hole in the rear of the TX10 transmitter. Gently screw the male end of the swivel
head on to the transmitter. Tighten the swivel head tension screw : turn clockwise until the connection is
secure.
Step 3: Screw the male end of the shaft into the female end of the swivel head. An additional shaft can be
added to create more distance between the wall/ceiling and Transmitter.
Step 4: Place the plate cover snugly over the mounting plate. This will hide the screws after installation.
Step 5: Screw the male end of the mounting plate into the female end of the shaft. For suspended ceilings, screw
the female end of the shaft into the male end of the T-Bar clip . The mounting bracket is now installed on to
the TX10 Transmitter.
Step 6: Position the TX10 Transmitter and BKT 024 so the mounting plate lines up with the marked holes on the
mounting surface. Fasten the mounting plate to the surface using screws and wall anchors. Mounting
the TX10 to a Suspended Ceiling with Cross Tee: Fasten the T-Bar clip on to the desired Cross Tee.
Step 7: Position the TX10 Transmitter to the desired angle: Begin by gently turning the tension screw (Figure 6)
counter clockwise to release the swivel head. Adjust the TX10 to the desired angle. When the TX10 is in
the desired position, gently turn the tension screw clockwise until the swivel head is securely in place.
F . 7: W C
IG ALL OR EILING
10
Shaft
(optional)
tension screw
TX10
OUNTING THE TO A WALL OR CEILING
M
OUNT
Shaft Plate
Cover
Mounting
Screws
Figure 7a: Mounting the TX10
on to a wall with the BKT 024.
Tip: To keep the TX10 level,
rotate the tension screw (Fig. 6)
so it rests on top of the bracket.
Figure 7b: Mounting the TX10
on to a ceiling with the BKT 024.
Mounting
Plate
