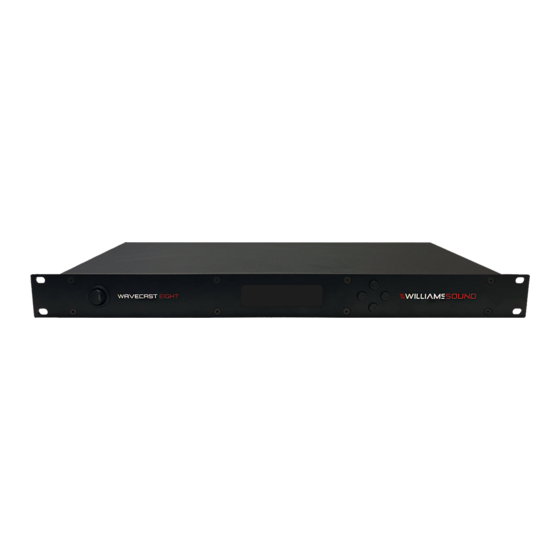

- Page 1 WaveCAST EIGHT Multichannel Assistive Listening System WF T8 USER MANUAL MAN 248A...
-
Page 2: Table Of Contents
WaveCAST EIGHT Table of Contents Safety Warnings and Instructions Recycling Instructions System Overview Quick Setup Instructions Wi-Fi Network Required Router and Network Equipment Selection Network and Power Connections Power Supply Connection Network Connection System Settings Network Configuration Adjusting Network Settings ... - Page 3 WaveCAST EIGHT Input Overload Indication Multiple WaveCAST EIGHT Units Main Info Screen Navigating the Front Panel Screen Time Out Front Panel Interface Main Menu Restoring Defaults Locking the Front Panel Channel Menu Audio Source Connections Wiring Connections Selecting an Audio Source Appropriate for Hearing Impaired Listeners ...
-
Page 4: Safety Warnings And Instructions
3. Do Not Plug in the input, output, or Ethernet connections while the power switch is switched to the ON position. 4. Do Not Touch the WaveCAST EIGHT with wet hands. Do not handle the WaveCAST EIGHT or power cord when your hands are wet or damp. -
Page 5: Recycling Instructions
Note that these instructions only apply to the WaveCAST EIGHT and do not apply to other WaveCAST systems, including the WaveCAST EIGHT D with Dante features. -
Page 6: Quick Setup Instructions
Ethernet. This network will be used to broadcast the audio. 6. Push the power button to turn the unit on. 7. Once the transmitter detects an active network is present, the WaveCAST EIGHT’s IP address will be displayed at the top of the main screen 8. -
Page 7: Wi-Fi Network Required
Router and Network Equipment Selection The WaveCAST EIGHT does not come with its own router or networking equipment. It is intended to be set up on an already existing Wi-Fi network; however, upgrades to your network equipment may be necessary depending on the performance desired from the WaveCAST EIGHT. -
Page 8: Network Configuration
When you determine this address, remember or write it down. You will need it for a later step. 2. Set the Static IP Address for the WaveCAST EIGHT via the web interface of the WaveCAST EIGHT (see "Server Settings Page"... -
Page 9: Server Description
In the web interface, this feature is under the Admin menu. Web Control Interface The WaveCAST EIGHT provides a web interface to manage the device settings. These web pages can be accessed over either a hardwired or wireless network connection with most modern internet browsers. -
Page 10: Changing Channels
Main Settings Page The Main Settings page displays all current audio settings, as well as corresponding WaveCAST EIGHT web-based controls. It is the first page to appear when logging into the website. -
Page 11: Options Page
WaveCAST EIGHT Options Page The Options page displays user preferences that can be tailored to each WaveCAST EIGHT channel. The description sets the name of the channel, which may be used to uniquely identify the device without referring to the IP address. -
Page 12: Server Settings Page
WaveCAST EIGHT Server Settings Page The Server Settings page affects settings specific to the server as a whole. The page displays network connectivity settings, as well as the server name and screen lock. Typically these are not needed after initial installation. -
Page 13: Upload Image
Upload Image An image can be uploaded that will display for any users listening using the WaveCAST EIGHT app. This image can be used to easily distinguish the content of your audio broadcast. The image must be under 128kB and be in PNG or JPG format. -
Page 14: Manual Controls And Features
Control Interface" on page 9 for how to use the arrows on each screen. Screen Time Out If no buttons are pressed on the WaveCAST EIGHT for two minutes, a screen saver will start. If there is no activity while the screen saver is playing for three minutes, the display will shut off. -
Page 15: Restoring Defaults
WaveCAST EIGHT Some settings appear as you navigate the menu, and may not be visible when the menu is not being navigated. For example, channel 1's VU meter is highlighted. Selecting this via the left or right arrow buttons will display the gain for channel 1. -
Page 16: Audio Source Connections
The WaveCAST EIGHT transmitter will accept audio sources via Phoenix style connectors. RED (IN PHASE [+]) WITH SHIELD STYLE CONNCTOR Once the WaveCAST EIGHT is connected to a router and audio is present, the audio input level LED’s will pulse with the level of the audio. TO WAVECAST EIGHT... -
Page 17: Selecting An Audio Source Appropriate For Hearing Impaired Listeners
WaveCAST EIGHT, excessive compression is not helpful to the hearing impaired and can contribute to excessive noise in the audio. The WaveCAST EIGHT audio source signal is usually connected to a mixer’s line output signal which is behind the mixer’s parametric equalizers but ahead of any equalization used for house loudspeakers. -
Page 18: Wavecast App
Connect to Wi-Fi Network The personal device will need to be connected to the same Wi-Fi network as the WaveCAST EIGHT. Instructions for connecting each device to the Wi-Fi network will differ; check the device manufacturer's instructions for how to set up a connection. -
Page 19: Troubleshooting
The full website is unavailable. • If you are only able to install a firmware update, the website stored on the WaveCAST EIGHT has been corrupted, likely by a power outage. Install the firmware for your current version (or newer) of the WaveCAST EIGHT via the firmware update page to restore the website. -
Page 20: Device Is Not Working Over The Hardwired Ethernet Network
1. In order to perform these steps you will need the IP address of the WaveCAST EIGHT and the router. You can find the IP address of the WaveCAST EIGHT via the menu on the front screen of the device. -
Page 21: Device Is Not Working Over Wi-Fi
EIGHT itself (using the front buttons and display). 2. Make sure the WaveCAST EIGHT and router are both ON. 3. Make sure the Ethernet cable going to the WaveCAST EIGHT is plugged into one of the LAN ports on the router (not the WAN port). -
Page 22: Specifications
Williams AV has no control over the conditions under which this product is used. Williams AV, therefore, disclaims all warranties not set forth above, both express and implied, with respect to the WaveCAST EIGHT, including but not limited to, any implied warranty of merchantability or fitness of use of such equipment including, without limitation, any warranty that the use of such equipment for any purpose will comply with applicable laws and regulations. -
Page 23: Regulatory Statements
WaveCAST EIGHT Regulatory Statements FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 24 WaveCAST EIGHT SAR Requirement This product meets the applicable national or international RF exposure guidance (SAR guideline) when used normally against your head or, when worn or carried, at a distance of 0.5 cm from the body. The SAR guideline includes a considerable safety margin designed to assure the safety of all persons, regardless of age and health.
- Page 25 WaveCAST EIGHT This page is intentionally blank.
- Page 26 info@williamsav.com / www.williamsav.com 800-843-3544 / INTL: +1-952-943-2252 ©2019 Williams AV, LLC MAN 248A...
