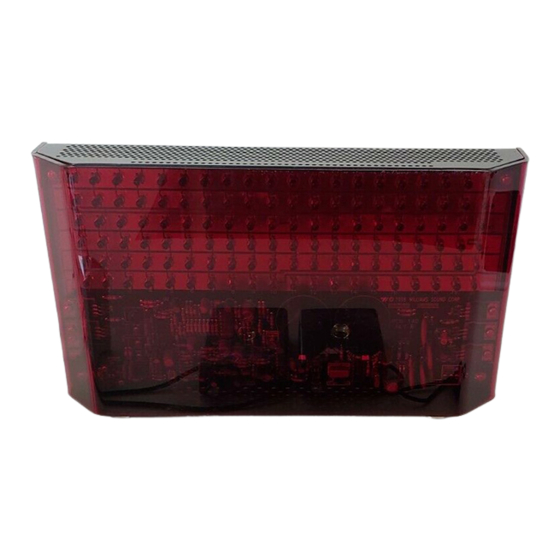

- Page 1 Installation Guide & User Manual SoundPlus ® WIR TX10 Infrared Transmitter, Selectable 95 kHz or 250 kHz Carrier Large Area Infrared Listening System Modulator-Transmitter ® Williams Sound Model WIR TX10 Helping People Hear MAN 085H...
- Page 3 ® WIR TX10 I OUND NFRARED RANSMITTER ELECTABLE Z OR ARRIER NSTALLATION UIDE AND ANUAL Contents Page YSTEM VERVIEW NSTALLATION ROCEDURE TX10 T RANSMITTER OVERAGE ATTERNS TX10 T RANSMITTER ETUP TX10 P OWER IRING UDIO OURCE ONNECTION ESTING YSTEM ONTROLS AND...
-
Page 4: System Overview
YSTEM VERVIEW The Williams Sound WIR TX10 Infrared Transmitter uses invisible infrared (IR) light waves to broadcast speech or music to wireless infrared receivers. The TX10 accepts a balanced or unbalanced line level audio input and emits an invisible infrared 95 kHz or 250 kHz frequency throughout the listening area. Infrared receivers detect the transmission and convert the light signals back into audio signals. -
Page 5: Audio Source
Line Level Output TX8 Emitter TX10 Transmitter Audio Input Power Supply Power Supply 120 VAC (US): TFP 010 120 VAC (US): TFP 010 230 VAC (CE): TFP 027 230 VAC (CE): TFP 027 Baseband Signal ® Williams Sound Helping People Hear... -
Page 6: Coverage Patterns
Important: Remember to point the transmitter towards the listening audience! Remember: opaque objects block infrared light. Thus, transmitters cannot be concealed behind opaque walls, curtains, etc. Neither should transmitters be used in areas of extreme high or low temperatures, humidity, or chemical environments. ® Williams Sound Helping People Hear... - Page 7 FIG 3b: Vertical Beam Spread Minimum receiver RANGE when operating with a TX8 or TX10 transmitter in Single Channel Mode. RX3 Receiver: 120' (37 m) RX7/8: 80' (24 m) RX4: 70' (21 m) (Range) TX10 SCREEN STAGE ® Williams Sound Helping People Hear...
- Page 8 If you’re not getting sufficient coverage with a single, properly installed TX10 Transmitter, you’ll need to add WIR TX8 Emitters to achieve full coverage of your listening area (see page 16, Using Multiple Emitters). Figures 5a and 5b illustrate how multiple emitters can be used for large room installations. ® Williams Sound Helping People Hear...
- Page 9 50%. When using an RX3 receiver, as a result, the coverage area will increase to 15,000 ft (1,393 ); the RX7/8 will increase to 9,000 ft (836 m ); and the RX4 will increase to 6,000 ft (557 m ® Williams Sound Helping People Hear...
-
Page 10: Installation
BKT 024. Tip: To keep the TX10 level, rotate the tension screw (Fig. 6) so it rests on top of the bracket. Figure 7b: Mounting the TX10 on to a ceiling with the BKT 024. ® Williams Sound Helping People Hear... -
Page 11: Minimum Wire Gauge
The TX10 must be supplied power from a Limited Power Source as defined by EN 60950:1992; Clause 2.11. Units operated from 120 VAC must use Williams Sound part number TFP 010. Units operating from 230 VAC must use Williams Sound power supply part number TFP 027/UK. - Page 12 UDIO OURCE ONNECTION The WIR TX10 accepts audio signals from balanced or unbalanced line level outputs, transmitting audio with excellent fidelity. Therefore, be sure to connect its input to the highest quality audio source your system can offer. Step 1: Determine the length of cable needed to reach from the audio source to the TX10 Transmitter.
- Page 13 Power LED, the amber Audio LED indicator, and the green Baseband LED. At normal levels, the Audio LED should flash intermittently. 9: WIR TX10 C IGURE ONTROLS...
- Page 14 UDIO NPUT The WIR TX10's input circuit is constructed with a differential amplifier, providing better performance than that available using a transformer. It is fully protected from RFI/EMI. Both balanced and unbalanced line level signals can be accommodated. The minimum acceptable level is approximately 100 mV, and the maximum level before clipping is approximately 10 V.
-
Page 15: Power Led
UDIO Flashes to indicate audio signal level. When Audio Input Adjust is set correctly and volume is normal, the LED should flash intermittently. ASEBAND Lights when audio signal is present. 11: WIR TX10 B IGURE OTTOM ANEL Audio LED Baseband LED... - Page 16 Audio In To Additional Baseband Out TX8 Transmitters Power Supply Power Supply 120 VAC (US): TFP 010 120 VAC (US): TFP 010 230 VAC (CE): TFP 027 230 VAC (CE): TFP 027 ECEIVER NSTRUCTIONS PTIONAL ® Williams Sound Helping People Hear...
-
Page 17: Receiver Management
Avoid shorting the plus and minus battery terminals together with metal objects. Battery damage and burns can result! Use only Williams Sound supplied charger and batteries! ® Williams Sound Helping People Hear... -
Page 18: Sound Through The Receivers I S Weak And Noisy
Make sure the 24 VAC power supply is working. LED ( NDICATOR RIGHT OMES Make sure an audio signal is being sent to the WIR TX10. OUND HROUGH ECEIVERS If some of the receivers work but others don’t, check for bad batteries or earphones on the receivers that aren’t working. -
Page 19: Assembly Procedure
See figure 13g. 7. Thread nut into plug assembly until it is secured. Recommended cable clamp tightening Nut Secured Into Plug Assembly torque is 2.8–3.4 N•m [25-30 in.-lb.], using a 7/16" wrench. See figure13h. ® Williams Sound Helping People Hear... -
Page 20: Warranty
If you experience difficulty with your system, call for Customer Assistance: 1-800-328-6190. If it is necessary to return the system for service, a Williams Sound representative will give you a Return Authorization Number (RA) and shipping instructions. Pack the system carefully and send it to: Williams Sound Corp. - Page 21 The TX10 must be supplied power from a Limited Power Source as defined by EN 60950:1992; Clause 2.11. Units operated from 120 VAC must use Williams Sound part number TFP 010. Units operating from 230 VAC must use Williams Sound systems part number TFP 027/UK.
- Page 22 Infrared receiver performance can be degraded if this system is used in close proximity to high-efficiency lighting equipment with solid state ballasts (i.e. high efficiency fluorescent) that operate at frequencies with harmonics near 95 kHz. 250 kHz operation should be used when this occurs. ® Williams Sound Helping People Hear...
-
Page 23: Recycling Instructions
Product Recycling for Customers in the European Union: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to a electronics recycling center; OR return the product to the factory for proper disposal. - Page 24 Williams Sound Corp. 10321 West 70th St., Eden Prairie, MN 55344-3459 U.S.A. 800-328-6190 / 952-943-2252 / FAX: 952-943-2174 © 2005, Williams Sound Corp. MAN 085H www.williamssound.com...
